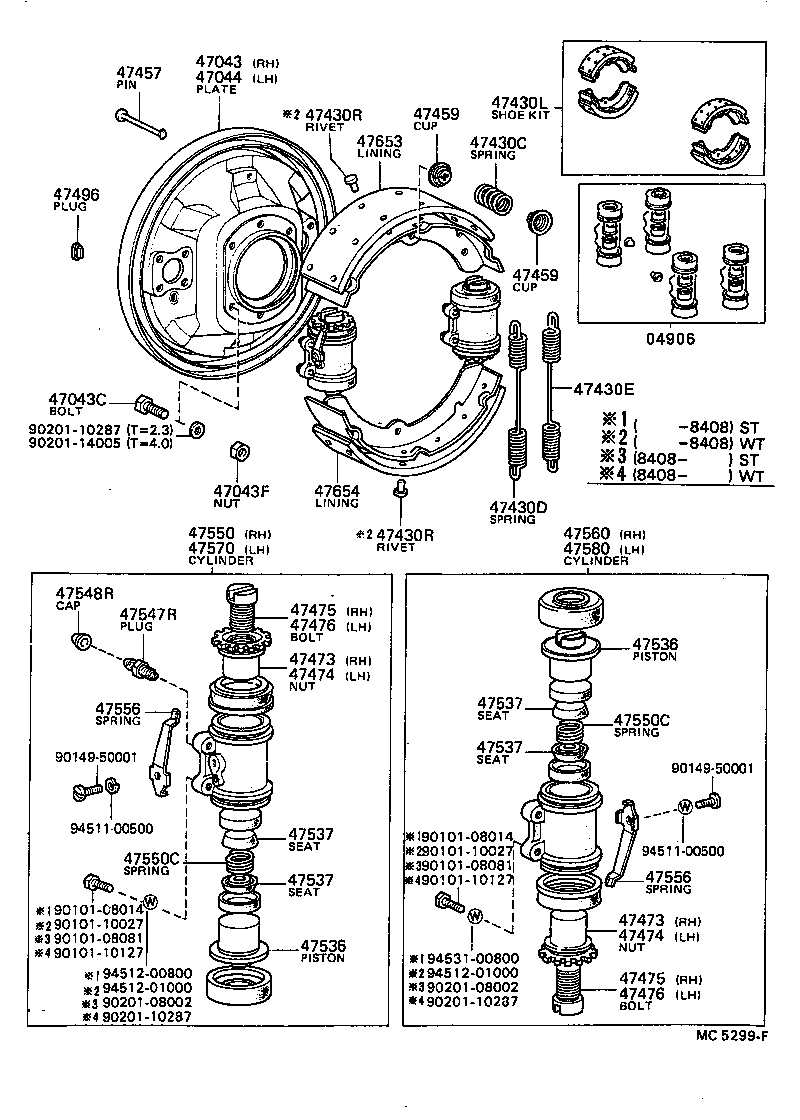

BU20R-QR1 (1977)
Toyota Dyna
(7708- )BU20..BUS ; (7708- )BU20,30..T1,T3,VSG,VSP ; (7708- )BU23,25,31,32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36040 |
BU20,JU20,RU20..ST ID=28.50 WHEEL CYLINDER |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36050 |
BU20,JU20,RU20..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90109-10024 |
BU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
BU2#,3#,HU30,JU20,RU2#,30 |
16 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36010 |
BU20,JU20,RU20..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26372 |
BU20,JU20,RU20..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26372 |
BU20,JU20,RU20..ST |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04494-36040 |
BU20,JU20,RU20..ST |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-36020 |
BU20,JU20,RU20..ST |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36071 |
BU20,JU20,RU20..ST LEFT SCREW |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36071 |
BU20,JU20,RU20..ST LEFT SCREW |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
BU20,JU20,RU20..ST RIGHT SCREW |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36071 |
BU20,JU20,RU20..ST RIGHT SCREW |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
BU20,JU20,RU20..ST LEFT SCREW |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
BU20,JU20,RU20..ST LEFT SCREW |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
BU20,JU20,RU20..ST RIGHT SCREW |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
BU20,JU20,RU20..ST RIGHT SCREW |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-36060 |
BU20,JU20,RU20..ST OD=28.50 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-36060 |
BU20,JU20,RU20..ST OD=28.50 |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BU20,JU20,RU20..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BU20,JU20,RU20..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BU20,JU20,RU20..ST |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BU20,JU20,RU20..ST |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-39235 |
BU20,JU20,RU20..ST ID=28.50 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU20,JU20,RU20..ST |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU20,JU20,RU20..ST |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BU20..BUS;BU20,30..T1,T3,VSG,VSP;BU23,25,31,32,36,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BU20..BUS;BU20,30..T1,T3,VSG,VSP;BU23,25,31,32,36,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-39085 |
BU20,JU20,RU20..ST ID=28.50 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-39075 |
BU20,JU20,RU20..ST ID=28.50 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-39075 |
BU20,JU20,RU20..ST ID=28.50 |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-36070 |
BU20,JU20,RU20..ST |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36070 |
BU20,JU20,RU20..ST |
2 | ||
| Common parts | ||||
| 90101-08014 | ||||
| 90101-08081 | ||||
| 90101-10027 | ||||
| 90101-10127 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 90201-14005 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
