BU20R-QR (1977)

Toyota Dyna

Production Aug 1977 - Feb 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )DMP,TR

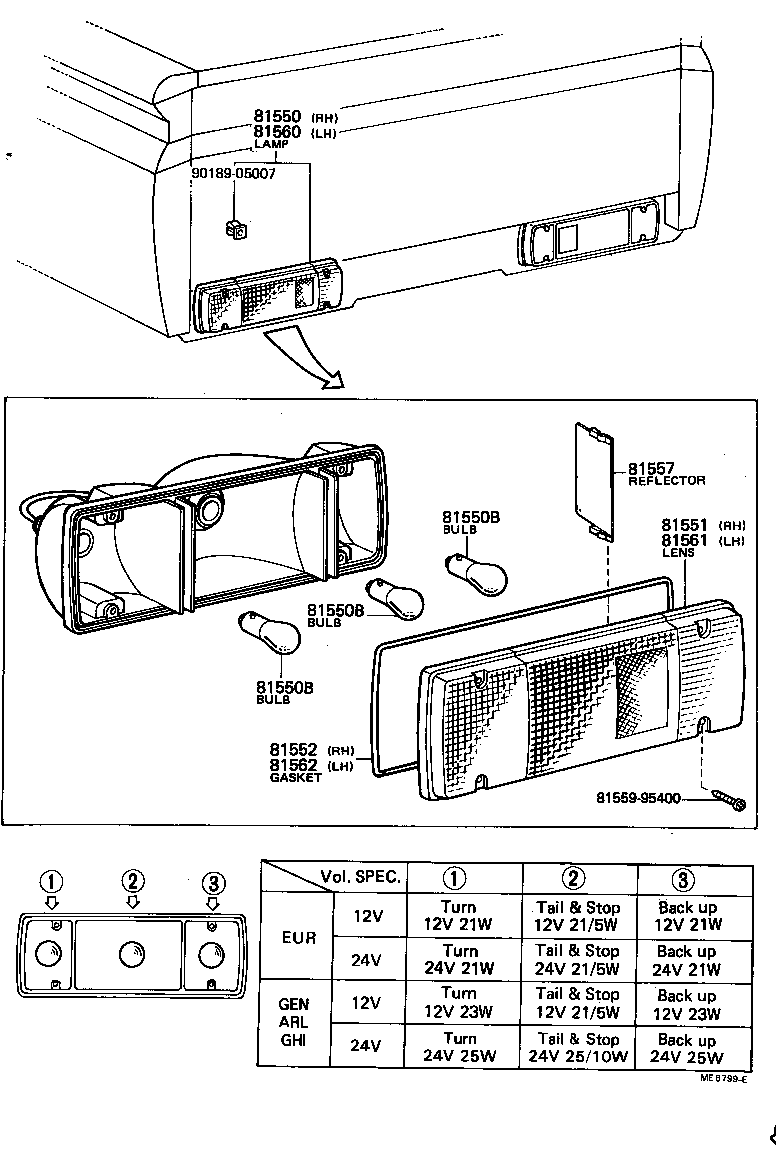

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81557 81560 81561 81562 8159995400 9018905007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39465

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)

12V

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 23W,12V 23W

 4
99132-21210

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95400

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)

AMBER-RED-CLEAR

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39435

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)

12V

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95400

BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)

AMBER-RED-CLEAR

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
Common parts
81599-95400
90189-05007
