BU20R-MRLT3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8302-8408)BU20..TB

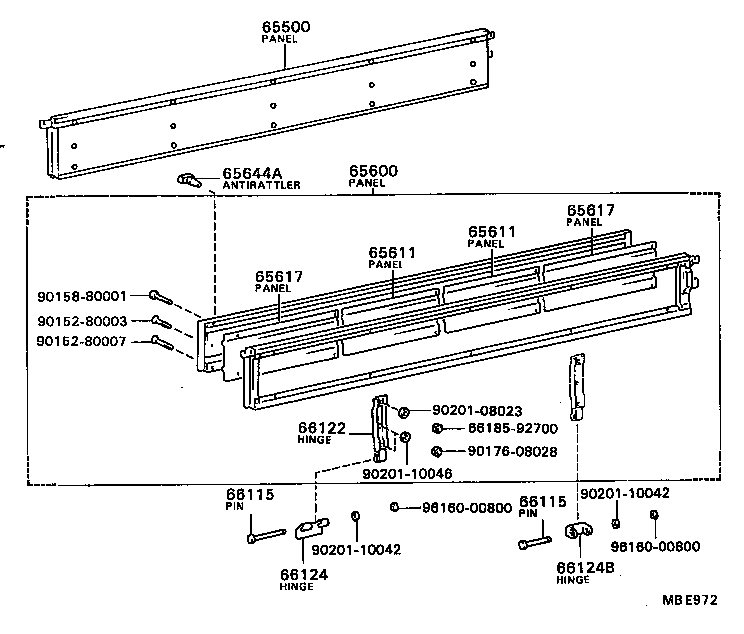

Click highlighted areas on diagram

diagram 65500 65600 65611 65611 65617 65617 65644A 66115 66115 66122 66124 66124B 6618592700 9015280003 9015280007 9015880001 9017608028 9020108023 9020110042 9020110042 9020110046 9616000800 9616000800
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-92745

BU20..TB

 2
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95409

BU20,JU20,RU20..T3

 1
65600-92745

BU20..TB

 1
65611 - PANEL, SIDE GATE
65611-92741

BU20..TB

 4
65617-92911

BU20..TB

 4
65611 - PANEL, SIDE GATE
65611-92741

BU20..TB

 4
65617-92911

BU20..TB

 4
65617 - PANEL, SIDE GATE, CORNER
65617-92911

BU20..TB

 4
65617 - PANEL, SIDE GATE, CORNER
65617-92911

BU20..TB

 4
66115 - PIN, GATE HINGE
66116-92703

BU20,3#,40,HU30,40,50,RU30,WU40..TB

L=85.5

 16
66115 - PIN, GATE HINGE
66116-92703

BU20,3#,40,HU30,40,50,RU30,WU40..TB

L=85.5

 16
66124 - HINGE, SIDE GATE, FEMALE
66111-92702

BU20,3#,40,HU30,40,50,RU30,WU40..TB

 16
66124B - HINGE, SIDE GATE, FEMALE
66111-92740

BU20..TB

 2
Common parts
66185-92700
90152-80003
90152-80007
90158-80001
90176-08028
90201-08023
90201-10042
90201-10046
96160-00800
