BU20R-MRLT3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8302-8408)BU20..TB

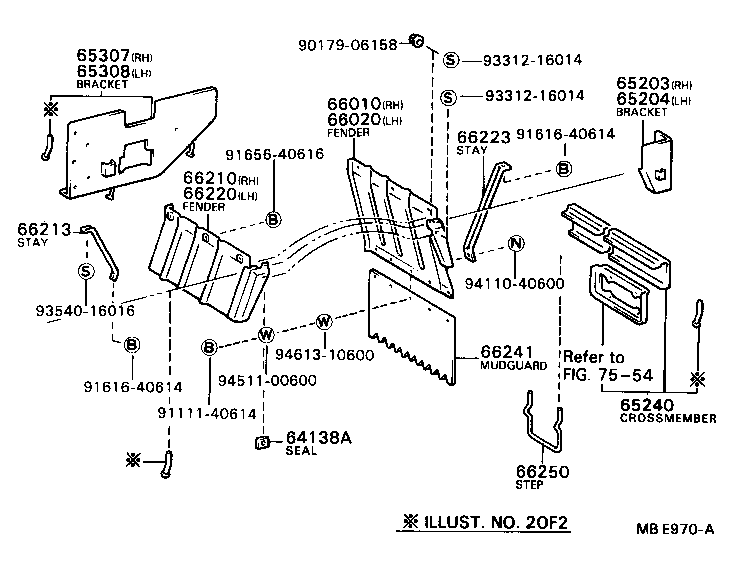

Click highlighted areas on diagram

diagram 64138A 65203 65204 65240 65307 65308 66010 66020 66210 66213 66220 66223 66241 66250 7554 9017906158 9111140614 9161640614 9161640614 9165640616 9331216014 9331216014 9354016016 9411040600 9451100600 9461310600
Part # Description Qty Price
64138A - SEAL, HEADER PANEL COVER
64138-95400

BU20..TB

 4
65203 - BRACKET SUB-ASSY, GATE BUMPER, RH
65203-92703

BU20..TB

 1
65204 - BRACKET SUB-ASSY, GATE BUMPER, LH
65204-92703

BU20..TB

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-92743

BU20..TB

 1
65307 - BRACKET SUB-ASSY, GUAD FRAME, RH
65307-92741

BU20..TB

 1
65308 - BRACKET SUB-ASSY, GUAD FRAME, LH
65308-92741

BU20..TB

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-92742

BU20..TB

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-92742

BU20..TB

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92740

BU20..TB

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92740

BU20..TB

 1
66223 - STAY, REAR FENDER REAR PLATE
66217-92743

BU20..TB

 2
66241 - MUDGUARD, REAR
66241-92250

BU20..TB

 2
66250 - STEP ASSY, REAR
66251-92740

BU20..TB

 1
Common parts
90179-06158
91111-40614
91616-40614
91656-40616
93312-16014
93540-16016
94110-40600
94511-00600
94613-10600
Linked diagrams
7554
