BU20LB-QR (1981)

Toyota Dyna

Production Apr 1981 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)BU20,JU20..HRF,SRF

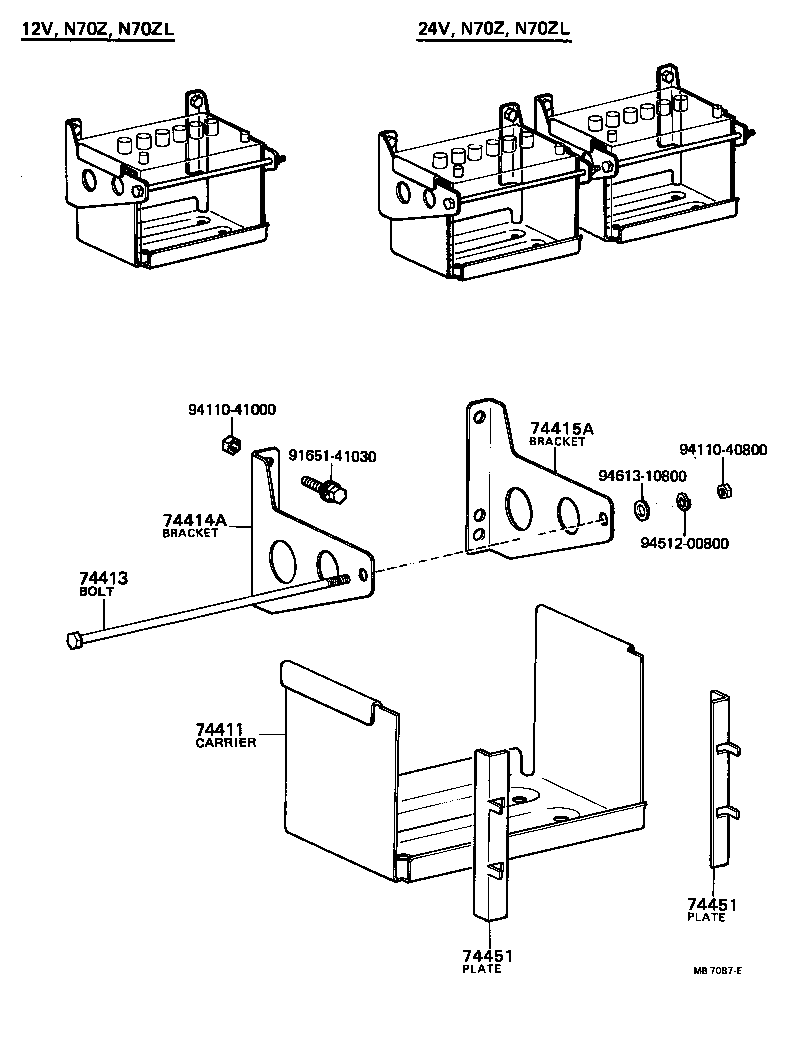

Click highlighted areas on diagram

diagram 74411 74413 74414A 74415A 74451 74451 9165141030 9411040800 9411041000 9451200800 9461310800
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
90101-08132

BU2#,30,JU20

12V,N70Z,N70ZL

 1
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36040

BU20,RU20..SRF

12V,N50Z(L),N70Z(L),N100Z

 2
74451 - PLATE, BATTERY CARRIER SUPPORT
74451-36040

BU20,RU20..SRF

12V,N50Z(L),N70Z(L),N100Z

 2
Common parts
91651-41030
94110-40800
94110-41000
94512-00800
94613-10800
