BU20L-QRBT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 74701 75021 75111 75135 75136 75137 75204 75204A 75221 9011906186 9015480009 9015480009 9161140616 9161640618 9165540818 9166140616 9354014512 9411040600 9461410800 9616000300
Part # Description Qty Price
75021 - BOX SUB-ASSY, TOOL
75210-95406

BU20,JU20,RU20..T1,T3

 1
75111 - BRACKET, FRONT LICENSE PLATE
75111-95404

BU2#,30,31,32,HU30,JU20,RU2#,30

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
65208-92704

BU20,JU20,RU20..T3

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
65208-92704

BU20,JU20,RU20..T3

 1
75137 - BRACKET, LICENSE PLATE LAMP
75137-95400

BU20,HU30,JU20,RU20,30..TS

 2
75204 - DOOR SUB-ASSY, TOOL BOX
75204-95401

BU20,JU20,RU20..T1,T3

 1
75204A - PIN, TOOL BOX DOOR HINGE
90249-05002

BU20,JU20,RU20..T1,T3

 2
75221 - BRACKET, TOOL BOX
75221-95409

BU20,RU20..T3..GEN

SCHNORKEL TYPE

 2
75221-95409

RU20..5H..IV3;BU20..T3..GEN..CBU;BU20..T3..(IV1,IV3);RU20..T3..(4F,4H,5F);RU20..5H..WT..GEN..CBU

SCHNORKEL TYPE

 2
75221-95407

BU20,JU20,RU20..T3

 2
Common parts
90119-06186
90154-80009
91611-40616
91616-40618
91655-40818
91661-40616
93540-14512
94110-40600
94614-10800
96160-00300

(7708- )TS

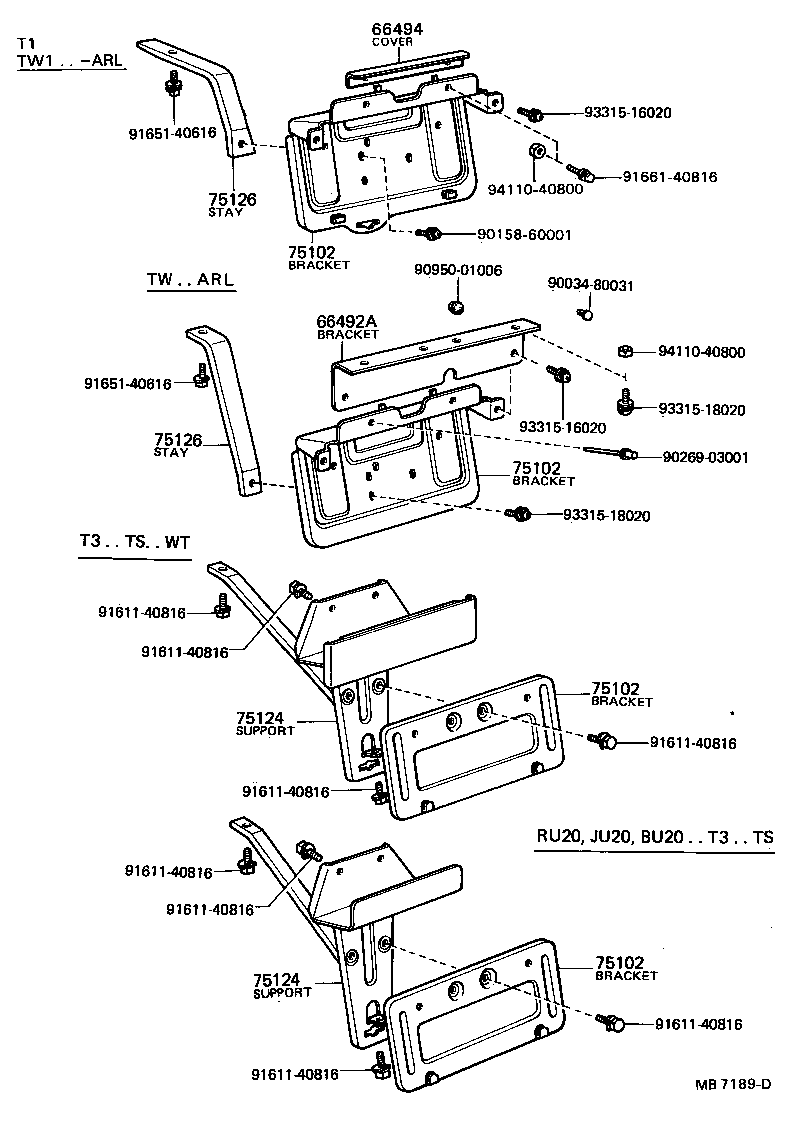

Click highlighted areas on diagram

diagram 66492A 66494 75102 75102 75102 75102 75124 75124 75126 75126 9003480031 9015860001 9026903001 9095001006 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9165140616 9165140616 9166140816 9331516020 9331516020 9331518020 9331518020 9411040800 9411040800
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75102-25020

BU20,RU20..BUS;BU20,RU20..(T2,T3,VSG,VSP)..(ARL,GEN)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75102-25020

BU20,RU20..BUS;BU20,RU20..(T2,T3,VSG,VSP)..(ARL,GEN)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75102-25020

BU20,RU20..BUS;BU20,RU20..(T2,T3,VSG,VSP)..(ARL,GEN)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

BU25,RU25;BU20,23,30,HU30,RU20,30..IV3

 1
75102-25020

BU20,RU20..BUS;BU20,RU20..(T2,T3,VSG,VSP)..(ARL,GEN)

 1
75124 - SUPPORT, REAR LICENSE BRACKET
66490-95410

BU20,RU20..WT..EUR..IV3;BU20,RU20..TS..WT..(ARL,GEN)

 1
75124 - SUPPORT, REAR LICENSE BRACKET
66490-95410

BU20,RU20..WT..EUR..IV3;BU20,RU20..TS..WT..(ARL,GEN)

 1
Common parts
90034-80031
90158-60001
90269-03001
90950-01006
91611-40816
91651-40616
91661-40816
93315-16020
93315-18020
94110-40800
