BU20L-QRBT3 (1977)
Toyota Dyna

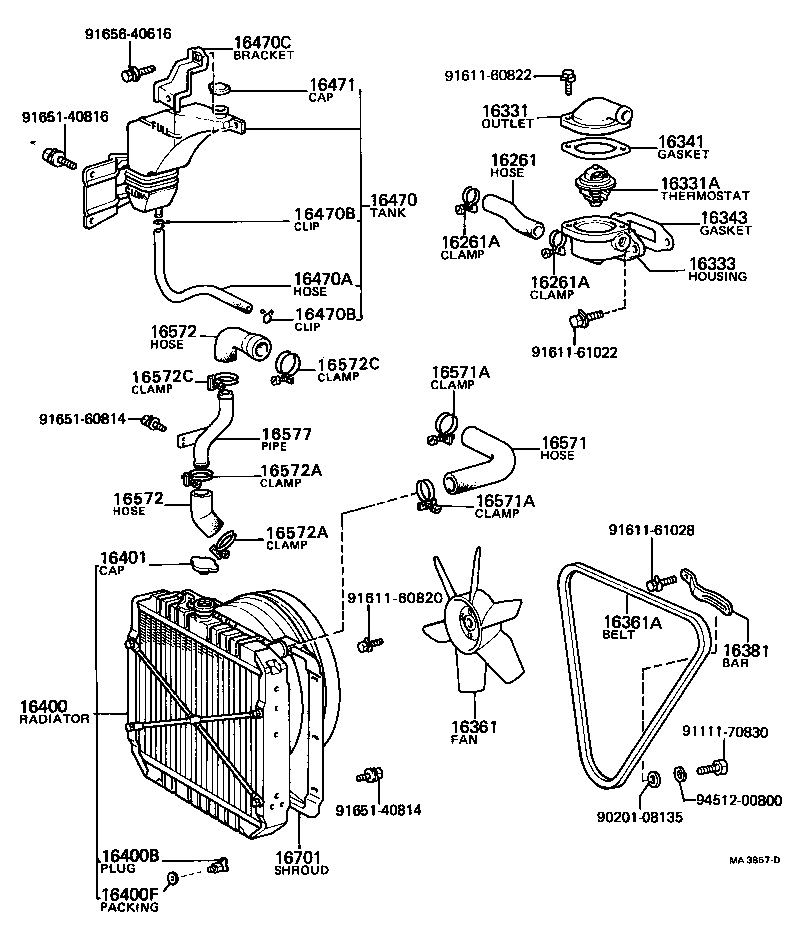

(7708-8104)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56011 |
B,2B,3B..BU2#,3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56010 |
B..BU2#,30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03039 |
B..BU2#,30 *WAX 82-95,*WAX 82-95,NIHON THERMOSTAT |
1 | ||
| 90916-03058 |
B,2B,3B..BU2#,3# *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56011 |
B..BU2#,30 |
1 | ||
| 16333-56012 |
B..BU2#,30 |
1 | ||
| 16333-56040 |
B,2B,3B..BU2#,3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51010 |
B..BU2#,30 |
1 | ||
| 16341-56010 |
B..BU2#,30 |
1 | ||
| 16341-51010 |
B..BU20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56012 |
B..BU2#,30 |
1 | ||
| 16361 - FAN | ||||
| 16361-56030 |
B..BU2#,30 6 BLADES,OD=380 |
1 | ||
| 16361-56040 |
B..BU2#,30..GEN 6 BLADES,OD=410 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99523-11176 |
B..BU2#,30 |
1 | ||
| 99323-01175 |
B..BU2#,30 |
1 | ||
| 99343-01175 |
B..BU2#,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56020 |
B..BU2#,30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56040 |
B..BU20,30 |
1 | ||
| 16400-56041 |
B..BU2#,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41020 |
B..BU2#,30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56070 |
B..BU2#,30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12005 |
B..BU2#,30 *H,L=550 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56030 |
B..BU20,25,30 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56030 |
B..BU20,25,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-56050 |
B..BU2#,30 OD=380 FAN |
1 | ||
| 16701-56060 |
B..BU2#,30..GEN OD=410 FAN |
1 | ||
| 16701-56110 |
B..BU2#,30..ARL,GEN OD=410 FAN |
1 | ||
| Common parts | ||||
| 90201-08135 | ||||
| 91111-70830 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-61022 | ||||
| 91611-61028 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 91656-40616 | ||||
| 94512-00800 | ||||

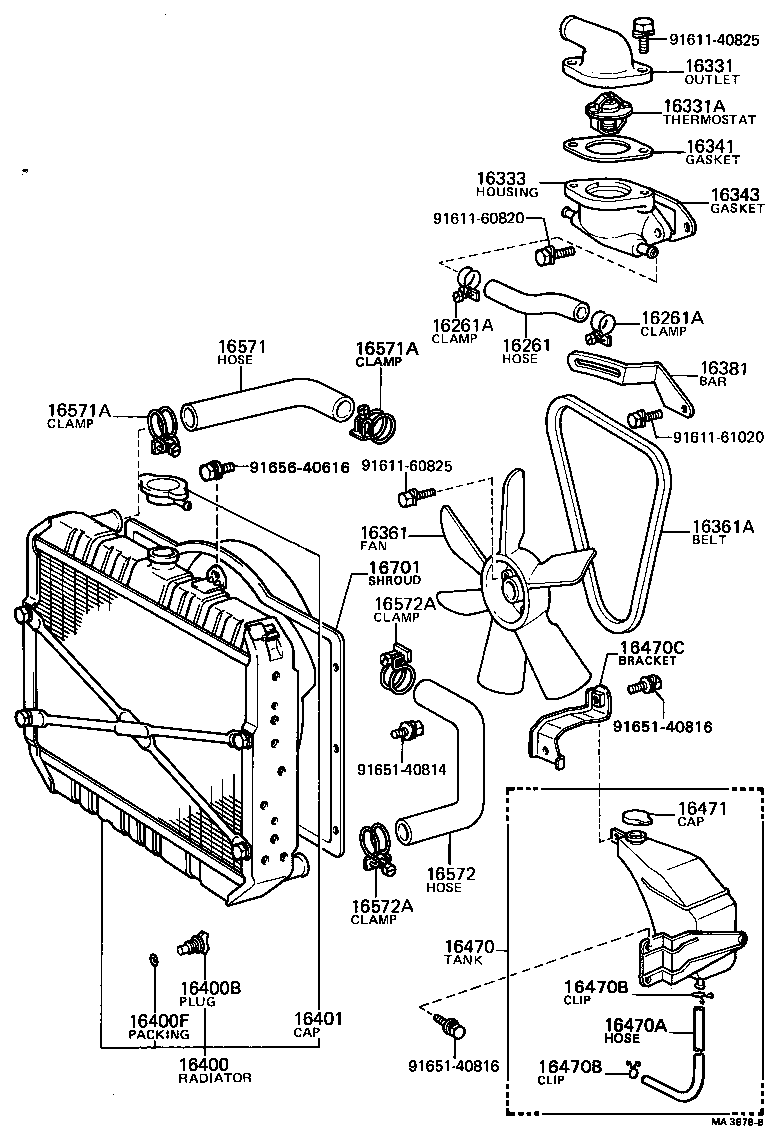

(7708-8008)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56011 |
B,2B,3B..BU2#,3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56010 |
B..BU2#,30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03039 |
B..BU2#,30 *WAX 82-95,*WAX 82-95,NIHON THERMOSTAT |
1 | ||
| 90916-03058 |
B,2B,3B..BU2#,3# *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56011 |
B..BU2#,30 |
1 | ||
| 16333-56012 |
B..BU2#,30 |
1 | ||
| 16333-56040 |
B,2B,3B..BU2#,3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51010 |
B..BU2#,30 |
1 | ||
| 16341-56010 |
B..BU2#,30 |
1 | ||
| 16341-51010 |
B..BU20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56012 |
B..BU2#,30 |
1 | ||
| 16361 - FAN | ||||
| 16361-56030 |
B..BU2#,30 6 BLADES,OD=380 |
1 | ||
| 16361-56040 |
B..BU2#,30..GEN 6 BLADES,OD=410 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99523-11176 |
B..BU2#,30 |
1 | ||
| 99323-01175 |
B..BU2#,30 |
1 | ||
| 99343-01175 |
B..BU2#,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56020 |
B..BU2#,30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56040 |
B..BU20,30 |
1 | ||
| 16400-56041 |
B..BU2#,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41020 |
B..BU2#,30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56070 |
B..BU2#,30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12005 |
B..BU2#,30 *H,L=550 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56030 |
B..BU20,25,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-56050 |
B..BU2#,30 OD=380 FAN |
1 | ||
| 16701-56060 |
B..BU2#,30..GEN OD=410 FAN |
1 | ||
| 16701-56110 |
B..BU2#,30..ARL,GEN OD=410 FAN |
1 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||

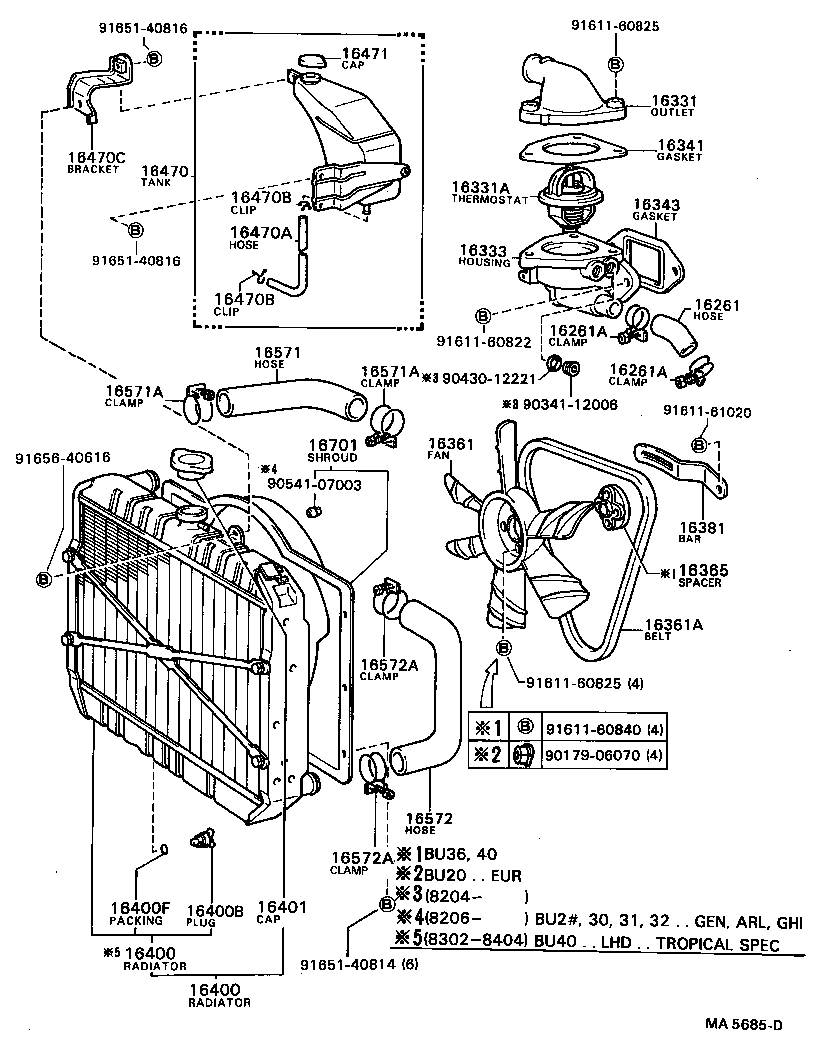

(8008- )B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56011 |
B,2B,3B..BU2#,3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56010 |
B..BU2#,30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03039 |
B..BU2#,30 *WAX 82-95,*WAX 82-95,NIHON THERMOSTAT |
1 | ||
| 90916-03058 |
B,2B,3B..BU2#,3# *WAX 82-95,*WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56011 |
B..BU2#,30 |
1 | ||
| 16333-56012 |
B..BU2#,30 |
1 | ||
| 16333-56040 |
B,2B,3B..BU2#,3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51010 |
B..BU2#,30 |
1 | ||
| 16341-56010 |
B..BU2#,30 |
1 | ||
| 16341-51010 |
B..BU20,30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56012 |
B..BU2#,30 |
1 | ||
| 16361 - FAN | ||||
| 16361-56030 |
B..BU2#,30 6 BLADES,OD=380 |
1 | ||
| 16361-56040 |
B..BU2#,30..GEN 6 BLADES,OD=410 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99523-11176 |
B..BU2#,30 |
1 | ||
| 99323-01175 |
B..BU2#,30 |
1 | ||
| 99343-01175 |
B..BU2#,30 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56020 |
B..BU2#,30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56040 |
B..BU20,30 |
1 | ||
| 16400-56041 |
B..BU2#,30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-56040 |
B..BU20,30 |
1 | ||
| 16400-56041 |
B..BU2#,30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41020 |
B..BU2#,30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56070 |
B..BU2#,30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12005 |
B..BU2#,30 *H,L=550 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,2B,3B..BU2#,3#,40 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
B,2B,3B..BU2#,3#,40 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56020 |
B,2B,3B..BU2#,30,31,32 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56030 |
B..BU20,25,30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
B,2B,3B..BU2#,3#,40 WATER PUMP SIDE |
1 | ||
| 90460-50016 |
B,2B,3B..BU2#,3#,40 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-56050 |
B..BU2#,30 OD=380 FAN |
1 | ||
| 16701-56060 |
B..BU2#,30..GEN OD=410 FAN |
1 | ||
| 16701-56110 |
B..BU2#,30..ARL,GEN OD=410 FAN |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90341-12006 | ||||
| 90430-12221 | ||||
| 90541-07003 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
