BU20L-QRBT (1977)
Toyota Dyna
(7708- )BU2#,3#,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18025 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18025 |
BU2#,30,HU30,JU20,RU2#,30 |
4 | ||
| 48110K - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36041 |
BU20,30,HU30,RU20,30 |
2 | ||
| 04481-36040 |
BU20,30,HU30,JU20,RU20,30 |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
BU2#,RU2# |
2 | ||
| 48191-35020 |
BU2#,30,HU30,JU20,RU2#,30 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-36030 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-36070 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-36070 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48413-36020 |
BU20,23,30,31,32,HU30,JU20,RU20,30 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48413-36020 |
BU20,23,30,31,32,HU30,JU20,RU20,30 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48413-36020 |
BU20,23,30,31,32,HU30,JU20,RU20,30 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48413-36020 |
BU20,23,30,31,32,HU30,JU20,RU20,30 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-36050 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-36050 |
BU2#,30,31,32,HU30,JU20,RU2#,30 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90118-16067 |
BU2#,30,JU20,RU2#,30 L=105 |
4 | ||
| 90118-16102 |
BU2#,30,RU2#,30..WT..GEN W/8-LEAF SPRING,L=115 |
4 | ||
| 90118-16102 |
BU2#,30,JU20,RU2#,30 W/DISTANCE PLATE,L=115 |
2 | ||
| 90118-16165 |
BU2#,RU2#..GEN L=125,THAILAND SPEC |
4 | ||
| 90118-16165 |
BU2#,30,RU2#,30..WT..GEN W/8-LEAF & PLATE,L=125 |
2 | ||
| 90118-16146 |
BU2#,RU2#..GEN W/PLATE,L=130,THAILAND SPEC |
1 | ||
| 90118-16146 |
BU20,RU20..(TR,V)..GEN W/10-LEAF & PLATE,L=130 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39225 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 48511-39225 |
BU2#,30,HU30,RU2#,30..ARL,GEN |
1 | ||
| 48511-39325 |
BU20,RU20,30..WT..GEN W/10-LEAF SPRING |
1 | ||
| 48511-39225 |
BU20,31,RU20,30..ARL,GEN |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16007 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39225 |
BU2#,30,HU30,RU2#,30..ARL,GEN |
1 | ||
| 48511-39225 |
BU2#,30,HU30,JU20,RU2#,30 |
1 | ||
| 48511-39325 |
BU20,RU20,30..WT..GEN W/10-LEAF SPRING |
1 | ||
| 48511-39225 |
BU20,31,RU20,30..ARL,GEN |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-36030 |
BU2#,3#,HU30,JU20,RU2#,30 |
2 | ||
| Common parts | ||||
| 90101-14003 | ||||
| 90170-16139 | ||||
| 91611-41020 | ||||
| 93220-18030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94115-41600 | ||||
| 94115-51400 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
(7708-8008)BU2#,30,JU20,RU2#,30 ; (8008-8104)BU20,30,RU20,30..ARL,EUR ; (8104-8408)
(8308-8408)RU25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

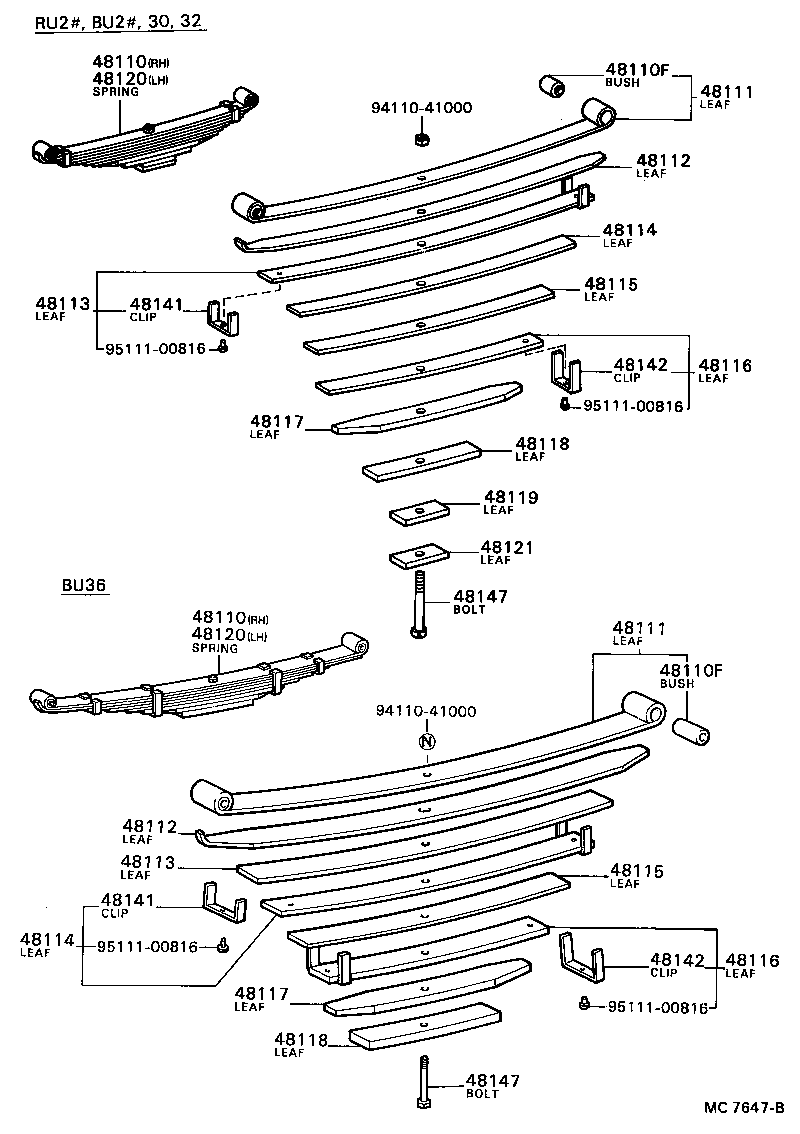

| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
(7708-8104)HU30 ; (7904-8008)BU30..RHD ; (8008-8104)BU2#,30,RU2#,30..WT..GEN ; (810
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48118-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48118-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48118-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48118-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
(7904-8008)BU20..RHD..TS ; (8008-8104)BU2#,RU2#..GEN ; (8104- )BU20,RU20..TR,V..
30..T2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48118-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48118-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48118-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48118-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48119 - LEAF, FRONT SPRING, NO.9 | ||||
| 48119-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48119-36441 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48119-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48119-36220 |
BU20,RU20..(TR,V)..GEN |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
(8104- )GHI ; (8104- )BU20,RU20,30..T3..WT..GEN ; (8207-8408)RU20..EUR ; (830
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36440 |
BU2#,RU2#..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36300 |
BU2#,RU2#..LHD..GEN |
1 | ||
| 48110-36441 |
BU20,25,RU2#..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36460 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48110-36460 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16002 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48101-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48101-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48101-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48101-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48101-36300 |
BU20,RU20..(TR,V)..GEN RH |
1 | ||
| 48101-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48101-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48101-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48112-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48112-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48112-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48112-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48112-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48112-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48112-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-36230 |
BU2#,RU2#..LHD..GEN LH |
1 | ||
| 48102-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48102-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48102-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48102-36230 |
BU20,RU20..LHD..(TR,V)..GEN LH |
1 | ||
| 48102-36300 |
BU2#,RU2#..LHD..GEN RH |
1 | ||
| 48102-36300 |
BU20,RU20..LHD..(TR,V)..GEN RH |
1 | ||
| 48102-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48102-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48114-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48114-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48114-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48114-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48115-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48115-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48115-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48115-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
2 | ||
| 48103-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48103-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48103-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48116-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48103-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48117-36150 |
BU2#,JU20,RU2# T=6 |
2 | ||
| 48117-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48117-36230 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48117-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48117-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48118-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48118-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48118-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48118-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48118 - LEAF, FRONT SPRING, NO.8 | ||||
| 48118-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN LH,8-LEAF SPRING |
1 | ||
| 48118-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48118-36440 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48118-36440 |
BU2#,RU2#..LHD..WT..GEN RH,8-LEAF SPRING |
1 | ||
| 48118-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48119 - LEAF, FRONT SPRING, NO.9 | ||||
| 48119-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48119-36441 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48119-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48119-36220 |
BU20,RU20..(TR,V)..GEN |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-36450 |
BU2#,RU2#..LHD..GEN 9-LEAF SPRING |
1 | ||
| 48110-36260 |
BU2#,RU2#..LHD..GEN 7-LEAF SPRING |
1 | ||
| 48110-36150 |
BU2#,JU20,RU2# NO.7 LEAF T=6 |
1 | ||
| 48110-36240 |
BU2#,30,RU2#,30..LHD..WT..GEN 8-LEAF SPRING |
1 | ||
| 48110-36470 |
BU20,RU20,30..LHD..WT..GEN 10-LEAF SPRING |
1 | ||
| 48110-36450 |
BU20,RU20..LHD..(TR,V)..GEN |
1 | ||
| 48121 - LEAF, FRONT SPRING, NO.10 | ||||
| 48121-36441 |
BU20,25,RU2#..LHD..WT..GEN RH,10-LEAF SPRING |
1 | ||
| 48121-36470 |
BU20,RU20,30..LHD..WT..GEN LH,10-LEAF SPRING |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48241-36070 |
BU2#,JU20,RU2# |
4 | ||
| 48241-25040 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
4 | ||
| 48241-36070 |
BU2#,RU2#..ARL,GEN |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48242-36070 |
BU2#,JU20,RU2# |
2 | ||
| 48242-25100 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48242-36070 |
BU2#,RU2#..ARL,GEN |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36150 |
BU2#,30,JU20,RU2#,30 |
2 | ||
| 48147-36220 |
BU2#,RU2#..GEN |
2 | ||
| 48147-36150 |
BU20,RU20..ARL,GEN |
2 | ||
| 48147-36170 |
BU2#,30,RU2#,30..WT..GEN 8-LEAF SPRING |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
