YS120L-SEMGS (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

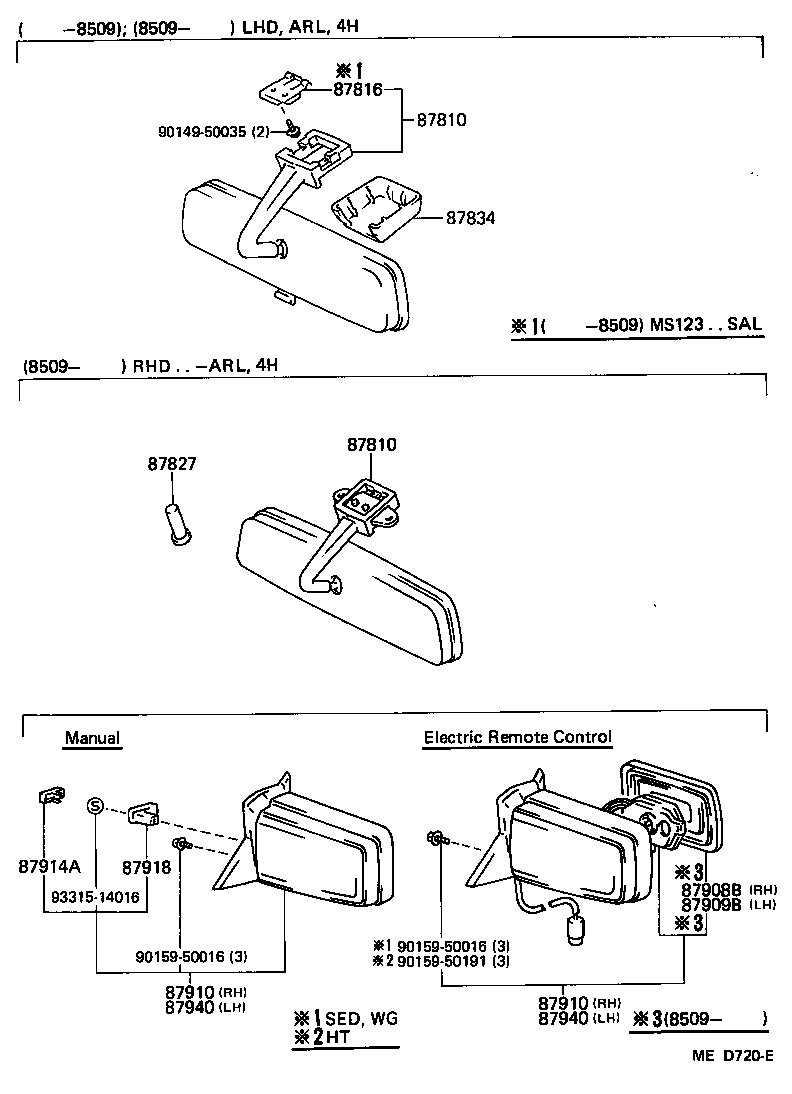

Click highlighted areas on diagram

diagram 87810 87810 87816 87827 87834 87908B 87909B 87910 87910 87914A 87918 87940 87940 9014950035 9015950016 9015950016 9015950191 9331514016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-3019022

LS120,MS12#,YS120..ARL,GEN,SAA

DEEP MAROON,RED/MAROON,TRIM3#

 1
87810-3019025

LS120,MS12#,YS120..ARL,GEN,SAA

BEIGE,BEIGE,TRIM4#

 1
87810-3019024

LS120,MS12#,YS120..ARL,GEN,SAA

BLUE,BLUE,TRIM8#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-3019022

LS120,MS12#,YS120..ARL,GEN,SAA

DEEP MAROON,RED/MAROON,TRIM3#

 1
87810-3019025

LS120,MS12#,YS120..ARL,GEN,SAA

BEIGE,BEIGE,TRIM4#

 1
87810-3019024

LS120,MS12#,YS120..ARL,GEN,SAA

BLUE,BLUE,TRIM8#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-3001004

LS120,MS12#,YS120..ROY,SAL

BLUE,BLUE,TRIM8#

 1
87834-3001005

LS120,MS12#,YS120..ROY,SAL

BEIGE,BEIGE,TRIM3#,4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-80089

LS120,MS12#,YS120..LHD..(ROY,SAL)

W/ELECTRIC *RCM

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-80089

LS120,MS12#,YS120..LHD..(ROY,SAL)

W/ELECTRIC *RCM

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-80089

LS120,MS12#,YS120..LHD..(ROY,SAL)

W/ELECTRIC *RCM

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-80089

LS120,MS12#,YS120..LHD..(ROY,SAL)

W/ELECTRIC *RCM

 1
Common parts
90149-50035
90159-50016
90159-50191
93315-14016
