YS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8509)

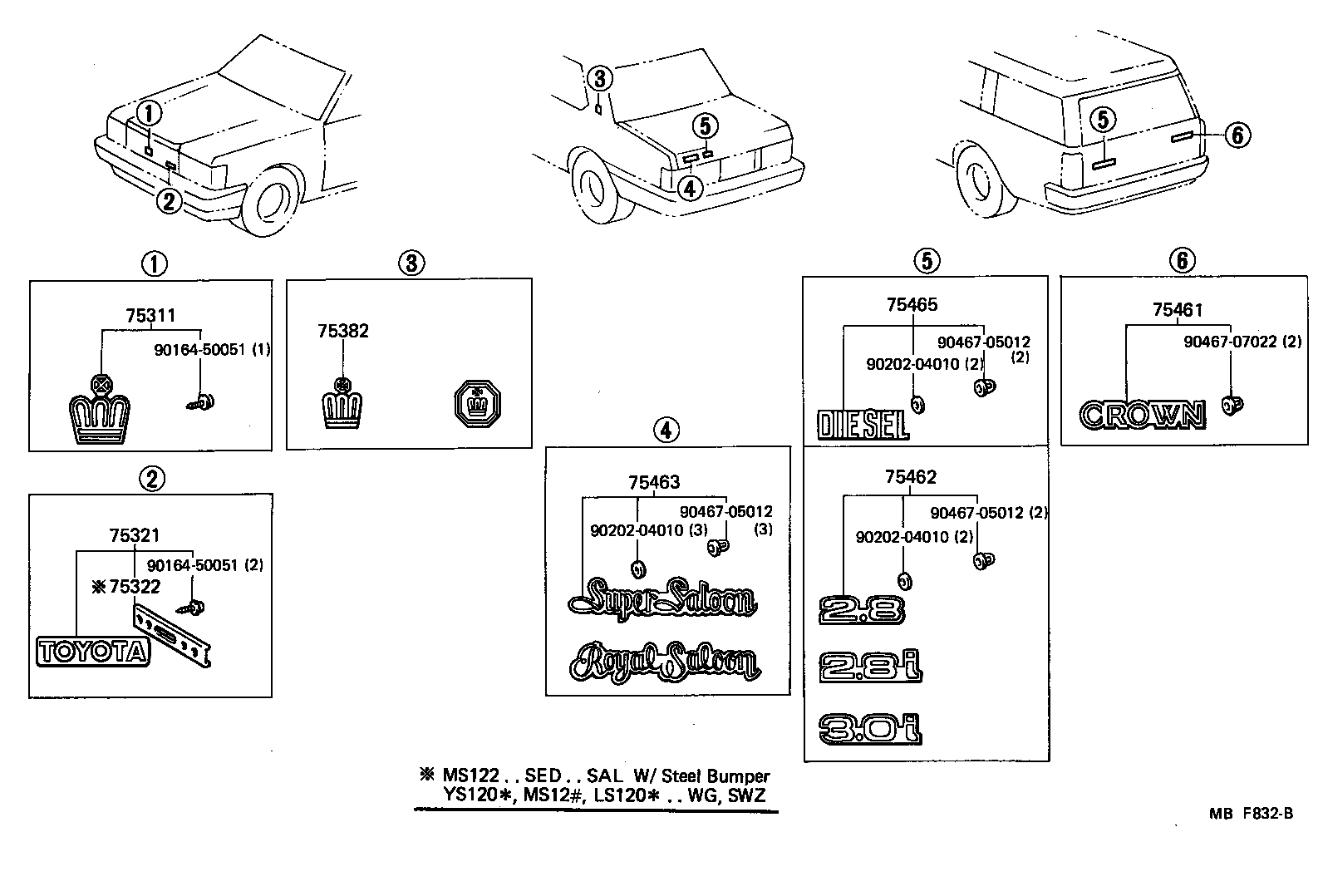

Click highlighted areas on diagram

diagram 75311 75321 75322 75382 75461 75462 75463 75465 9016450051 9016450051 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9046707022
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30180

LS120,MS12#,YS120

 1
75311-39155

LS120,MS12#,YS120

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-39245

MS122..WG;LS120,MS123,YS120..(SAL,STD)..(GEN,SWZ)

TOYOTA

 1
75321-30420

LS120,MS123,YS120;MS122..(SED,WG)..(DLX,SAL)

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-30100

MS122..WG;LS120,MS123,YS120..(SAL,STD)..(GEN,SWZ)

 1
75382 - EMBLEM, QUARTER PANEL OR SIDE PANEL
75371-30080

LS120,MS122,YS120..DLX,STD

 2
Common parts
90164-50051
90202-04010
90467-05012
90467-07022

(8509- )

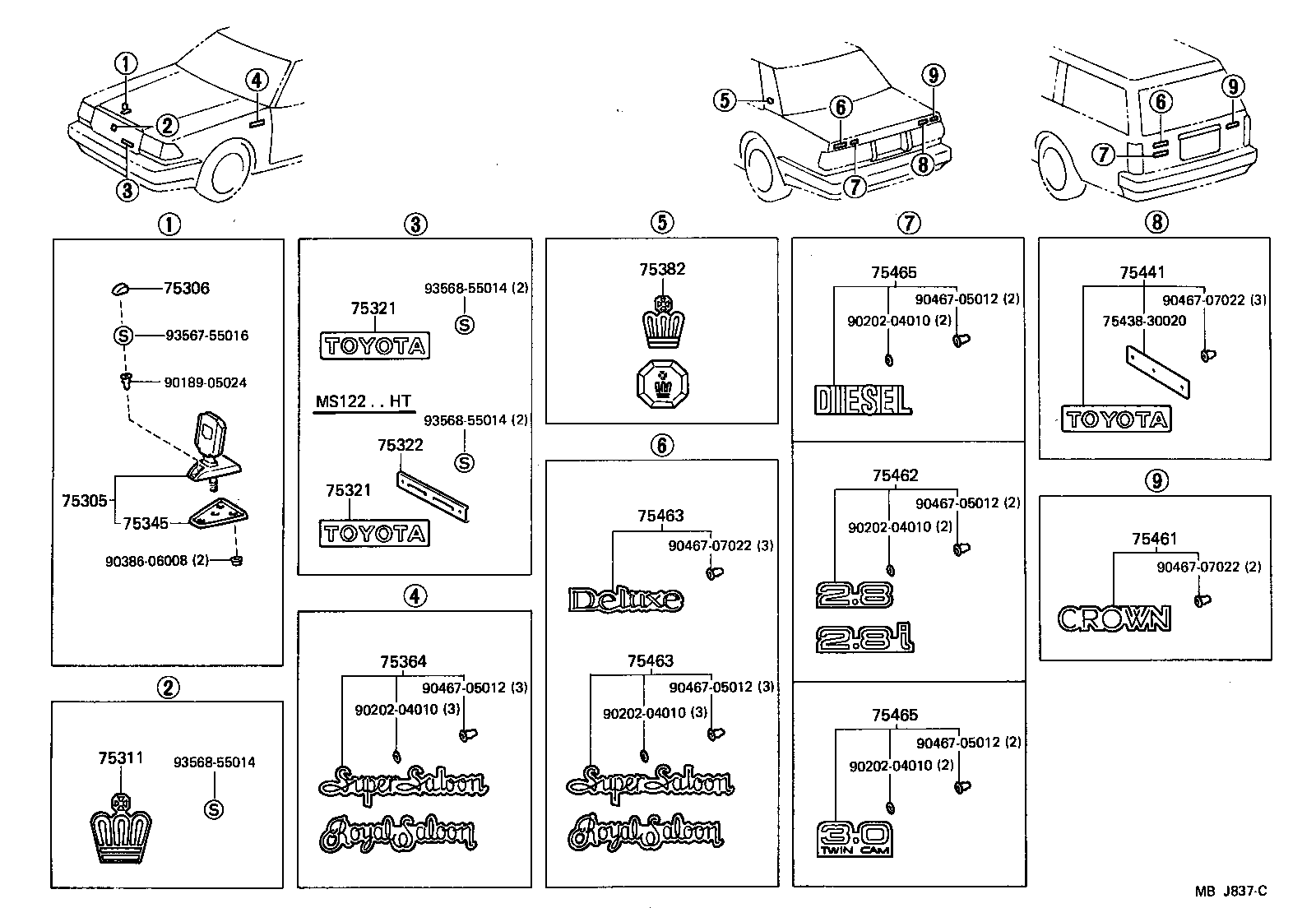

Click highlighted areas on diagram

diagram 75305 75306 75311 75321 75321 75322 75345 75364 75382 7543830020 75441 75461 75462 75463 75463 75465 75465 9018905024 9020204010 9020204010 9020204010 9020204010 9020204010 9038606008 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9046707022 9046707022 9356755016 9356855014 9356855014 9356855014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30180

LS120,MS12#,YS120

 1
75311-39155

LS120,MS12#,YS120

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-39245

MS122..WG;LS120,MS123,YS120..(SAL,STD)..(GEN,SWZ)

TOYOTA

 1
75321-30420

LS120,MS123,YS120;MS122..(SED,WG)..(DLX,SAL)

TOYOTA

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-39245

MS122..WG;LS120,MS123,YS120..(SAL,STD)..(GEN,SWZ)

TOYOTA

 1
75321-30420

LS120,MS123,YS120;MS122..(SED,WG)..(DLX,SAL)

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-30100

MS122..WG;LS120,MS123,YS120..(SAL,STD)..(GEN,SWZ)

 1
75382 - EMBLEM, QUARTER PANEL OR SIDE PANEL
75371-30080

LS120,MS122,YS120..DLX,STD

 2
Common parts
75438-30020
90189-05024
90202-04010
90386-06008
90467-05012
90467-07022
93567-55016
93568-55014
