YS120L-SEJBS (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
3Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )YS120

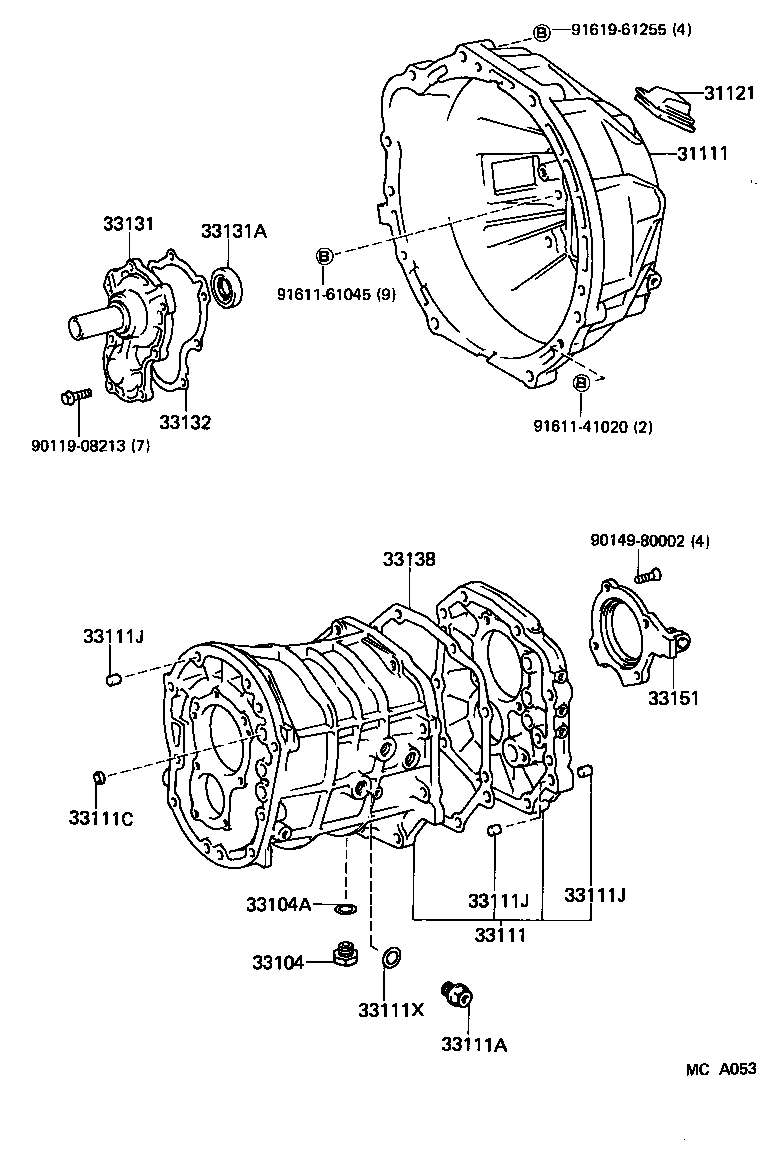

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30190 |
YS120 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
YS120 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LS120,MS12#,YS120..MTM |
1 | ||
| 90430-18007 |
YS120;LS120..4F,5F |
1 | ||
| 90430-18008 |
LS120,MS122,YS120..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-22021 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| 33101-22030 |
LS120,YS120..LHD..4H |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LS120,MS122,123,YS120..MTM OD=14 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LS120,MS122,123,YS120..MTM L=16,OD=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LS120,MS122,123,YS120..MTM L=16,OD=12 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LS120,MS122,123,YS120..MTM L=16,OD=12 |
6 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
LS120,MS12#,YS120..MTM |
1 | ||
| 90430-18008 |
LS120,MS122,YS120..MTM |
1 | ||
| 90430-18007 |
YS120;LS120..4F,5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22020 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LS120,MS122,123,YS120..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-22010 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33142-22010 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
LS120,MS122,YS120..LHD..4H |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90149-80002 | ||||
| 91611-41020 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
