RS80L-YB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 5R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)RS80..LHD

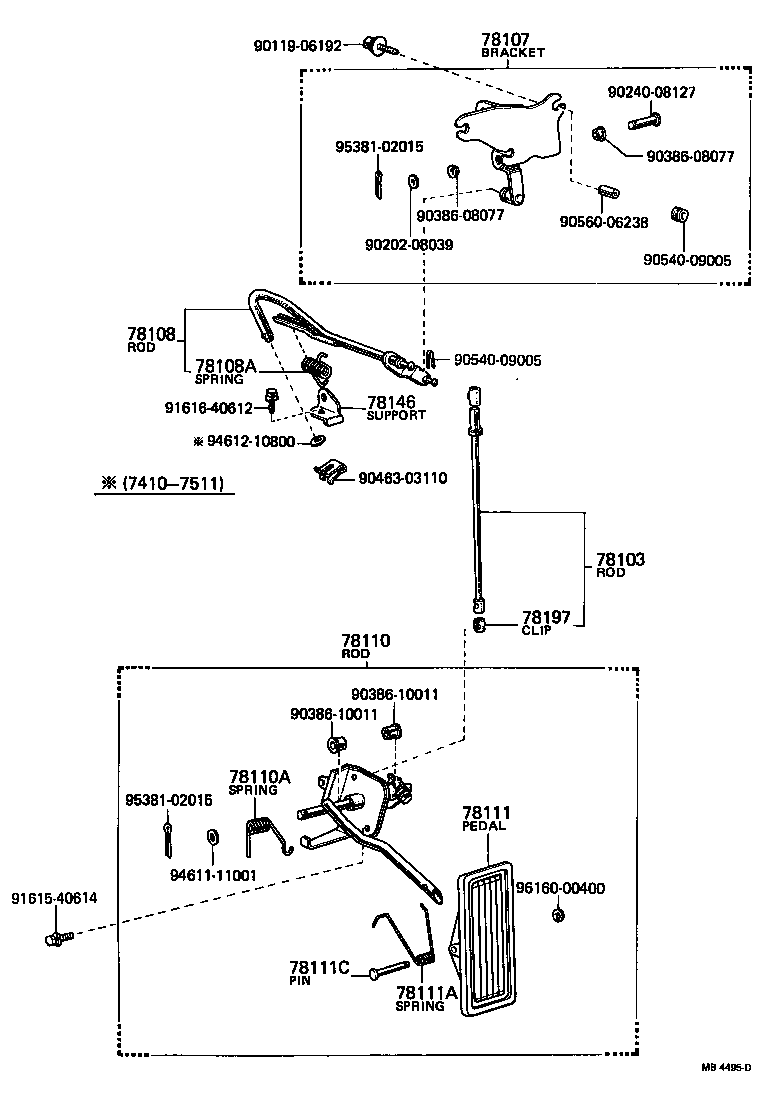

Click highlighted areas on diagram

diagram 78103 78107 78108 78108A 78110 78110A 78111 78111A 78111C 78146 78197 9011906192 9020208039 9024008127 9038608077 9038608077 9038610011 9038610011 9046303110 9054009005 9054009005 9056006238 9161540614 9161640612 9461111001 9461210800 9538102015 9538102015 9616000400
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-30190

RS80..LHD

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78018-30060

RS80..LHD

 1
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78106-30140

RS80..LHD

 1
78108A - SPRING, TORSION (FOR ACCELERATOR CONNECTING ROD, NO.1)
90508-16441

RS80..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30150

RS80..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23445

MS8#,95,RS80..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-30070

MS8#,95,RS80..LHD

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16002

MS8#,95,RS80..LHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MS8#,95,RS80..LHD

 1
78146 - SUPPORT, ACCELERATOR TORQUE ROD
78187-30030

RS80..LHD

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

MS8#,95,RS80

 2
Common parts
90119-06192
90202-08039
90240-08127
90386-08077
90386-10011
90463-03110
90540-09005
90560-06238
91615-40614
91616-40612
94611-11001
94612-10800
95381-02015
96160-00400
