RS110L-SEJBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine 5R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED

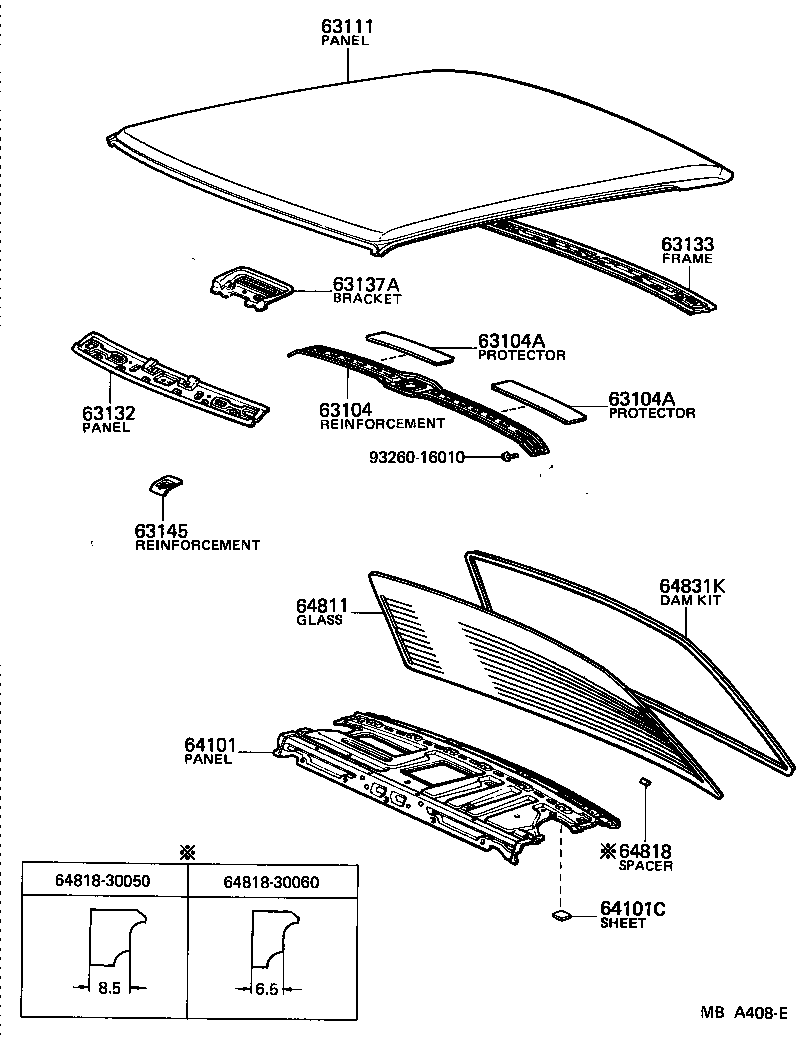

Click highlighted areas on diagram

diagram 63104 63104A 63104A 63111 63132 63133 63137A 63145 64101 64101C 64811 64818 6481830050 6481830060 64831K 9326016010
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-30030

LS110,MS11#,RS110..SED

 1
63111 - PANEL, ROOF
63111-30110

LS110,MS11#,RS110..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-30090

LS110,MS11#,RS110

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-30080

LS110,MS11#,RS110..SED

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-30020

LS110,MS11#,RS110

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30060

LS110,MS11#,RS110..SED..(BTP,DLX,SAL)..(EUR,GEN)

 1
64101C - SHEET, SILENCER
61824-30010

LS110,MS11#,RS110..SED

40X40

 4
61825-30010

LS110,MS11#,RS110..SED

70X70

 2
64811 - GLASS, BACK WINDOW
64811-30300

MS112..ROY..GEN..EFI;RS110..(BTP,DLX)..GEN;LS110,MS11#..SED..GEN..(CBR,DSL)

*TT,T=4.0

 1
64801-30150

LS110,MS11#,RS110..SED..BTP

*EHT,T=4.0

 1
64811-30300

MS112..SED..(DLX,SAL)..CBR;LS110,RS110..(BTP,DLX)..GEN

*TT,T=4.0

 1
64811-30310

MS111..SED..RHD..4F..DLX;LS110,MS11#,RS110..SED..BTP..GEN

*TEM,T=4.0

 1
64801-30140

LS110,MS11#,RS110..SED

*EHTT,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-30060

LS110,MS112,RS110..SED

T=6.5

 2
64818-30050

LS110,MS11#,RS110..SED

T=8.5

 2
64831K - DAM KIT, BACK WINDOW GLASS
04562-14010

LS110,MS11#,RS110..SED

 1
Common parts
64818-30050
64818-30060
93260-16010
