MS95R-HD (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7908)2D

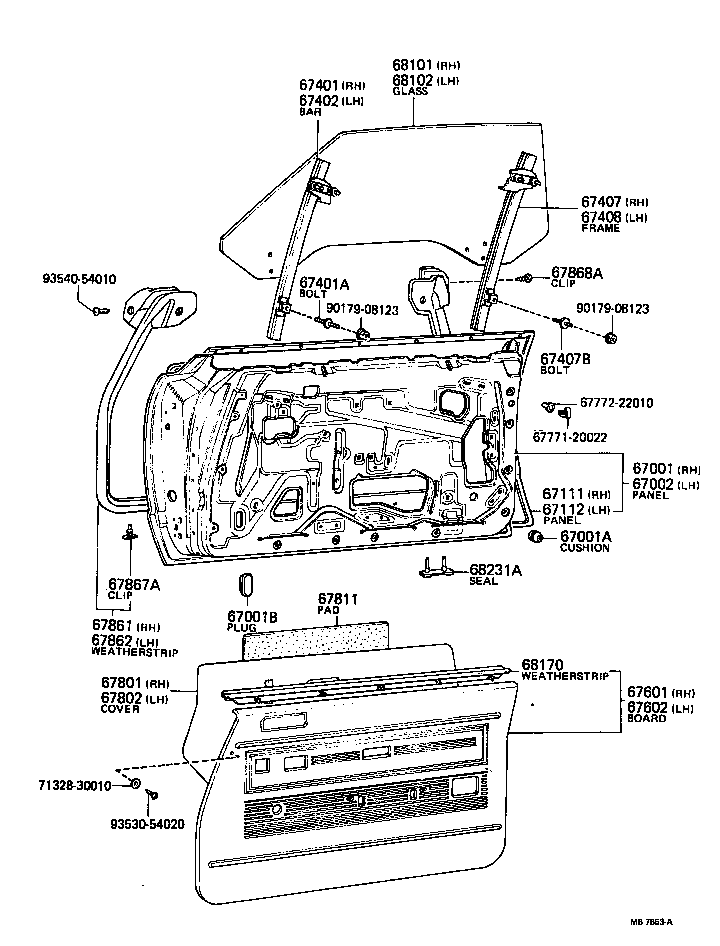

Click highlighted areas on diagram

diagram 67001 67001A 67001B 67002 67111 67112 67401 67401A 67402 67407 67407B 67408 67601 67602 6777120022 6777222010 67801 67802 67811 67861 67862 67867A 67868A 68101 68102 68170 68231A 7132830010 9017908123 9017908123 9353054020 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-30130

MS95..2D

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09121

MS95

 4
67001B - PLUG, HOLE(FOR FRONT DOOR PANEL)
90950-01023

MS8#,95,RS80..BTP,DLX,STD

OD=30X53

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-30190

MS95..2D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-30100

MS95..2D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-30140

MS95..2D

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-30060

MS95..2D

 1
67401A - BOLT, STUD(FOR FRONT DOOR DIVISION BAR)
90116-08313

MS95

L=24.0

 2
90116-08078

MS95

L=24.0

 2
90116-08311

MS95

L=17.5

 2
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-30060

MS95..2D

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-30030

MS95..2D

 1
67407B - BOLT, STUD(FOR FRONT DOOR REAR LOWER FRAME)
90116-08313

MS95

L=24.0

 2
90116-08311

MS95

L=17.5

 2
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-30030

MS95..2D

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-3065006

MS95..RHD..2D

BROWN,BROWN,TRIM4#

 1
67610-3065003

MS95..RHD..2D

GRAY,GRAY,TRIM1#

 1
67610-3065104

MS95..2D

BLUE,BLUE,TRIM8#

 1
67610-3065103

MS95..2D

GRAY,GRAY,TRIM1#

 1
67610-3065105

MS95..2D

BEIGE,BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-3061003

MS95..RHD..2D

GRAY,GRAY,TRIM1#

 1
67620-3061006

MS95..RHD..2D

BROWN,BROWN,TRIM4#

 1
67620-3061103

MS95..2D

GRAY,GRAY,TRIM1#

 1
67620-3061104

MS95..2D

BLUE,BLUE,TRIM8#

 1
67620-3061105

MS95..2D

BEIGE,BEIGE,TRIM4#

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-30110

MS95..2D

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67831-30110

MS95..2D

 1
67811 - PAD, FRONT DOOR SILENCER
67811-12020

MS8#,95,RS80

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-30080

MS95..2D

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-30080

MS95..2D

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-30040

MS8#,95,RS80

 50
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67869-30020

MS95

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-30190

MS95..2D

TN.TP.T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-30120

MS95..2D

TN.TP.T=5.0

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-30070

MS95..2D

LH.

 1
68170-30090

MS95..2D

RH.

 1
68231A - SEAL, DOOR DRAIN HOLE DUST(FOR FRONT DOOR)
68231-30020

MS95..2D

 6
Common parts
67771-20022
67772-22010
71328-30010
90179-08123
93530-54020
93540-54010
