MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7510)4M

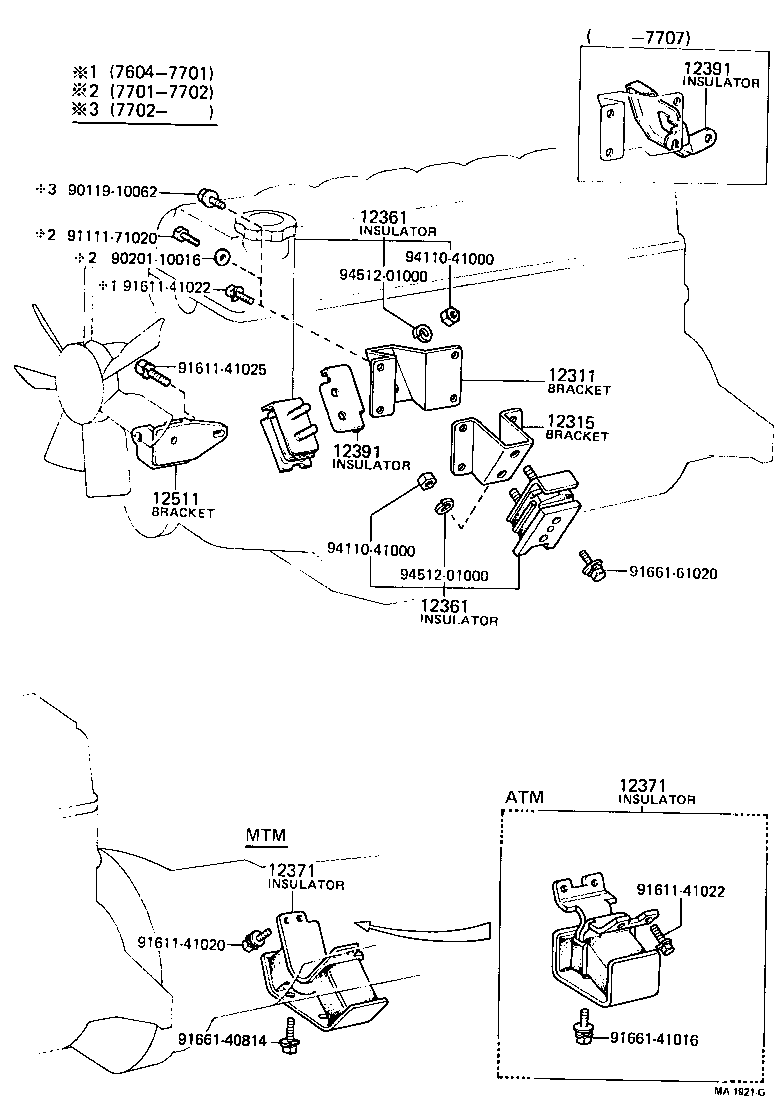

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12371 12511 9111241025 9161141016 9161141020 9161141020 9161141022 9161141022 9161141022 9166141016 9166161020 9411041000 9411041000 9451201000 9451201000 9451201000
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41022

4M..MS8#,95

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41022

4M..MS8#,95

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41012

4M..MS8#,95

 1
12511-41012

4M..MS8#,95..BTP,DLX,SAL,STD

FOR 12V 50A ALTERNATOR

 1
Common parts
91112-41025
91611-41016
91611-41020
91611-41022
91661-41016
91661-61020
94110-41000
94512-01000

(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12391 12391 12511 9011910062 9020110016 9111171020 9161141020 9161141022 9161141022 9161141025 9166140814 9166141016 9166161020 9411041000 9411041000 9451201000 9451201000
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41022

4M..MS8#,95

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41022

4M..MS8#,95

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-41010

4M..MS8#,95

 1
12391-45010

4M..MS8#,95

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-41010

4M..MS8#,95

 1
12391-45010

4M..MS8#,95

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41012

4M..MS8#,95

 1
12511-41012

4M..MS8#,95..BTP,DLX,SAL,STD

FOR 12V 50A ALTERNATOR

 1
Common parts
90119-10062
90201-10016
91111-71020
91611-41020
91611-41022
91611-41025
91661-40814
91661-41016
91661-61020
94110-41000
94512-01000

(7410-7908)5R

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12371 12511 9011912053 9011912053 9017910015 9111141028 9111151022 9161141016 9161141020 9161141020 9161141022 9161160825 9165161022 9165161022 9166140814 9166141016 9411041000 9411541200 9411541200 9451201000 9451201000 9451201200 9451201200 9461211001 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41022

4M..MS8#,95

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41022

4M..MS8#,95

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41012

4M..MS8#,95

 1
12511-41012

4M..MS8#,95..BTP,DLX,SAL,STD

FOR 12V 50A ALTERNATOR

 1
Common parts
90119-12053
90179-10015
91111-41028
91111-51022
91611-41016
91611-41020
91611-41022
91611-60825
91651-61022
91661-40814
91661-41016
94110-41000
94115-41200
94512-01000
94512-01200
94612-11001

(7510-7604)4M

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12511 9111241025 9161141020 9161141022 9161141022 9166140816 9166141016 9166161020 9411041000 9411041000 9451201000 9451201000 9451201000
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41022

4M..MS8#,95

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41022

4M..MS8#,95

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

4M..MS8#,95

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

4M..MS8#,95..4F

 1
12371-34020

4M..MS8#,95..MTM

 1
12371-34020

4M..MS8#,95..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41012

4M..MS8#,95

 1
12511-41012

4M..MS8#,95..BTP,DLX,SAL,STD

FOR 12V 50A ALTERNATOR

 1
Common parts
91112-41025
91611-41020
91611-41022
91661-40816
91661-41016
91661-61020
94110-41000
94512-01000
