MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)MS8#,95..RHD

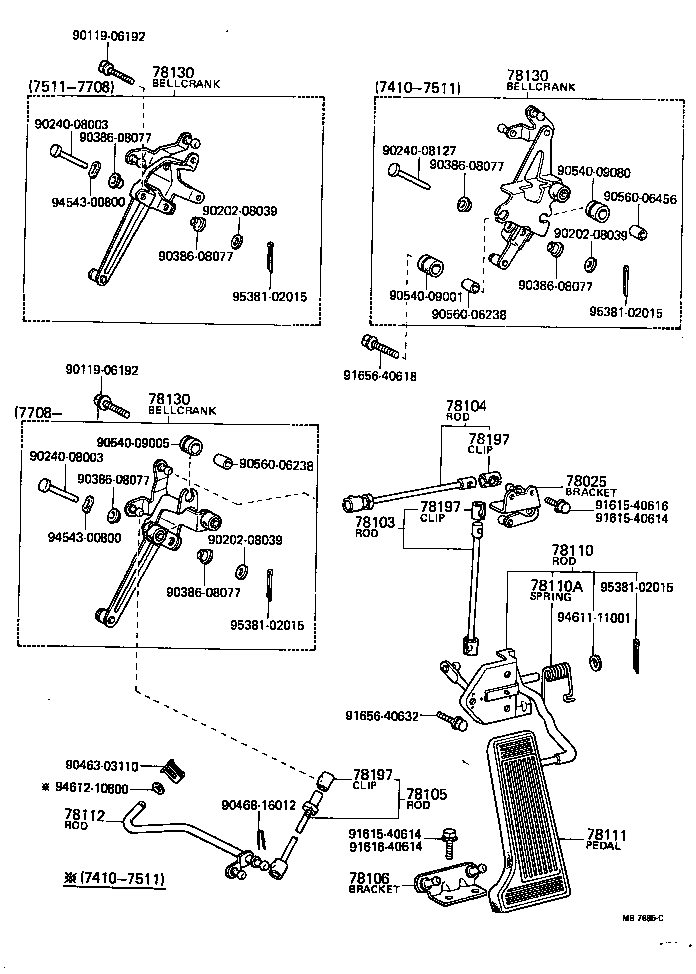

Click highlighted areas on diagram

diagram 78025 78103 78104 78105 78106 78110 78110A 78111 78112 78130 78130 78130 78197 78197 78197 9011906192 9011906192 9020208039 9020208039 9020208039 9024008003 9024008003 9024008127 9038608077 9038608077 9038608077 9038608077 9038608077 9038608077 9046303110 9046816012 9054009001 9054009005 9054009080 9056006238 9056006238 9056006456 9161540614 9161540614 9161540616 9161640614 9165640618 9165640632 9454300800 9454300800 9461111001 9461210800 9538102015 9538102015 9538102015 9538102015
Part # Description Qty Price
78025 - BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM
78015-30010

MS8#,95..RHD

 1
78015-30030

MS8#,95..RHD

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-30170

MS8#,95..RHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30080

MS8#,95..RHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-30210

MS8#,95..RHD

 1
78105-30250

MS8#,95..RHD

 1
78105-30251

MS8#,95..RHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-30040

MS8#,95,RS80..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30180

MS8#,95..RHD

 1
78120-30120

MS8#,95..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23444

MS8#,95..RHD

 1
90508-16009

MS8#,95..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-30060

MS8#,95,RS80..RHD

 1
78101-30051

MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD

FOR ARCTIC COUNTRY

 1
78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78106-30151

MS8#,95..RHD

 1
78106-30080

MS85,88,95..RHD;MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H)

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-30090

MS8#,95..RHD

 1
78160-30091

MS8#,95..RHD

 1
78160-30092

MS8#,95..RHD

 1
78160-30010

MS8#,95..RHD

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-30090

MS8#,95..RHD

 1
78160-30091

MS8#,95..RHD

 1
78160-30092

MS8#,95..RHD

 1
78160-30010

MS8#,95..RHD

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-30090

MS8#,95..RHD

 1
78160-30091

MS8#,95..RHD

 1
78160-30092

MS8#,95..RHD

 1
78160-30010

MS8#,95..RHD

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

MS8#,95,RS80

 2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

MS8#,95,RS80

 2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

MS8#,95,RS80

 2
Common parts
90119-06192
90202-08039
90240-08003
90240-08127
90386-08077
90463-03110
90468-16012
90540-09001
90540-09005
90540-09080
90560-06238
90560-06456
91615-40614
91615-40616
91616-40614
91656-40618
91656-40632
94543-00800
94611-11001
94612-10800
95381-02015
