MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)

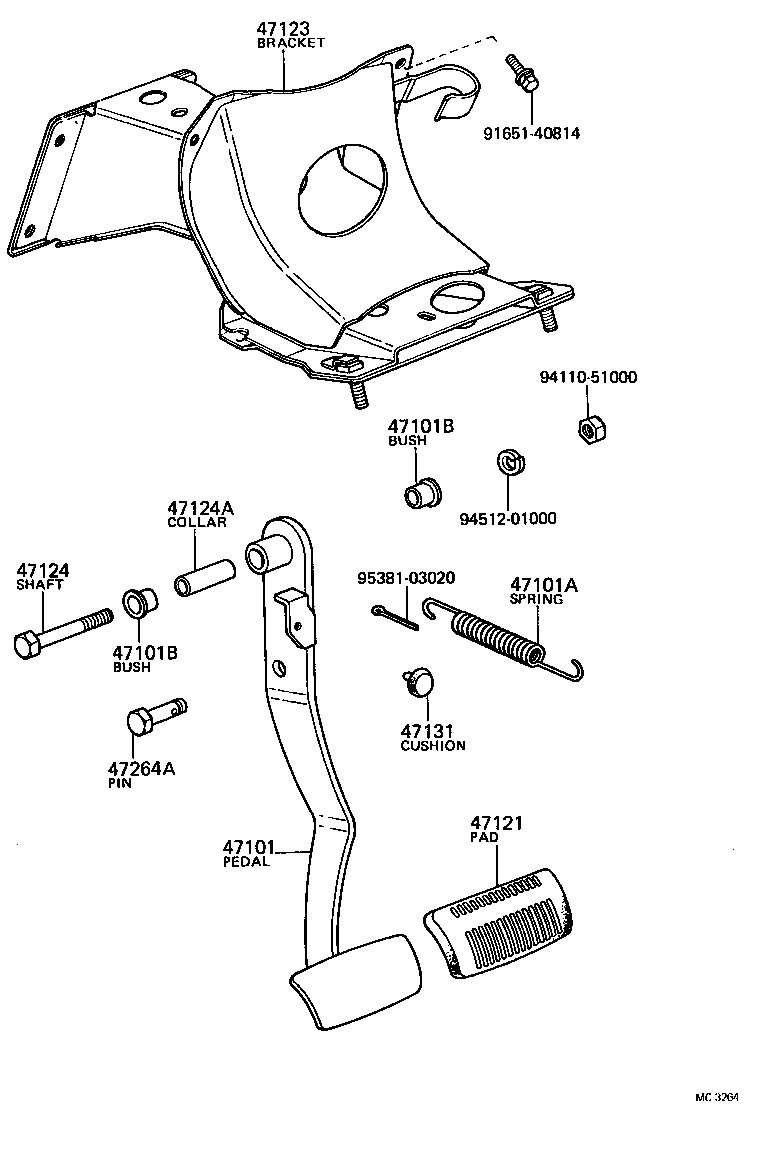

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9165140814 9411051000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-30150

MS8#,95,RS80..RHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-12484

MS8#,95,RS80

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

MS8#,95,RS80

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

MS8#,95,RS80

 2
47121 - PAD, BRAKE PEDAL
31321-30030

MS8#,95,RS80..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-30121

MS8#,95,RS80..RHD

 1
55106-30120

MS8#,95,RS80..RHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

MS8#,95,RS80..RHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

MS8#,95,RS80..RHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

MS8#,95,RS80

 1
47264A - PIN(FOR PUSH ROD)
90249-10048

MS8#,95,RS80

 1
Common parts
91651-40814
94110-51000
94512-01000
95381-03020
