MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)RHD..MTM

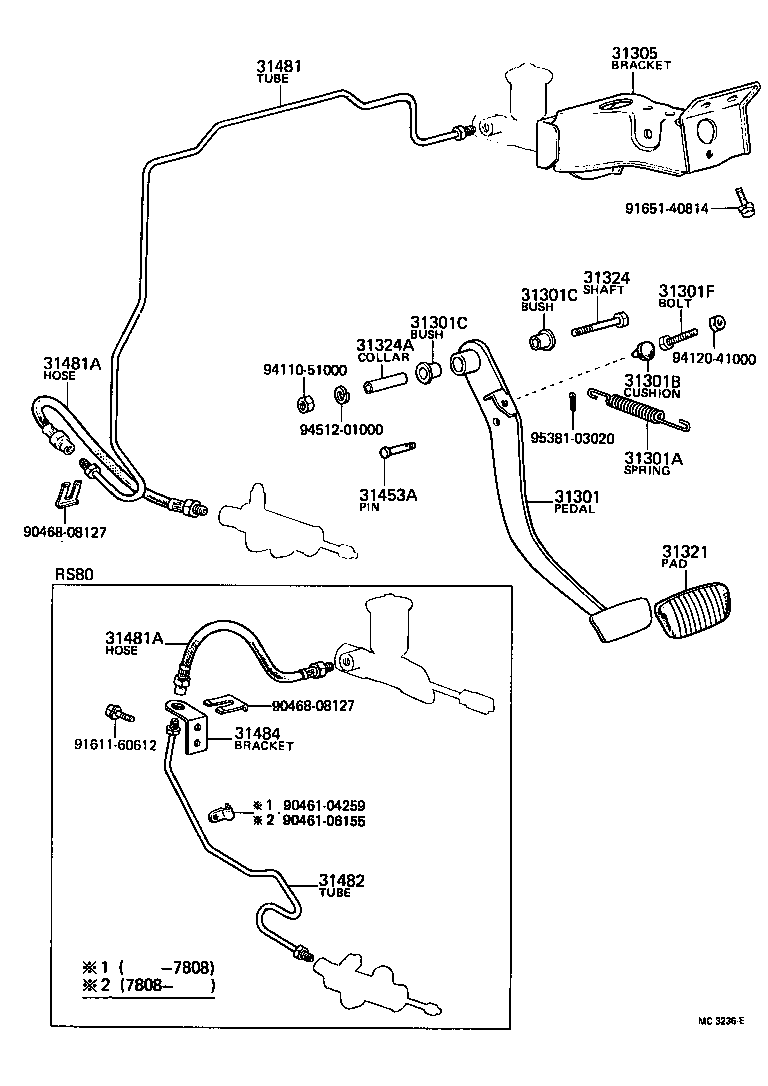

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31481 31481A 31481A 31482 31484 9046104259 9046106155 9046808127 9046808127 9161160612 9165140814 9411051000 9412041000 9451201000 9538103020
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30100

MS8#,95,RS80..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12484

MS8#,95,RS80..RHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

MS8#,95,RS80..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

MS8#,95,RS80..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

MS8#,95,RS80..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10085

MS8#,95,RS80..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-30050

MS8#,95,RS80..RHD..MTM

 1
55107-30051

MS8#,95,RS80..RHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-30030

MS8#,95,RS80..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

MS8#,95,RS80..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

MS8#,95,RS80..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-10048

MS8#,95,RS80..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30060

MS8#,95..RHD..MTM

 1
31481-30061

MS8#,95..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-31303

MS8#,95..MTM

 1
96940-31323

MS8#,95..MTM

 1
96940-33005

MS8#,95..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-31303

MS8#,95..MTM

 1
96940-31323

MS8#,95..MTM

 1
96940-33005

MS8#,95..MTM

 1
Common parts
90461-04259
90461-06155
90468-08127
91611-60612
91651-40814
94110-51000
94120-41000
94512-01000
95381-03020
