MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7611)5R

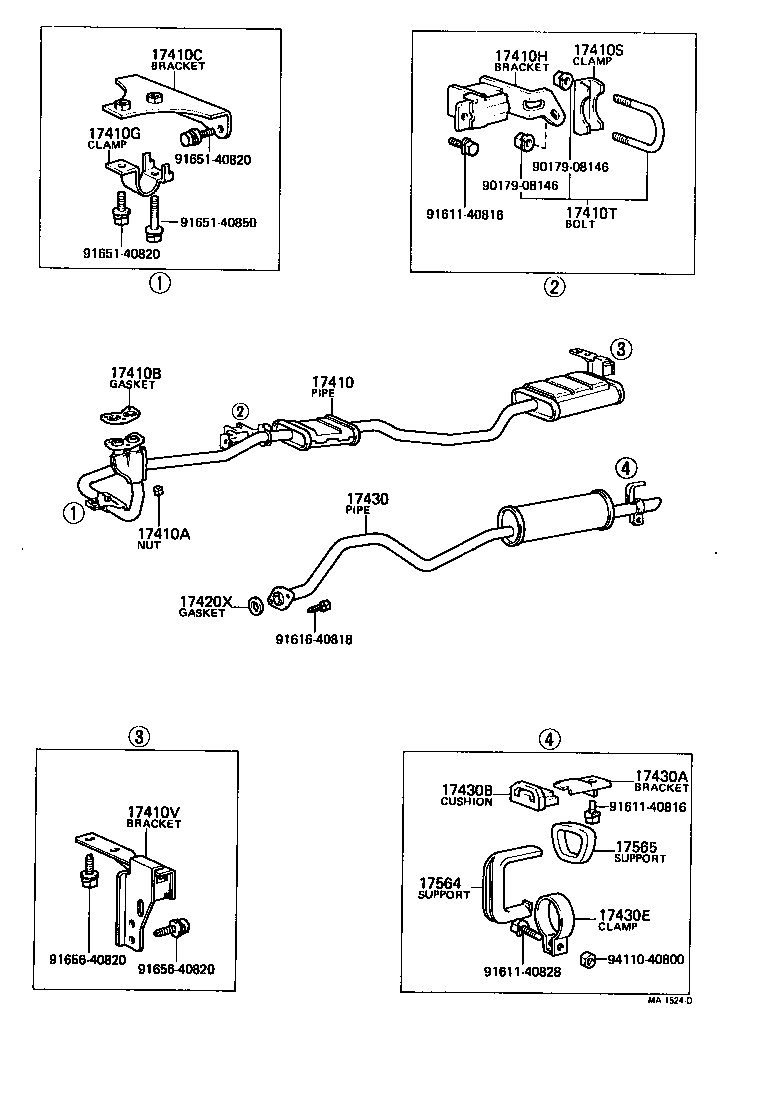

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410G 17410H 17410S 17410T 17410V 17420X 17430 17430A 17430B 17430E 17564 17565 9017908146 9017908146 9161140816 9161140816 9161140828 9161640818 9165140820 9165140820 9165140850 9165640820 9165640820 9411040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-41120

4M..MS8#,95

 1
17410-45100

4M..MS83,85,95..EUR,GEN

 1
17410-41120

4M..MS8#,95..GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

4M..MS8#,95

 3
90170-10114

4M..MS8#,95

 3
90179-10028

4M..MS8#,95

 3
90170-10114

4M..MS8#,95..GEN

 3
17410B - GASKET, EXHAUST PIPE
17451-41020

4M..MS8#,95..GEN

 1
17451-41020

4M..MS8#,95

 1
90917-06013

4M..MS8#,95

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41050

4M..MS8#,95..GEN

 1
17571-45020

4M..MS8#,95

 1
17571-41050

4M..MS8#,95

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41010

4M..MS8#,95..GEN

 2
17572-41010

4M..MS8#,95

 2
17572-45010

4M..MS8#,95..EUR,GEN

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-41010

4M..MS8#,95..EUR,GEN

 2
90301-34172

4M..MS8#,95..GEN

 2
90301-34172

4M..MS8#,95

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-41060

4M,5R..MS83,85,95,RS80

 1
17562-41060

4M,5R..MS83,85,95,RS80..GEN

 1
17505-45040

4M,5R..MS83,85,RS80..EUR,GEN

LOWER

 1
17574-45040

4M,5R..MS83,85,RS80..EUR,GEN

UPPER

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4M..MS8#,95

 1
90917-06004

4M..MS8#,95..EUR,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-41140

4M..MS85,95..GEN

 1
17430-41140

4M..MS85,95

 1
17430-45190

4M..MS85,95

 1
17430-45160

4M..MS85,95..EUR,GEN

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-41010

4M,5R..MS85,95,RS80

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-45010

4M,5R..MS85,95,RS80

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23204

4M,5R..MS85,95,RS80

 1
90461-23204

4M,5R..MS85,95,RS80..GEN

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17564-41010

4M,5R..MS85,95,RS80

 1
17564-41010

4M,5R..MS85,95,RS80..GEN

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010

4M,5R..MS85,95,RS80

 1
Common parts
90179-08146
91611-40816
91611-40828
91616-40818
91651-40820
91651-40850
91656-40820
94110-40800

(7410-7604)4M..MS85,95

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410H 17410H 17410T 17410T 17410V 17420X 17430 17430A 17430B 17430E 17564 17565 9161140814 9161140814 9161140816 9161140820 9161140828 9161140832 9161640818 9165640820 9165640820 9411040800 9411040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-41120

4M..MS8#,95

 1
17410-45100

4M..MS83,85,95..EUR,GEN

 1
17410-41120

4M..MS8#,95..GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

4M..MS8#,95

 3
90170-10114

4M..MS8#,95

 3
90179-10028

4M..MS8#,95

 3
90170-10114

4M..MS8#,95..GEN

 3
17410B - GASKET, EXHAUST PIPE
17451-41020

4M..MS8#,95..GEN

 1
17451-41020

4M..MS8#,95

 1
90917-06013

4M..MS8#,95

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41050

4M..MS8#,95..GEN

 1
17571-45020

4M..MS8#,95

 1
17571-41050

4M..MS8#,95

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41010

4M..MS8#,95..GEN

 2
17572-41010

4M..MS8#,95

 2
17572-45010

4M..MS8#,95..EUR,GEN

 2
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41010

4M..MS8#,95..GEN

 2
17572-41010

4M..MS8#,95

 2
17572-45010

4M..MS8#,95..EUR,GEN

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-41010

4M..MS8#,95..EUR,GEN

 2
90301-34172

4M..MS8#,95..GEN

 2
90301-34172

4M..MS8#,95

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-41010

4M..MS8#,95..EUR,GEN

 2
90301-34172

4M..MS8#,95..GEN

 2
90301-34172

4M..MS8#,95

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-41060

4M,5R..MS83,85,95,RS80

 1
17562-41060

4M,5R..MS83,85,95,RS80..GEN

 1
17505-45040

4M,5R..MS83,85,RS80..EUR,GEN

LOWER

 1
17574-45040

4M,5R..MS83,85,RS80..EUR,GEN

UPPER

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4M..MS8#,95

 1
90917-06004

4M..MS8#,95..EUR,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-41140

4M..MS85,95..GEN

 1
17430-41140

4M..MS85,95

 1
17430-45190

4M..MS85,95

 1
17430-45160

4M..MS85,95..EUR,GEN

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-41010

4M,5R..MS85,95,RS80

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-45010

4M,5R..MS85,95,RS80

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23204

4M,5R..MS85,95,RS80

 1
90461-23204

4M,5R..MS85,95,RS80..GEN

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17564-41010

4M,5R..MS85,95,RS80

 1
17564-41010

4M,5R..MS85,95,RS80..GEN

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010

4M,5R..MS85,95,RS80

 1
Common parts
91611-40814
91611-40816
91611-40820
91611-40828
91611-40832
91616-40818
91656-40820
94110-40800

(7611-7908)5R

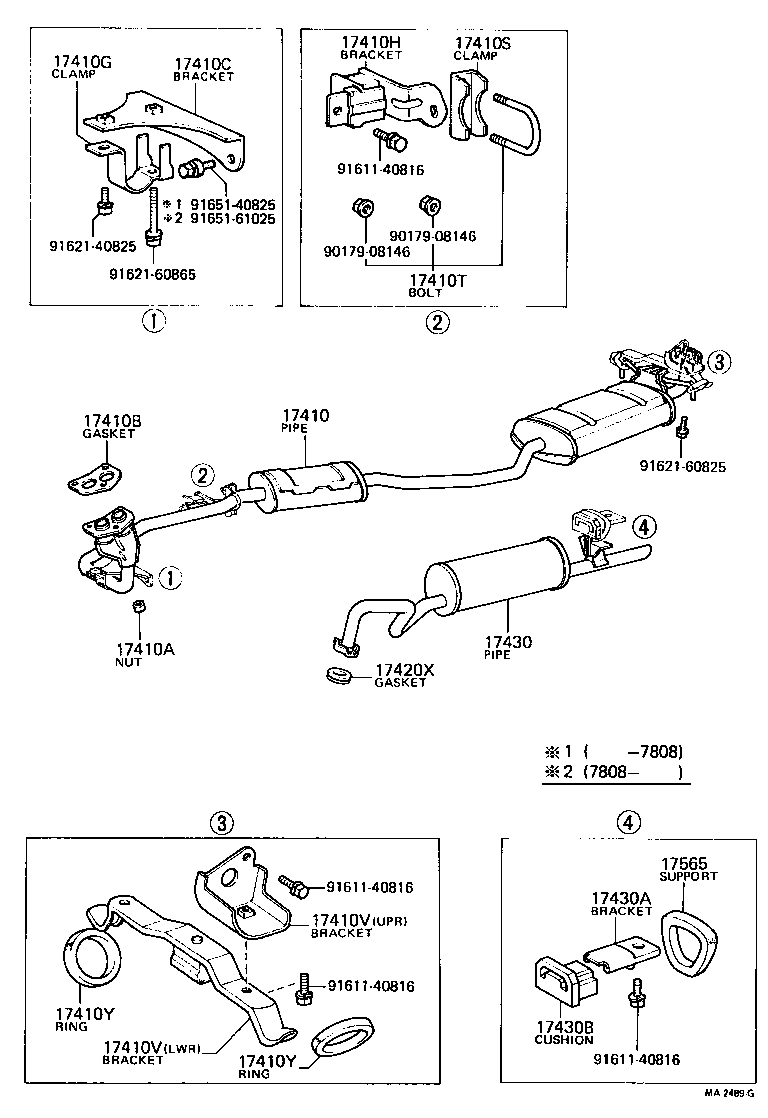

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410G 17410H 17410S 17410T 17410V 17410V 17410Y 17410Y 17420X 17430 17430A 17430B 17565 9017908146 9017908146 9161140816 9161140816 9161140816 9161140816 9162140825 9162160825 9162160865 9165140825 9165161025
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-41120

4M..MS8#,95

 1
17410-45100

4M..MS83,85,95..EUR,GEN

 1
17410-41120

4M..MS8#,95..GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

4M..MS8#,95

 3
90170-10114

4M..MS8#,95

 3
90179-10028

4M..MS8#,95

 3
90170-10114

4M..MS8#,95..GEN

 3
17410B - GASKET, EXHAUST PIPE
17451-41020

4M..MS8#,95..GEN

 1
17451-41020

4M..MS8#,95

 1
90917-06013

4M..MS8#,95

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-41050

4M..MS8#,95..GEN

 1
17571-45020

4M..MS8#,95

 1
17571-41050

4M..MS8#,95

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41010

4M..MS8#,95..GEN

 2
17572-41010

4M..MS8#,95

 2
17572-45010

4M..MS8#,95..EUR,GEN

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-41010

4M..MS8#,95..EUR,GEN

 2
90301-34172

4M..MS8#,95..GEN

 2
90301-34172

4M..MS8#,95

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-41060

4M,5R..MS83,85,95,RS80

 1
17562-41060

4M,5R..MS83,85,95,RS80..GEN

 1
17505-45040

4M,5R..MS83,85,RS80..EUR,GEN

LOWER

 1
17574-45040

4M,5R..MS83,85,RS80..EUR,GEN

UPPER

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-41060

4M,5R..MS83,85,95,RS80

 1
17562-41060

4M,5R..MS83,85,95,RS80..GEN

 1
17505-45040

4M,5R..MS83,85,RS80..EUR,GEN

LOWER

 1
17574-45040

4M,5R..MS83,85,RS80..EUR,GEN

UPPER

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

4M,5R..MS83,85,RS80..EUR,GEN

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

4M,5R..MS83,85,RS80..EUR,GEN

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4M..MS8#,95

 1
90917-06004

4M..MS8#,95..EUR,GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-41140

4M..MS85,95..GEN

 1
17430-41140

4M..MS85,95

 1
17430-45190

4M..MS85,95

 1
17430-45160

4M..MS85,95..EUR,GEN

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-41010

4M,5R..MS85,95,RS80

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-45010

4M,5R..MS85,95,RS80

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010

4M,5R..MS85,95,RS80

 1
Common parts
90179-08146
91611-40816
91621-40825
91621-60825
91621-60865
91651-40825
91651-61025
