MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

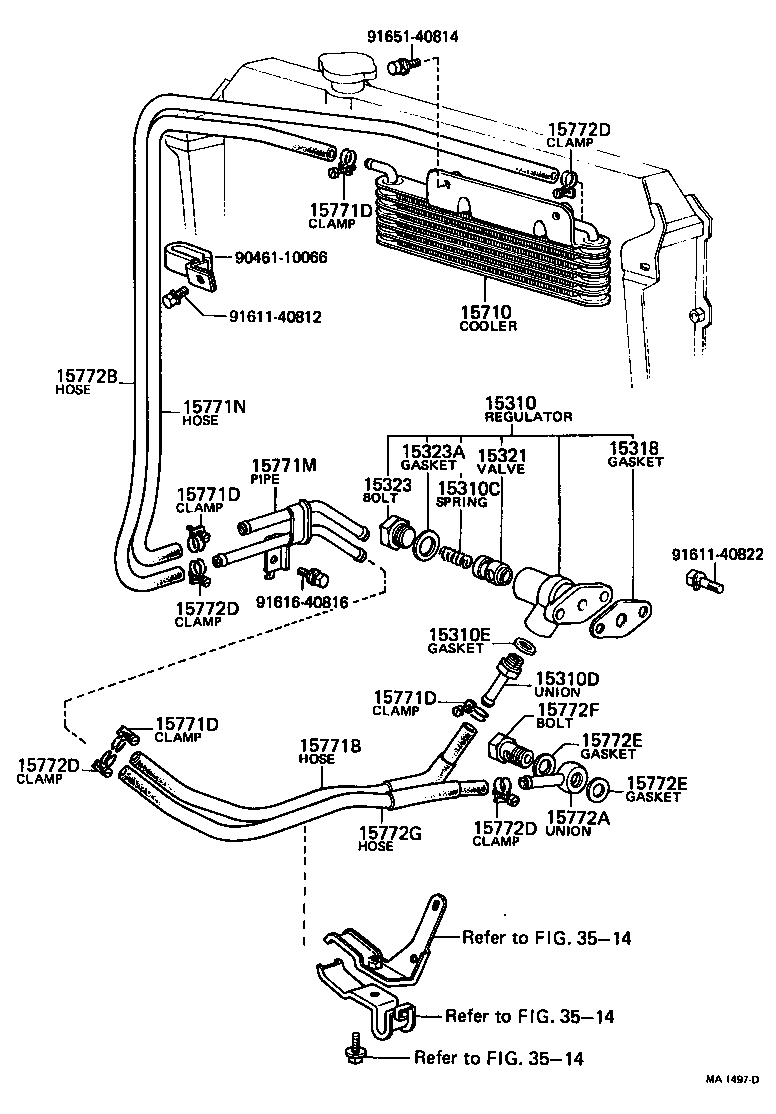

(7410-7608)4M

Click highlighted areas on diagram

diagram 15310 15310C 15310D 15310E 15318 15321 15323 15323A 15710 15771B 15771D 15771D 15771D 15771D 15771M 15771N 15772A 15772B 15772D 15772D 15772D 15772D 15772E 15772E 15772F 15772G 3514 3514 3514 9046110066 9161140812 9161140822 9161640816 9165140814
Part # Description Qty Price
15310 - REGULATOR ASSY, OIL PRESSURE
15310-45011

4M..MS8#,95

 1
15310-45012

4M..MS8#,95

 1
15310C - SPRING, OIL PRESSURE REGULATOR
15132-21010

4M..MS8#,95

 1
15310D - UNION(FOR OIL PRESSURE REGULATOR)
90404-12223

4M..MS8#,95

 1
15318 - GASKET, OIL PRESSURE REGULATOR BODY
15318-45011

4M..MS8#,95

 1
15321 - VALVE, OIL ADJUSTING
15131-41010

4M..MS8#,95

 1
15131-22010

4M..MS8#,95

 1
15323 - BOLT, OIL PRESSURE ADJUSTING
15133-20010

4M..MS8#,95

 1
15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15134-20010

4M..MS8#,95

 1
15710 - COOLER ASSY, OIL
15710-41020

4M..MS8#,95

 1
15710-41010

4M..MS8#,95

 1
15771B - HOSE, OIL, NO.1(FOR OIL PIPE)
15776-41010

4M..MS8#,95

 1
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771M - PIPE, OIL
15707-41030

4M..MS8#,95

 1
15707-41020

4M..MS8#,95

 1
15771N - HOSE, OIL, NO.2(FOR OIL PIPE)
15778-41020

4M..MS8#,95

 1
15778-41010

4M..MS8#,95

 1
15772A - UNION(FOR OIL PIPE)
90405-10153

4M..MS8#,95

 1
15772B - HOSE, OIL, NO.1(FOR OIL PIPE)
15779-41010

4M..MS8#,95

 1
15779-41020

4M..MS8#,95

 1
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-14091

4M..MS8#,95

 1
15772G - HOSE, OIL, NO.2 (FOR OIL PIPE)
15777-41010

4M..MS8#,95

 1
15777-41011

4M..MS8#,95

 1
Common parts
90461-10066
91611-40812
91611-40822
91616-40816
91651-40814
Linked diagrams
3514

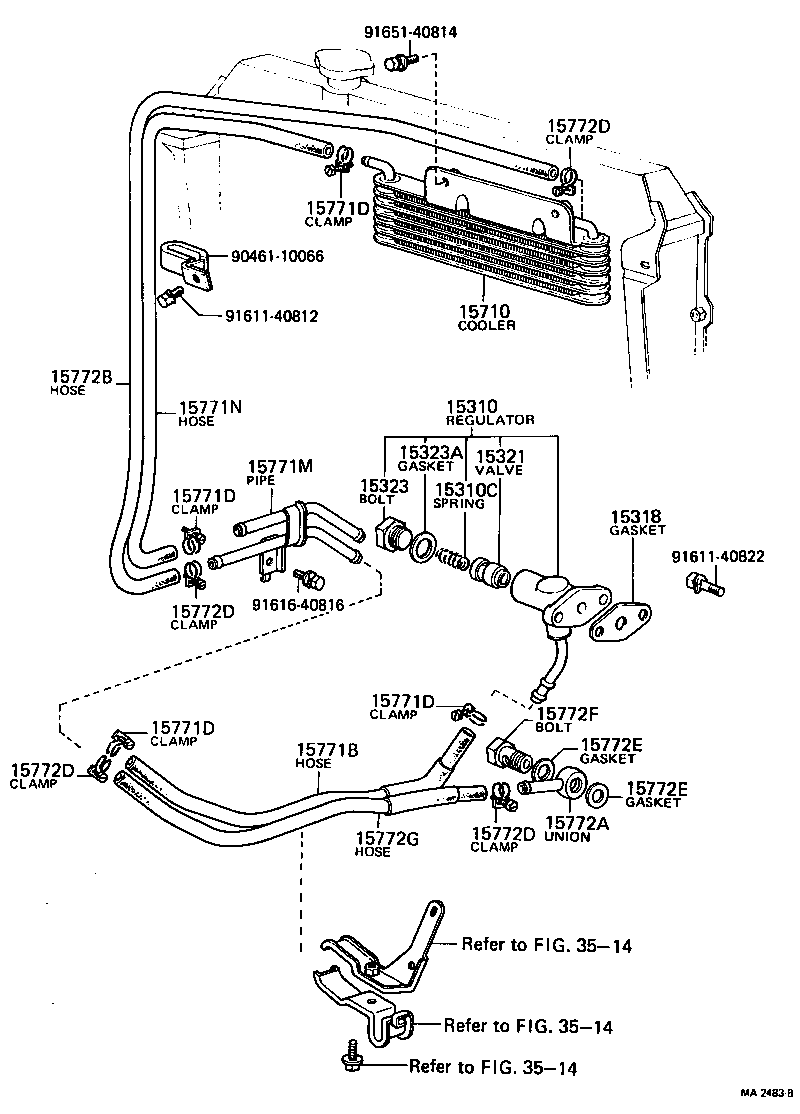

(7608-7802)4M

Click highlighted areas on diagram

diagram 15310 15310C 15318 15321 15323 15323A 15710 15771B 15771D 15771D 15771D 15771D 15771M 15771N 15772A 15772B 15772D 15772D 15772D 15772D 15772E 15772E 15772F 15772G 3514 3514 3514 9046110066 9161140812 9161140822 9161640816 9165140814
Part # Description Qty Price
15310 - REGULATOR ASSY, OIL PRESSURE
15310-45011

4M..MS8#,95

 1
15310-45012

4M..MS8#,95

 1
15310C - SPRING, OIL PRESSURE REGULATOR
15132-21010

4M..MS8#,95

 1
15318 - GASKET, OIL PRESSURE REGULATOR BODY
15318-45011

4M..MS8#,95

 1
15321 - VALVE, OIL ADJUSTING
15131-41010

4M..MS8#,95

 1
15131-22010

4M..MS8#,95

 1
15323 - BOLT, OIL PRESSURE ADJUSTING
15133-20010

4M..MS8#,95

 1
15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15134-20010

4M..MS8#,95

 1
15710 - COOLER ASSY, OIL
15710-41020

4M..MS8#,95

 1
15710-41010

4M..MS8#,95

 1
15771B - HOSE, OIL, NO.1(FOR OIL PIPE)
15776-41010

4M..MS8#,95

 1
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771M - PIPE, OIL
15707-41030

4M..MS8#,95

 1
15707-41020

4M..MS8#,95

 1
15771N - HOSE, OIL, NO.2(FOR OIL PIPE)
15778-41020

4M..MS8#,95

 1
15778-41010

4M..MS8#,95

 1
15772A - UNION(FOR OIL PIPE)
90405-10153

4M..MS8#,95

 1
15772B - HOSE, OIL, NO.1(FOR OIL PIPE)
15779-41010

4M..MS8#,95

 1
15779-41020

4M..MS8#,95

 1
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-14091

4M..MS8#,95

 1
15772G - HOSE, OIL, NO.2 (FOR OIL PIPE)
15777-41010

4M..MS8#,95

 1
15777-41011

4M..MS8#,95

 1
Common parts
90461-10066
91611-40812
91611-40822
91616-40816
91651-40814
Linked diagrams
3514

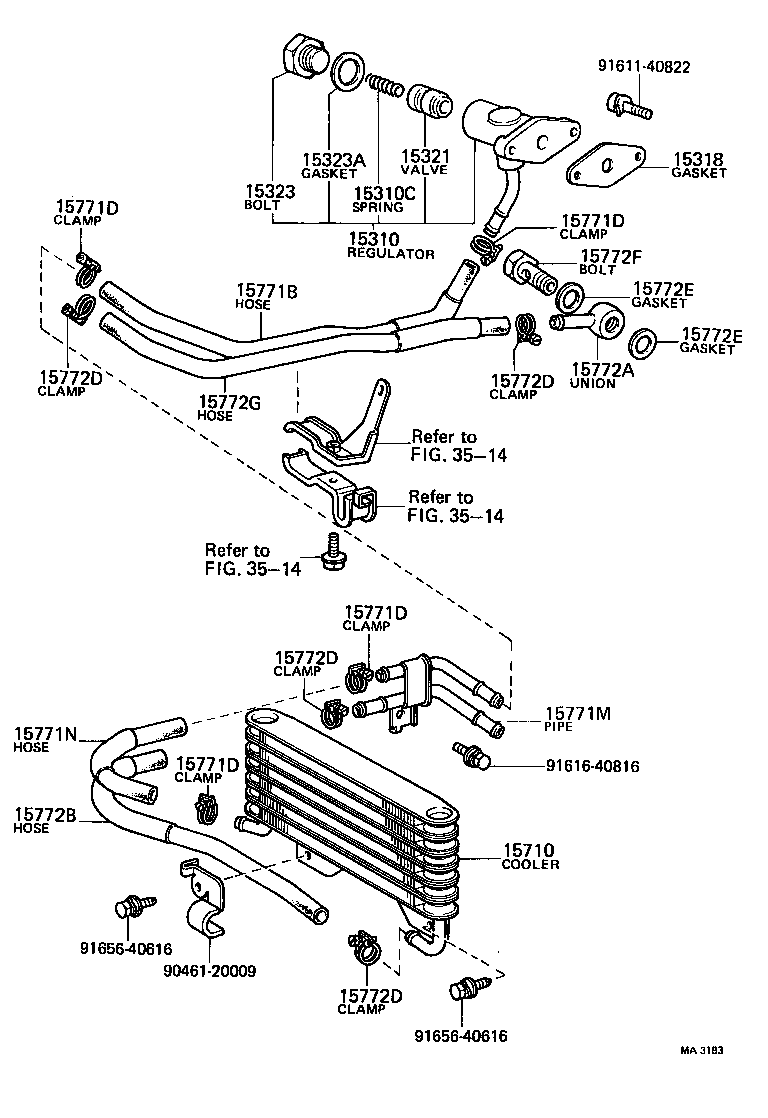

(7802-7908)4M

Click highlighted areas on diagram

diagram 15310 15310C 15318 15321 15323 15323A 15710 15771B 15771D 15771D 15771D 15771D 15771M 15771N 15772A 15772B 15772D 15772D 15772D 15772D 15772E 15772E 15772F 15772G 3514 3514 3514 9046120009 9161140822 9161640816 9165640616 9165640616
Part # Description Qty Price
15310 - REGULATOR ASSY, OIL PRESSURE
15310-45011

4M..MS8#,95

 1
15310-45012

4M..MS8#,95

 1
15310C - SPRING, OIL PRESSURE REGULATOR
15132-21010

4M..MS8#,95

 1
15318 - GASKET, OIL PRESSURE REGULATOR BODY
15318-45011

4M..MS8#,95

 1
15321 - VALVE, OIL ADJUSTING
15131-41010

4M..MS8#,95

 1
15131-22010

4M..MS8#,95

 1
15323 - BOLT, OIL PRESSURE ADJUSTING
15133-20010

4M..MS8#,95

 1
15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15134-20010

4M..MS8#,95

 1
15710 - COOLER ASSY, OIL
15710-41020

4M..MS8#,95

 1
15710-41010

4M..MS8#,95

 1
15771B - HOSE, OIL, NO.1(FOR OIL PIPE)
15776-41010

4M..MS8#,95

 1
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771D - CLAMP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15771M - PIPE, OIL
15707-41030

4M..MS8#,95

 1
15707-41020

4M..MS8#,95

 1
15771N - HOSE, OIL, NO.2(FOR OIL PIPE)
15778-41020

4M..MS8#,95

 1
15778-41010

4M..MS8#,95

 1
15772A - UNION(FOR OIL PIPE)
90405-10153

4M..MS8#,95

 1
15772B - HOSE, OIL, NO.1(FOR OIL PIPE)
15779-41010

4M..MS8#,95

 1
15779-41020

4M..MS8#,95

 1
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772D - CLAMP OR CLIP, OIL COOLER HOSE
96111-10180

4M..MS8#,95

 4
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772E - GASKET(FOR OIL PIPE)
90430-14235

4M..MS8#,95

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-14091

4M..MS8#,95

 1
15772G - HOSE, OIL, NO.2 (FOR OIL PIPE)
15777-41010

4M..MS8#,95

 1
15777-41011

4M..MS8#,95

 1
Common parts
90461-20009
91611-40822
91616-40816
91656-40616
Linked diagrams
3514
