MS85R-KB (1974)
Toyota Crown
Production
Oct 1974
-
Aug 1979
Engine
4M
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7410-7908)5R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-41010 |
4M..MS8#,95 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-41021 |
4M..MS8#,95 |
1 | ||
| 13540-41021 |
4M..MS8#,95..GEN |
1 | ||
| 13540-45010 |
4M..MS8#,95 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-41011 |
4M..MS8#,95 |
1 | ||
| 13562-41011 |
4M..MS8#,95..GEN |
1 | ||
| 13562-45010 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-40840 | ||||
(7410-7908)4M

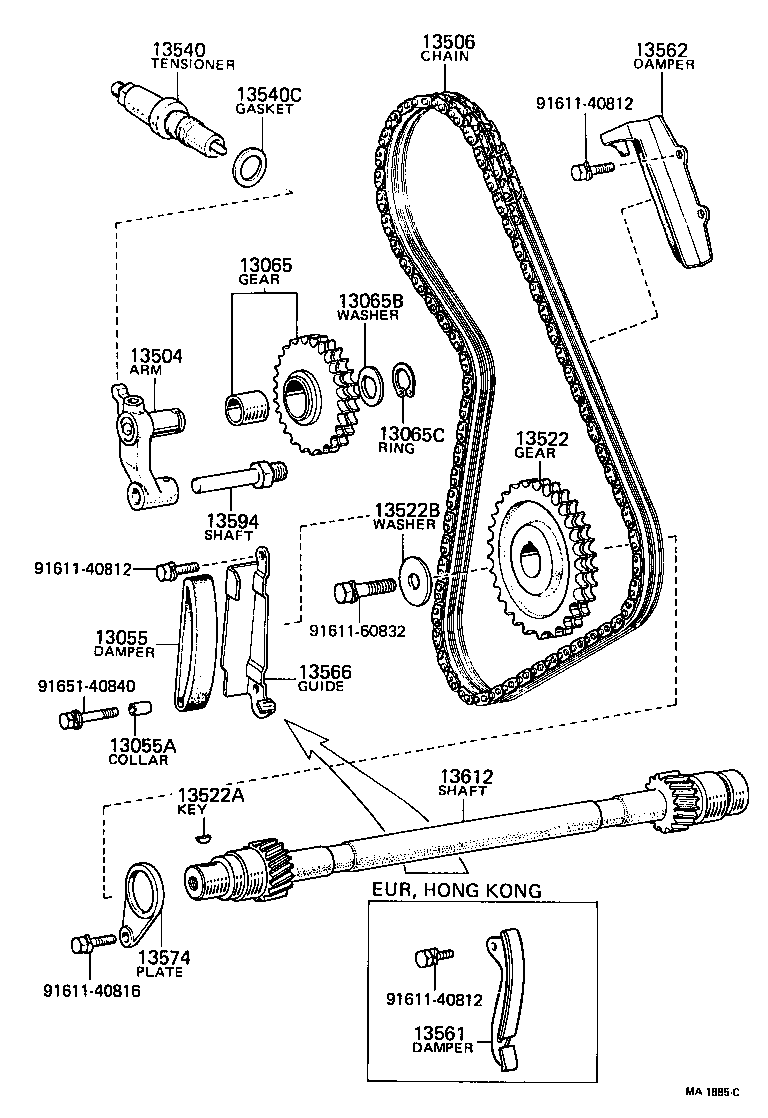

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13055 - DAMPER SUB-ASSY, CHAIN | ||||
| 13055-41010 |
4M..MS8#,95 |
1 | ||
| 13055-41010 |
4M..MS8#,95..ARL,GEN |
1 | ||
| 13055A - COLLAR(FOR CHAIN DAMPER) | ||||
| 90387-08031 |
4M..MS8#,95..ARL,GEN |
1 | ||
| 90387-08031 |
4M..MS8#,95 |
1 | ||
| 13065 - GEAR SUB-ASSY, TENSION | ||||
| 13065-45010 |
4M..MS8#,95 |
1 | ||
| 13065B - WASHER, TIMING CHAIN TENSION GEAR CLAW | ||||
| 90214-20017 |
4M..MS8#,95 |
1 | ||
| 13065C - RING, SHAFT SNAP(FOR TENSION GEAR) | ||||
| 96150-02000 |
4M..MS8#,95 |
1 | ||
| 13504 - ARM SUB-ASSY, TENSION | ||||
| 13504-45010 |
4M..MS8#,95..GEN |
1 | ||
| 13504-45010 |
4M..MS8#,95 |
1 | ||
| 13504-45020 |
4M..MS8#,95 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-41010 |
4M..MS8#,95 |
1 | ||
| 13522 - GEAR, PUMP DRIVE SHAFT | ||||
| 13522-41011 |
4M..MS8#,95 N=30 |
1 | ||
| 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) | ||||
| 90280-05008 |
4M..MS8#,95 |
1 | ||
| 13522B - WASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR) | ||||
| 90201-08120 |
4M..MS8#,95 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-41021 |
4M..MS8#,95 |
1 | ||
| 13540-41021 |
4M..MS8#,95..GEN |
1 | ||
| 13540-45010 |
4M..MS8#,95 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 90430-22135 |
4M..MS8#,95 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-41011 |
4M..MS8#,95 |
1 | ||
| 13562-41011 |
4M..MS8#,95..GEN |
1 | ||
| 13562-45010 |
4M..MS8#,95 |
1 | ||
| 13566 - GUIDE, CHAIN DAMPER | ||||
| 13566-41012 |
4M..MS8#,95..GEN |
1 | ||
| 13566-41012 |
4M..MS8#,95 |
1 | ||
| 13566-45010 |
4M..MS8#,95..ARL,GEN |
1 | ||
| 13574 - PLATE, PUMP DRIVE SHAFT | ||||
| 13574-41010 |
4M..MS8#,95 |
1 | ||
| 13594 - SHAFT, TENSION GEAR ARM | ||||
| 13594-45010 |
4M..MS8#,95 |
1 | ||
| 13612 - SHAFT, PUMP DRIVE | ||||
| 13612-41010 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-60832 | ||||
| 91651-40840 | ||||
