MS85R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7604)4M

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11361 11366 11381 11381A 11383 12281 12282 9010508008 9111140816 9111141055 9161140816 9161140825 9161140855 9161141020 9161141030 9411041000 9411050800 9451200800 9451200800 9451201000 9451201000 9451201000
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-41013

4M..MS8#,95..GEN

 1
11321-41020

4M..MS8#,95

 1
11302-41012

4M..MS8#,95..GEN

 1
11302-41012

4M..MS8#,95

 1
11321-45011

4M..MS8#,95

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

4M..MS8#,95

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M..MS8#,95

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-41010

4M..MS8#,95

 1
11355 - PLATE, REAR END
11355-41010

4M..MS8#,95

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-45010

4M..MS8#,95

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
31131-30010

4M..MS8#,95

 1
11366-41010

4M..MS8#,95

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41010

4M..MS8#,95

 1
11381-41011

4M..MS8#,95

 1
11381A - SEAL, ENGINE REAR OIL
90311-80139

4M..MS8#,95

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M..MS8#,95

 1
12281 - HANGER, ENGINE, NO.1
12281-42010

4M..MS8#,95

 1
12281-42010

4M..MS8#,95..GEN

 1
12281-41080

4M..MS8#,95..EUR,GEN

 1
12281-45020

4M..MS8#,95

 1
12282 - HANGER, ENGINE, NO.2
12281-41020

4M..MS8#,95..GEN

 1
12281-45030

4M..MS8#,95

 1
12281-41020

4M..MS8#,95

 1
12281-45012

4M..MS8#,95

 1
Common parts
90105-08008
91111-40816
91111-41055
91611-40816
91611-40825
91611-40855
91611-41020
91611-41030
94110-41000
94110-50800
94512-00800
94512-01000

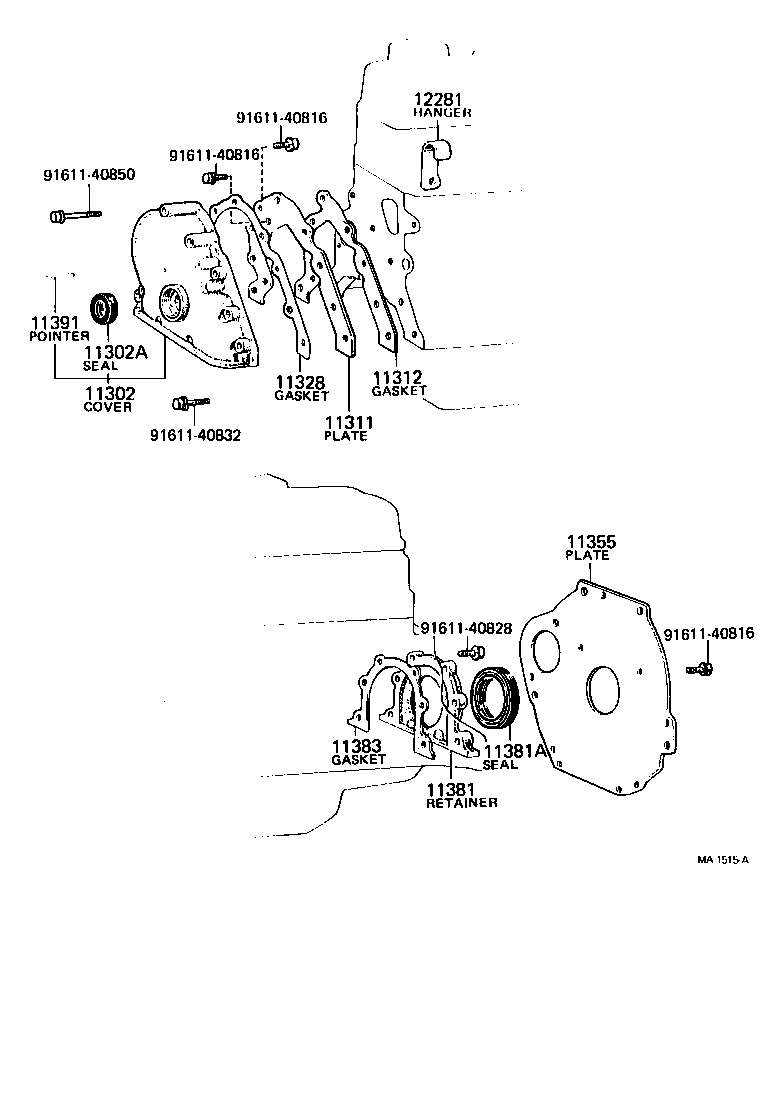

(7410-7511)5R

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11381 11381A 11383 11391 12281 9161140816 9161140816 9161140816 9161140828 9161140832 9161140850
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-41013

4M..MS8#,95..GEN

 1
11321-41020

4M..MS8#,95

 1
11302-41012

4M..MS8#,95..GEN

 1
11302-41012

4M..MS8#,95

 1
11321-45011

4M..MS8#,95

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

4M..MS8#,95

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M..MS8#,95

 1
11355 - PLATE, REAR END
11355-41010

4M..MS8#,95

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41010

4M..MS8#,95

 1
11381-41011

4M..MS8#,95

 1
11381A - SEAL, ENGINE REAR OIL
90311-80139

4M..MS8#,95

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M..MS8#,95

 1
12281 - HANGER, ENGINE, NO.1
12281-42010

4M..MS8#,95

 1
12281-42010

4M..MS8#,95..GEN

 1
12281-41080

4M..MS8#,95..EUR,GEN

 1
12281-45020

4M..MS8#,95

 1
Common parts
91611-40816
91611-40828
91611-40832
91611-40850

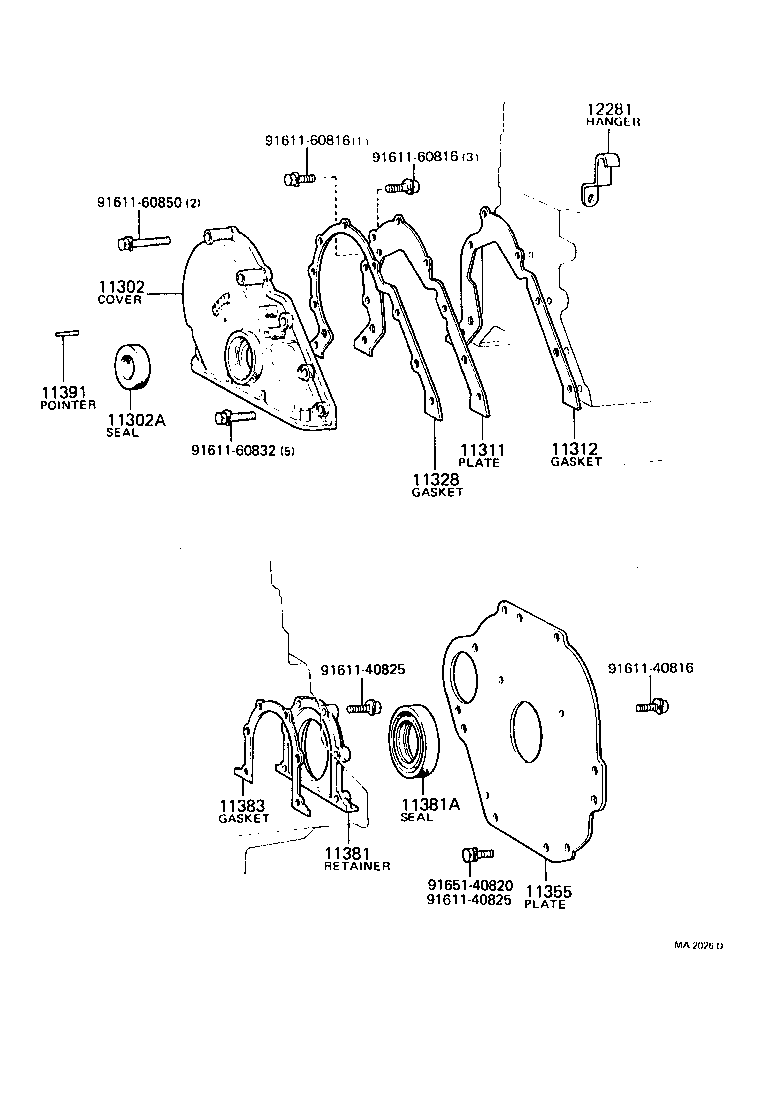

(7511-7908)5R

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11381 11381A 11383 11391 12281 9161140816 9161140825 9161140825 9161160816 9161160816 9161160832 9161160850 9165140820
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-41013

4M..MS8#,95..GEN

 1
11321-41020

4M..MS8#,95

 1
11302-41012

4M..MS8#,95..GEN

 1
11302-41012

4M..MS8#,95

 1
11321-45011

4M..MS8#,95

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

4M..MS8#,95

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-41010

4M..MS8#,95

 1
11355 - PLATE, REAR END
11355-41010

4M..MS8#,95

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-41010

4M..MS8#,95

 1
11381-41011

4M..MS8#,95

 1
11381A - SEAL, ENGINE REAR OIL
90311-80139

4M..MS8#,95

HTC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010

4M..MS8#,95

 1
12281 - HANGER, ENGINE, NO.1
12281-42010

4M..MS8#,95

 1
12281-42010

4M..MS8#,95..GEN

 1
12281-41080

4M..MS8#,95..EUR,GEN

 1
12281-45020

4M..MS8#,95

 1
Common parts
91611-40816
91611-40825
91611-60816
91611-60832
91611-60850
91651-40820
