Toyota Crown MS85 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
EU
CROWN
MS85L-YG (1974)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

MS85L-YG (1974)

Toyota Crown

Production Oct 1974 - Aug 1979

Engine 4M

Transmission 3H MTM

Displacement 2500cc

Power 168 HP (125 kW)

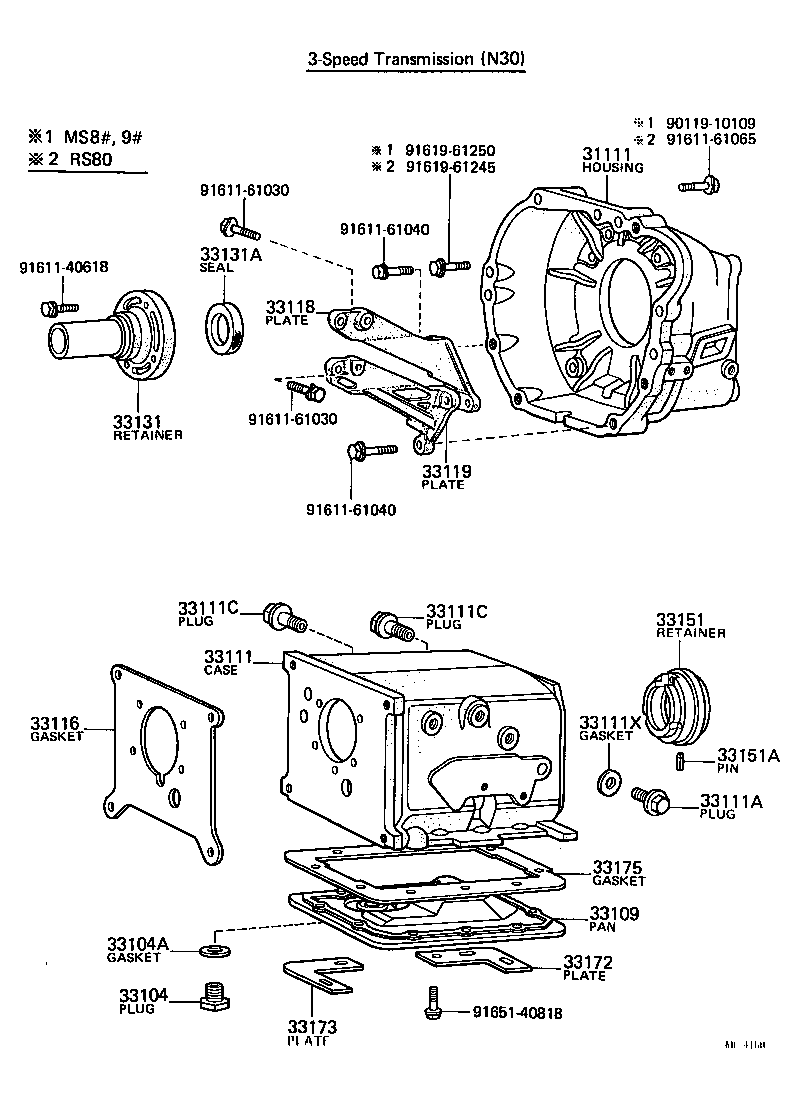

(7410-7510)3H

Click highlighted areas on diagram

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30101	MS8#..LHD..3H	10/1974 - 02/1978	1
31111-30101	MS8#..LHD..3H	02/1978 - 08/1979	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33109-30010	MS8#..3H	12/1977 - 08/1979	1
33109-30010	MS8#,RS80..3H	10/1975 - 12/1977	1
33109-20011	MS8#,RS80..3H	10/1974 - 10/1975	1
33111 - CASE, MANUAL TRANSMISSION
33111-20080	MS8#,RS80..LHD..3H	10/1974 - 10/1975	1
33111-30080	MS8#,RS80..LHD..3H	10/1975 - 02/1979	1
33111-30081	MS8#,RS80..LHD..3H	02/1979 - 08/1979	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015	MS8#,RS80..3H	10/1975 - 08/1979	4
90341-16061	MS8#,RS80..3H	10/1974 - 10/1975	2
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015	MS8#,RS80..3H	10/1975 - 08/1979	4
90341-16061	MS8#,RS80..3H	10/1974 - 10/1975	2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-30040	MS8#,RS80..3H	10/1975 - 02/1979	1
33132-20050	MS8#,RS80..3H	02/1979 - 08/1979	1
33132-20030	MS8#,RS80..3H	10/1974 - 10/1975	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-30031	MS8#,95..MTM	10/1974 - 08/1979	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-30031	MS8#,95..MTM	10/1974 - 11/1976	1
33119-22030	MS8#,95..MTM	11/1976 - 08/1979	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-20030	MS8#,RS80..3H	10/1974 - 10/1975	1
33131-30040	MS8#,RS80..3H	10/1975 - 08/1979	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106	MS8#,RS80..3H	10/1974 - 08/1979	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30020	MS8#,RS80..3H	10/1975 - 08/1976	1
33151-30010	MS8#,RS80..3H	10/1974 - 10/1975	1
33151-30030	MS8#,RS80..3H	08/1976 - 08/1979	1
33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI
90254-05005	MS8#,RS80..3H	10/1974 - 10/1975	1
33172 - PLATE, TRANSMISSION OIL PAN, NO.1
33172-20010	MS8#,RS80..3H	10/1974 - 10/1975	2
33173 - PLATE, TRANSMISSION OIL PAN, NO.2
33173-20010	MS8#,RS80..3H	10/1974 - 10/1975	2
33175 - GASKET, MANUAL TRANSMISSION OIL PAN
33175-30010	MS8#..3H	12/1977 - 08/1979	1
33175-20010	MS8#,RS80..3H	10/1974 - 10/1975	1
33175-30010	MS8#,RS80..3H	10/1975 - 12/1977	1
Common parts
90119-10109
91611-40618
91611-61030
91611-61040
91611-61065
91619-61245
91619-61250
91651-40818

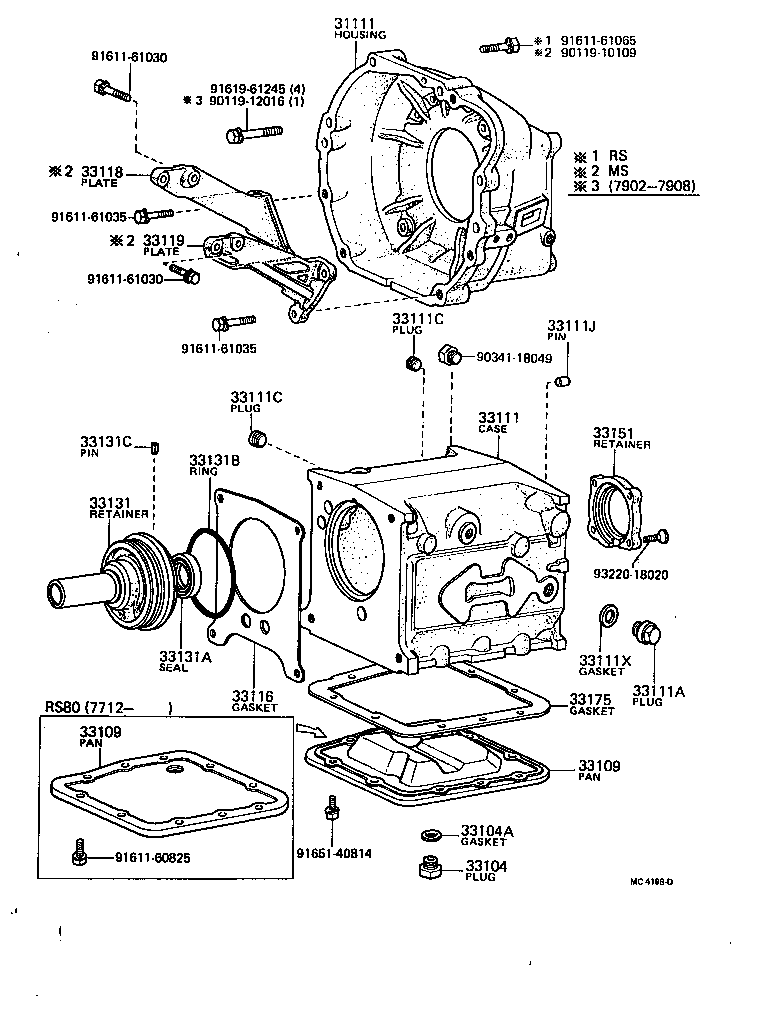

(7510-7908)3H

Click highlighted areas on diagram

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-30101	MS8#..LHD..3H	10/1974 - 02/1978	1
31111-30101	MS8#..LHD..3H	02/1978 - 08/1979	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33109-30010	MS8#..3H	12/1977 - 08/1979	1
33109-30010	MS8#,RS80..3H	10/1975 - 12/1977	1
33109-20011	MS8#,RS80..3H	10/1974 - 10/1975	1
33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33109-30010	MS8#..3H	12/1977 - 08/1979	1
33109-30010	MS8#,RS80..3H	10/1975 - 12/1977	1
33109-20011	MS8#,RS80..3H	10/1974 - 10/1975	1
33111 - CASE, MANUAL TRANSMISSION
33111-20080	MS8#,RS80..LHD..3H	10/1974 - 10/1975	1
33111-30080	MS8#,RS80..LHD..3H	10/1975 - 02/1979	1
33111-30081	MS8#,RS80..LHD..3H	02/1979 - 08/1979	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015	MS8#,RS80..3H	10/1975 - 08/1979	4
90341-16061	MS8#,RS80..3H	10/1974 - 10/1975	2
33111C - PLUG(FOR TRANSMISSION CASE)
90344-53015	MS8#,RS80..3H	10/1975 - 08/1979	4
90341-16061	MS8#,RS80..3H	10/1974 - 10/1975	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12216	MS8#,RS80..3H L=14,OD=12	10/1975 - 08/1979	1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010	MS8#,95,RS80..MTM	10/1974 - 08/1979	1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-30040	MS8#,RS80..3H	10/1975 - 02/1979	1
33132-20050	MS8#,RS80..3H	02/1979 - 08/1979	1
33132-20030	MS8#,RS80..3H	10/1974 - 10/1975	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-30031	MS8#,95..MTM	10/1974 - 08/1979	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-30031	MS8#,95..MTM	10/1974 - 11/1976	1
33119-22030	MS8#,95..MTM	11/1976 - 08/1979	1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-20030	MS8#,RS80..3H	10/1974 - 10/1975	1
33131-30040	MS8#,RS80..3H	10/1975 - 08/1979	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32106	MS8#,RS80..3H	10/1974 - 08/1979	1
33131B - RING, O(FOR TRANSMISSION FRONT BEARING RETAINER)
90301-99003	MS8#,RS80..3H	10/1975 - 08/1979	1
33131C - PIN, SLOTTED SPRING(FOR TRANSMISSION FRONT BEARING RETA
90254-05005	MS8#,RS80..3H	10/1975 - 08/1979	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30020	MS8#,RS80..3H	10/1975 - 08/1976	1
33151-30010	MS8#,RS80..3H	10/1974 - 10/1975	1
33151-30030	MS8#,RS80..3H	08/1976 - 08/1979	1
33175 - GASKET, MANUAL TRANSMISSION OIL PAN
33175-30010	MS8#..3H	12/1977 - 08/1979	1
33175-20010	MS8#,RS80..3H	10/1974 - 10/1975	1
33175-30010	MS8#,RS80..3H	10/1975 - 12/1977	1
Common parts
90119-10109
90119-12016
90341-18049
91611-60825
91611-61030
91611-61035
91611-61065
91619-61245
91651-40814
93220-18020

MS85L-YG (1974)

(7410-7510)3H

(7510-7908)3H
