MS85L-NQ (1977)
Toyota Crown

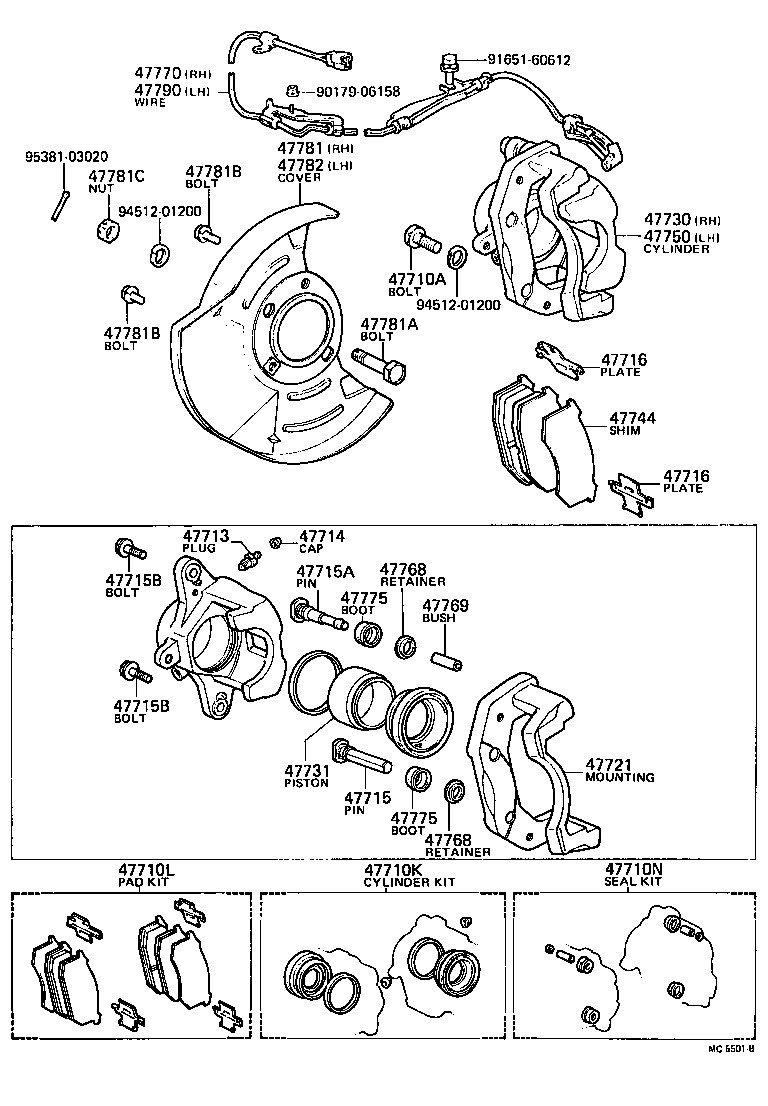

ILLUST NO. 1 OF 2(7802-7908)ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12379 |
MS8#,95,RS80 |
4 | ||
| 90101-12030 |
MS8#,95,RS80 *12-1.25PX31-20,12-1.25PX31-20 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30050 |
MS8#,95,RS80 |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-30110 |
MS85..ROY |
1 | ||
| 04491-30070 |
MS85..LHD..ROY |
1 | ||
| 47710N - SEAL KIT, DISC BRAKE, FRONT | ||||
| 04498-30020 |
MS8#,95,RS80 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
MS8#,95,RS80 |
2 | ||
| 47547-12030 |
MS8#,95,RS80 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
MS8#,95,RS80 |
2 | ||
| 47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 47715-30010 |
MS8#,95,RS80 |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-39015 |
MS8#,95,RS80 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08019 |
MS8#,95,RS80 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08019 |
MS8#,95,RS80 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-30010 |
MS8#,95,RS80 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-30010 |
MS8#,95,RS80 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-30010 |
MS85..ROY |
2 | ||
| 47721-30010 |
MS8#,95,RS80 |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-30060 |
MS8#,95,RS80 |
1 | ||
| 47730-30060 |
MS85..ROY |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30040 |
MS8#,95,RS80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-30110 |
MS8#,95,RS80 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-30060 |
MS85..ROY |
1 | ||
| 47750-30060 |
MS8#,95,RS80 |
1 | ||
| 47768 - RETAINER, DUST SEAL | ||||
| 47768-30010 |
MS8#,95,RS80 |
4 | ||
| 47768 - RETAINER, DUST SEAL | ||||
| 47768-30010 |
MS8#,95,RS80 |
4 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-30010 |
MS8#,95,RS80 |
2 | ||
| 47770 - WIRE ASSY, PAD WEAR INDICATOR, FRONT RH | ||||
| 47770-30030 |
MS85..ROY |
1 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30010 |
MS8#,95,RS80 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30010 |
MS8#,95,RS80 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-30042 |
MS85,95,RS80 |
1 | ||
| 47703-30060 |
MS8#,95,RS80 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12044 |
MS8#,95,RS80 |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91611-60818 |
MS8#,95,RS80 *8-1.25PX18-18,L=18 |
2 | ||
| 91611-60812 |
MS8#,95,RS80 *8-1.25PX12-7,L=12 |
2 | ||
| 91161-71232 |
MS8#,95,RS80 |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 91611-60818 |
MS8#,95,RS80 *8-1.25PX18-18,L=18 |
2 | ||
| 91611-60812 |
MS8#,95,RS80 *8-1.25PX12-7,L=12 |
2 | ||
| 91161-71232 |
MS8#,95,RS80 |
4 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
MS8#,95,RS80 |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-30042 |
MS85,95,RS80 |
1 | ||
| 47704-30060 |
MS8#,95,RS80 |
1 | ||
| 47790 - WIRE ASSY, PAD WEAR INDICATOR, FRONT LH | ||||
| 47790-30030 |
MS85..ROY |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91651-60612 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
