MS85L-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)LHD

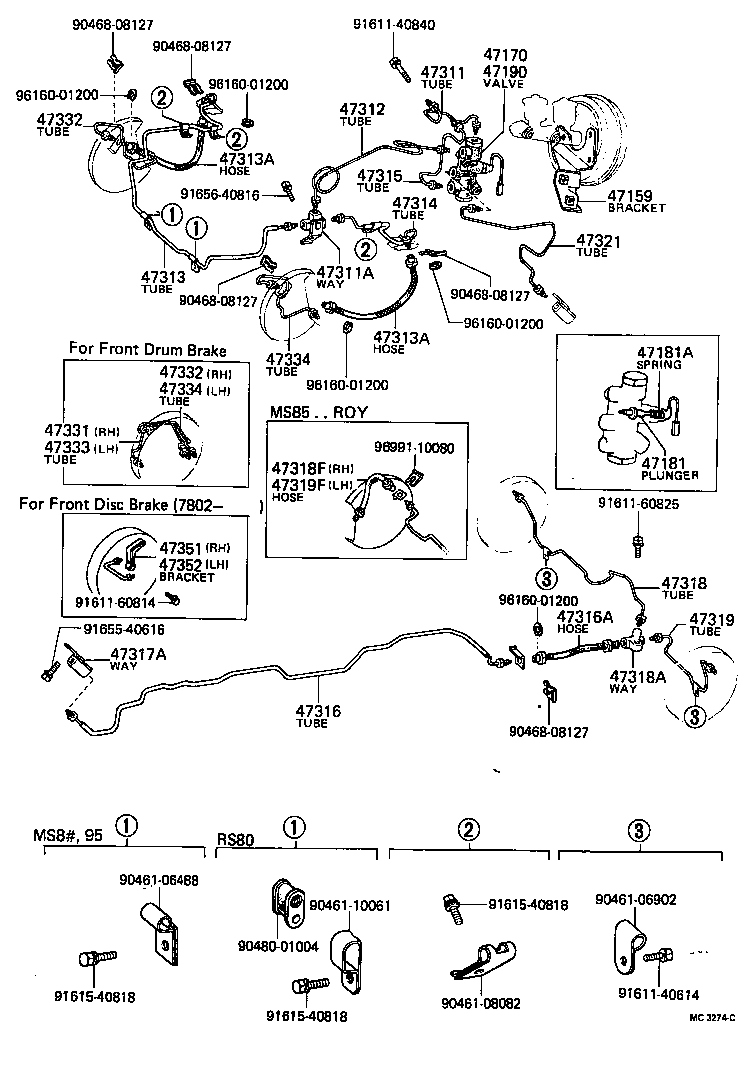

Click highlighted areas on diagram

diagram 47159 47170 47181 47181A 47190 47311 47311A 47312 47313 47313A 47313A 47314 47315 47316 47316A 47317A 47318 47318A 47318F 47319 47319F 47321 47331 47332 47332 47333 47334 47334 47351 47352 9046106488 9046106902 9046108082 9046110061 9046808127 9046808127 9046808127 9046808127 9046808127 9048001004 9161140614 9161140840 9161160814 9161160825 9161540818 9161540818 9161540818 9165540616 9165640816 9616001200 9616001200 9616001200 9616001200 9616001200 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-30080

MS8#,95,RS80..LHD

 1
47170 - VALVE ASSY, BRAKE COMBINATION
47170-10010

MS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)

FOR FRONT DISC BRAKE

 1
47170-30010

MS8#,95,RS80..LHD

FOR FRONT DISC BRAKE

 1
47181 - PLUNGER, DIFFERENTIAL SWITCH
47181-30010

MS8#,95,RS80..LHD

 1
47181A - SPRING, COMPRESSION(FOR DIFFERENTIAL VALVE SWITCH)
90501-05001

MS8#,95,RS80..LHD

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-30070

MS8#,95,RS80..LHD

 1
47190-30070

MS85,95,RS80..LHD

FOR FRONT DISC BRAKE

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-30260

MS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10150

MS8#,95,RS80

 1
90413-10150

MS83,85,95,RS80..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47311-30220

MS8#,95,RS80..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30070

MS8#,95,RS80..LHD

 1
47313-30071

MS8#,95,RS80..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-31323

MS8#,95,RS80

 2
90947-02360

MS8#,95,RS80

FOR FRONT DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-31323

MS8#,95,RS80

 2
90947-02360

MS8#,95,RS80

FOR FRONT DISC BRAKE

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-30090

MS8#,95,RS80..LHD

 1
47314-30091

MS8#,95,RS80..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-30130

MS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-30080

MS83,85,95,RS80

 1
47316-30080

MS83,85,95,RS80..EUR,GEN

 1
47316-30110

MS83,85,95,RS80

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33055

MS83,85,95,RS80

 1
90947-02221

MS83,85,95,RS80

 1
47317A - WAY(FOR BRAKE TUBE)
90412-10041

MS8#,95,RS80

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-30070

MS83,85,95,RS80..BTP,DLX,SAL

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10147

MS8#,95,RS80

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-30070

MS83,85,95,RS80..BTP,DLX,SAL

 1
47321 - TUBE, REAR BRAKE, NO.1
47317-30070

MS8#,95,RS80..LHD

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-30090

MS8#,95,RS80..BTP,DLX,SAL,STD

FOR FRONT DISC BRAKE

 1
47341-30010

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-30090

MS8#,95,RS80..BTP,DLX,SAL,STD

FOR FRONT DISC BRAKE

 1
47341-30010

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
47334 - TUBE, REAR BRAKE, NO.13
47343-30010

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
47334-30090

MS8#,95,RS80..BTP,DLX,SAL,STD

FOR FRONT DISC BRAKE

 1
47334 - TUBE, REAR BRAKE, NO.13
47343-30010

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
47334-30090

MS8#,95,RS80..BTP,DLX,SAL,STD

FOR FRONT DISC BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-30120

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-30070

MS8#,95,RS80

FOR FRONT DISC BRAKE

 1
Common parts
90461-06488
90461-06902
90461-08082
90461-10061
90468-08127
90480-01004
91611-40614
91611-40840
91611-60814
91611-60825
91615-40818
91655-40616
91656-40816
96160-01200
96991-10080
