MS85L-HDW (1976)

Toyota Crown

Production Nov 1976 - Aug 1979
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7611-7908)ATM

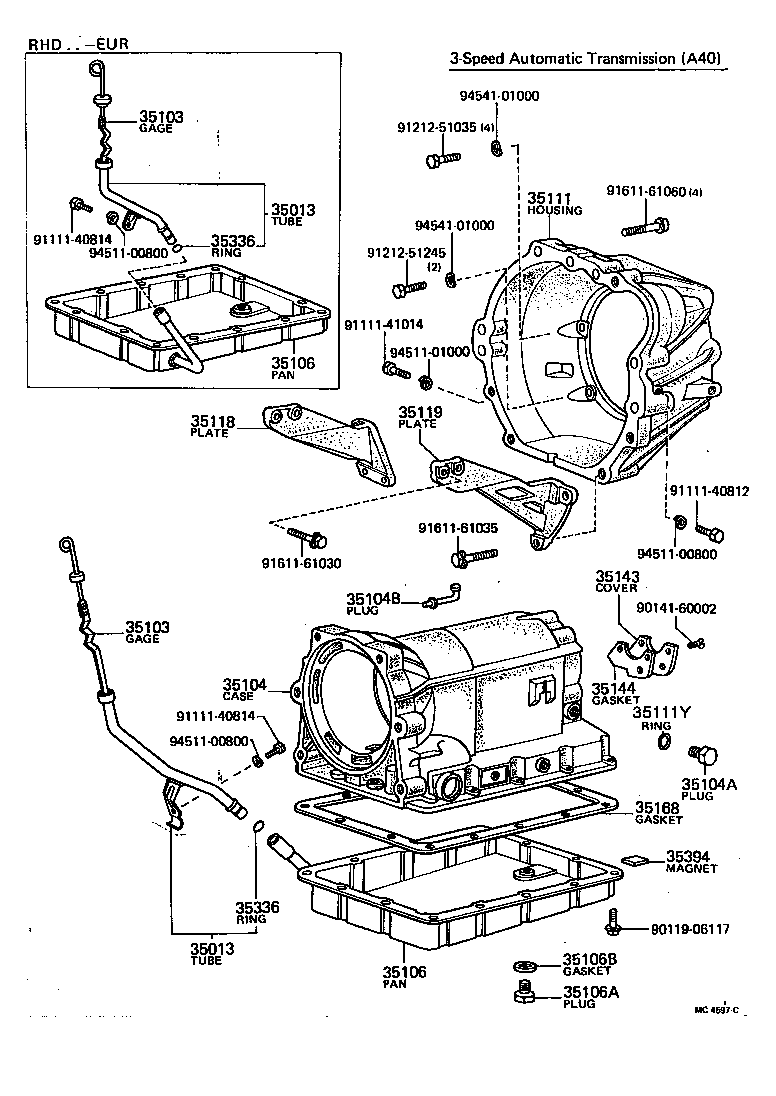

Click highlighted areas on diagram

diagram 35013 35013 35103 35103 35104 35104A 35104B 35106 35106 35106A 35106B 35111 35111Y 35118 35119 35143 35144 35168 35336 35336 35394 9011906117 9014160002 9111140812 9111140814 9111140814 9111141014 9121251035 9121251245 9161161030 9161161035 9161161060 9451100800 9451100800 9451100800 9451101000 9454101000 9454101000
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30031

MS83,85,95..ATM

 1
35013-22091

MS83,85,95..LHD..ATM

 1
35013-22090

MS83,85,95..3FC

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30031

MS83,85,95..ATM

 1
35013-22091

MS83,85,95..LHD..ATM

 1
35013-22090

MS83,85,95..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-22040

MS83,85,95..ATM

 1
35103-22040

MS83,85,95..3FC;MS85..LHD..3HC..BTP;MS85..3HC..(DLX,ROY,SAL)

 1
35103-22040

MS83,85,95..LHD..ATM

 1
35103-30040

MS83,85,95..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-22040

MS83,85,95..ATM

 1
35103-22040

MS83,85,95..3FC;MS85..LHD..3HC..BTP;MS85..3HC..(DLX,ROY,SAL)

 1
35103-22040

MS83,85,95..LHD..ATM

 1
35103-30040

MS83,85,95..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30035

MS83,85,95..ATM

 1
35104-22022

MS83,85,95..ATM

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

MS83,85,95..ATM

 2
44681-36020

MS83,85,95..ATM

 3
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03061

MS83,85,95..ATM

 1
90930-03001

MS83,85,95..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30020

MS83,85,95..ATM

 1
35106-22020

MS83,85,95..LHD..ATM

 1
35106-22020

MS83,85,95..LHD..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30020

MS83,85,95..ATM

 1
35106-22020

MS83,85,95..LHD..ATM

 1
35106-22020

MS83,85,95..LHD..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18049

MS83,85,95..ATM

 1
90341-10078

MS83,85,95..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
90202-10110

MS83,85,95..ATM

 1
12157-10010

MS83,85,95..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-22040

MS83,85,95..ATM

 1
35111-30070

MS83,85,95..ATM

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

MS83,85,95..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-30031

MS83,85,95..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-30031

MS83,85,95..ATM

 1
33119-22030

MS83,85,95..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

MS83,85,95..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

MS83,85,95..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22010

MS83,85,95..ATM

 1
35168-30010

MS83,85,95..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

MS83,85,95..ATM

 1
35336-31011

MS83,85,95..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

MS83,85,95..ATM

 1
35336-31011

MS83,85,95..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

MS83,85,95..ATM

 1
Common parts
90119-06117
90141-60002
91111-40812
91111-40814
91111-41014
91212-51035
91212-51245
91611-61030
91611-61035
91611-61060
94511-00800
94511-01000
94541-01000
