MS85L-HB (1974)
Toyota Crown

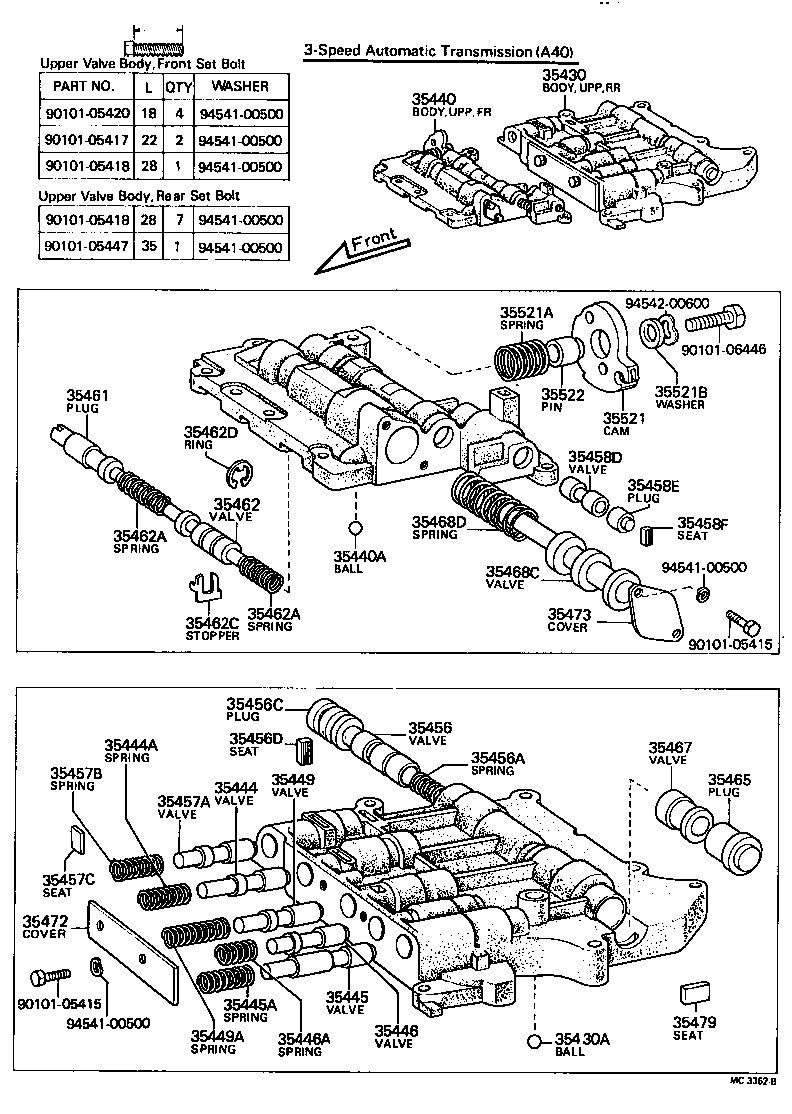

(7611-7908)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22050 |
MS85,95..ATM;MS83..LHD..3FC..EUR;MS83..3FC..(ARL,GEN) |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
MS83,85,95..ATM OD=5.535,RUBBER,OD=5,56,GUM |
3 | ||
| 90360-06023 |
MS83,85,95..ATM 0D=5.56,OD=5,56,STEEL |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22030 |
MS83,85,95..ATM |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22010 |
MS83,85,95..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
MS83,85,95..ATM |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11001 |
MS83,85,95..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
MS83,85,95..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
MS83,85,95..ATM |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
MS83,85,95..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
MS83,85,95..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
MS83,85,95..ATM FOR REAR UPPER VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
MS83,85,95..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30010 |
MS83,85,95..ATM |
1 | ||
| 35456-22010 |
MS83,85,95..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08004 |
MS83,85,95..ATM |
1 | ||
| 90501-08724 |
MS83,85,95..ATM |
1 | ||
| 90501-08328 |
MS83,85,95..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
MS83,85,95..ATM |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
MS83,85,95..ATM |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
MS83,85,95..ATM |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09006 |
MS85,95..ATM;MS83..LHD..3FC..EUR;MS83..3FC..(ARL,GEN) |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
MS83,85,95..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
MS83,85,95..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
MS83,85,95..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
MS83,85,95..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
MS83,85,95..ATM |
1 | ||
| 35461-30010 |
MS83,85,95..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
MS83,85,95..ATM |
1 | ||
| 35462-30010 |
MS83,85,95..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
MS83,85,95..ATM L=19.24,FOR SECONDARY,WD=1.87,CW=8 |
1 | ||
| 90501-10334 |
MS83,85,95..ATM FOR REAR,H=17.5 |
1 | ||
| 90501-12011 |
MS83,85,95..ATM L=39.71,FOR PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12333 |
MS83,85,95..ATM FOR FRONT,H=22.5 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
MS83,85,95..ATM L=19.24,FOR SECONDARY,WD=1.87,CW=8 |
1 | ||
| 90501-10334 |
MS83,85,95..ATM FOR REAR,H=17.5 |
1 | ||
| 90501-12011 |
MS83,85,95..ATM L=39.71,FOR PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12333 |
MS83,85,95..ATM FOR FRONT,H=22.5 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
MS83,85,95..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MS83,85,95..ATM |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
MS83,85,95..ATM |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
MS83,85,95..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
MS83,85,95..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-16683 |
MS83,85,95..ATM |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
MS83,85,95..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
MS83,85,95..ATM |
1 | ||
| 35473-30011 |
MS83,85,95..ATM |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
MS83,85,95..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
MS83,85,95..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
MS83,85,95..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MS83,85,95..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 90101-05415 | ||||
| 90101-05417 | ||||
| 90101-05418 | ||||
| 90101-05420 | ||||
| 90101-05447 | ||||
| 90101-06446 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||

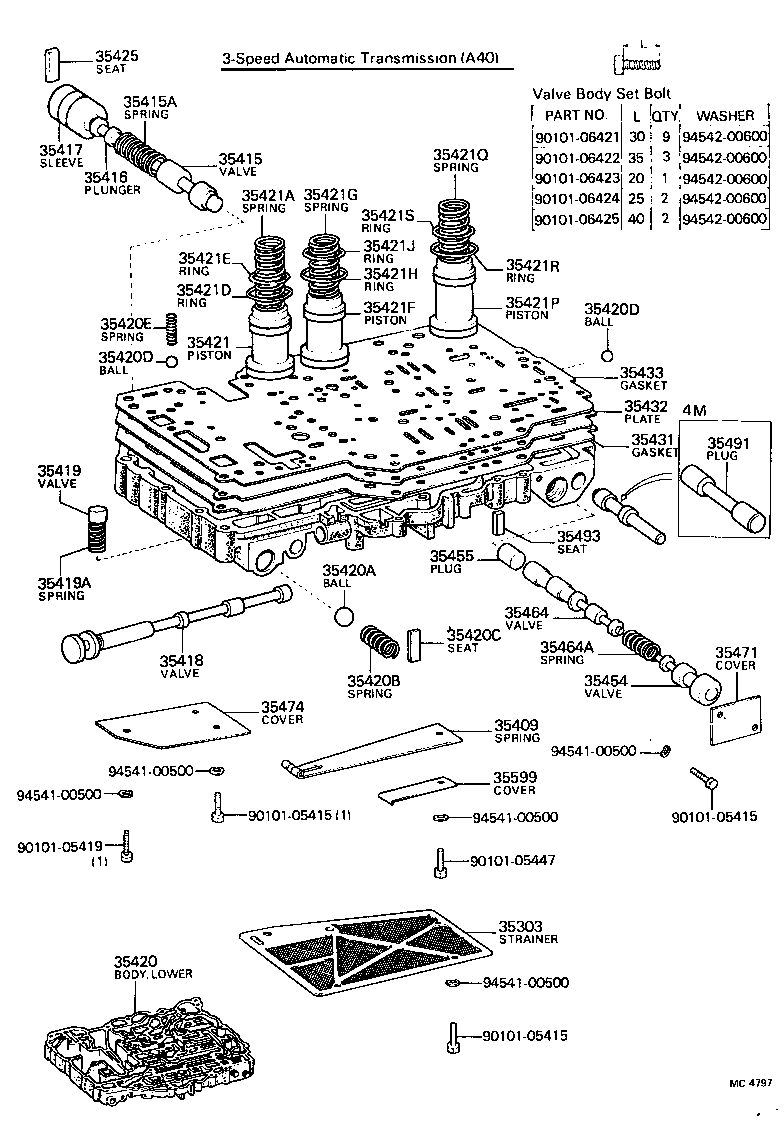

(7410-7611)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30013 |
MS83,85,95..ATM |
1 | ||
| 35303-22021 |
MS83,85,95..ATM |
1 | ||
| 35303-22020 |
MS83,85,95..ATM |
1 | ||
| 35306 - STRAINER SUB-ASSY, REAR OIL | ||||
| 35306-30011 |
MS83,85,95..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30010 |
MS83,85,95..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30011 |
MS83,85,95..ATM |
1 | ||
| 35410-30030 |
MS83,85,95..ATM |
1 | ||
| 35410A - BALL (FOR REVERSE SHIFT RESTRICT) | ||||
| 90360-06004 |
MS83,85,95..ATM |
1 | ||
| 35410C - PLUG (FOR TRANSMISSION VALVE BODY) | ||||
| 44681-36020 |
MS83,85,95..ATM |
2 | ||
| 35410E - BOLT, STUD (FOR TRANSMISSION VALVE BODY) | ||||
| 90116-08017 |
MS83,85,95..ATM |
2 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-30011 |
MS83,85,95..ATM |
1 | ||
| 35415-22020 |
MS83,85,95..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16331 |
MS83,85,95..ATM |
1 | ||
| 90501-16682 |
MS83,85,95..ATM |
1 | ||
| 35415B - RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET) | ||||
| 96151-01500 |
MS83,85,95..ATM |
1 | ||
| 35415C - BOLT, SET (FOR VALVE SPRING) | ||||
| 90113-08024 |
MS83,85,95..ATM |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
MS83,85,95..ATM |
1 | ||
| 35417-30010 |
MS83,85,95..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-22010 |
MS83,85,95..ATM |
1 | ||
| 35418-30011 |
MS83,85,95..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
MS83,85,95..ATM |
1 | ||
| 35419-12010 |
MS83,85,95..ATM |
2 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-05327 |
MS83,85,95..ATM |
2 | ||
| 90501-13674 |
MS83,85,95..ATM |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-30010 |
MS83,85,95..ATM |
1 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35434-30012 |
MS83,85,95..ATM |
1 | ||
| 35434-30011 |
MS83,85,95..ATM |
1 | ||
| 35433-22020 |
MS83,85,95..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22020 |
MS83,85,95..ATM |
1 | ||
| 35432-30012 |
MS83,85,95..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35434-22020 |
MS83,85,95..ATM |
1 | ||
| 35433-30012 |
MS83,85,95..ATM |
1 | ||
| 35433-30013 |
MS83,85,95..ATM |
1 | ||
| 35436 - RETAINER, PRESSURE REGULATOR SPRING | ||||
| 35436-30011 |
MS83,85,95..ATM |
1 | ||
| 35439 - SEAT, PRESSURE REGULATOR VALVE SPRING | ||||
| 35439-30010 |
MS83,85,95..ATM |
2 | ||
| 35439 - SEAT, PRESSURE REGULATOR VALVE SPRING | ||||
| 35439-30010 |
MS83,85,95..ATM |
2 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
MS83,85,95..ATM |
1 | ||
| 35455-30011 |
MS83,85,95..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30010 |
MS83,85,95..ATM |
1 | ||
| 35456-22010 |
MS83,85,95..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08004 |
MS83,85,95..ATM |
1 | ||
| 90501-08724 |
MS83,85,95..ATM |
1 | ||
| 90501-08328 |
MS83,85,95..ATM |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-30020 |
MS83,85,95..ATM |
1 | ||
| 35457-30010 |
MS83,85,95..ATM |
1 | ||
| 35458 - VALVE, THROTTLE RELAY | ||||
| 35458-30010 |
MS83,85,95..ATM |
1 | ||
| 35458A - SPRING, COMPRESSION (FOR THROTTLE RELAY VALVE) | ||||
| 90501-06325 |
MS83,85,95..ATM |
1 | ||
| 35459 - PLUG, THROTTLE RELAY | ||||
| 35459-30010 |
MS83,85,95..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
MS83,85,95..ATM |
1 | ||
| 35461-30010 |
MS83,85,95..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
MS83,85,95..ATM |
1 | ||
| 35462-30010 |
MS83,85,95..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
MS83,85,95..ATM L=19.24,FOR SECONDARY,WD=1.87,CW=8 |
1 | ||
| 90501-10334 |
MS83,85,95..ATM FOR REAR,H=17.5 |
1 | ||
| 90501-12011 |
MS83,85,95..ATM L=39.71,FOR PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12333 |
MS83,85,95..ATM FOR FRONT,H=22.5 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
MS83,85,95..ATM L=19.24,FOR SECONDARY,WD=1.87,CW=8 |
1 | ||
| 90501-10334 |
MS83,85,95..ATM FOR REAR,H=17.5 |
1 | ||
| 90501-12011 |
MS83,85,95..ATM L=39.71,FOR PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-12333 |
MS83,85,95..ATM FOR FRONT,H=22.5 |
1 | ||
| 35462B - PIN, SLOTTED SPRING (FOR THROTTLE VALVE SET) | ||||
| 90254-03011 |
MS83,85,95..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30011 |
MS83,85,95..ATM |
1 | ||
| 35464-22010 |
MS83,85,95..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06460 |
MS83,85,95..ATM WD=0.6,H=18.25 |
1 | ||
| 90501-05416 |
MS83,85,95..ATM WD=0.5,H=18.60 |
1 | ||
| 90501-06461 |
MS83,85,95..ATM WD=0.6,H=16.52 |
1 | ||
| 90501-06684 |
MS83,85,95..ATM |
1 | ||
| 35468 - VALVE, ORIFICE CONTROL | ||||
| 35468-30010 |
MS83,85,95..ATM |
1 | ||
| 35468A - SPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING) | ||||
| 90501-12332 |
MS83,85,95..ATM |
1 | ||
| 35469 - SPACER (FOR VALVE BODY DOWN SHIFT PLUG) | ||||
| 35469-30010 |
MS83,85,95..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
MS83,85,95..ATM |
1 | ||
| 35473-30011 |
MS83,85,95..ATM |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-30010 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 91611-40832 | ||||
| 91611-40840 | ||||
| 91611-40845 | ||||
| 93210-16010 | ||||
| 93220-16016 | ||||
| 93240-16020 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94531-00800 | ||||
| 94542-00600 | ||||
(7611-7908)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30013 |
MS83,85,95..ATM |
1 | ||
| 35303-22021 |
MS83,85,95..ATM |
1 | ||
| 35303-22020 |
MS83,85,95..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22010 |
MS83,85,95..ATM |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-30011 |
MS83,85,95..ATM |
1 | ||
| 35415-22020 |
MS83,85,95..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16331 |
MS83,85,95..ATM |
1 | ||
| 90501-16682 |
MS83,85,95..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22010 |
MS83,85,95..ATM |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
MS83,85,95..ATM |
1 | ||
| 35417-30010 |
MS83,85,95..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-22010 |
MS83,85,95..ATM |
1 | ||
| 35418-30011 |
MS83,85,95..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
MS83,85,95..ATM |
1 | ||
| 35419-12010 |
MS83,85,95..ATM |
2 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-05327 |
MS83,85,95..ATM |
2 | ||
| 90501-13674 |
MS83,85,95..ATM |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-22030 |
MS83,85,95..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
MS83,85,95..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
MS83,85,95..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
MS83,85,95..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
MS83,85,95..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35496-22010 |
MS83,85,95..ATM OD=6.35,RUBBER,OD=6.35,GUM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35495-22010 |
MS83,85,95..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35496-22010 |
MS83,85,95..ATM OD=6.35,RUBBER,OD=6.35,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
MS83,85,95..ATM |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-22010 |
MS83,85,95..ATM |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-20011 |
MS83,85,95..ATM |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
MS83,85,95..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
MS83,85,95..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35421-22020 |
MS83,85,95..ATM |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-20676 |
MS83,85,95..ATM |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
MS83,85,95..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
MS83,85,95..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
MS83,85,95..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20675 |
MS83,85,95..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
MS83,85,95..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
MS83,85,95..ATM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-22010 |
MS83,85,95..ATM |
1 | ||
| 35431 - GASKET,VALVE BODY | ||||
| 35434-30012 |
MS83,85,95..ATM |
1 | ||
| 35434-30011 |
MS83,85,95..ATM |
1 | ||
| 35433-22020 |
MS83,85,95..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22020 |
MS83,85,95..ATM |
1 | ||
| 35432-30012 |
MS83,85,95..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35434-22020 |
MS83,85,95..ATM |
1 | ||
| 35433-30012 |
MS83,85,95..ATM |
1 | ||
| 35433-30013 |
MS83,85,95..ATM |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-22010 |
MS83,85,95..ATM |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
MS83,85,95..ATM |
1 | ||
| 35455-30011 |
MS83,85,95..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30011 |
MS83,85,95..ATM |
1 | ||
| 35464-22010 |
MS83,85,95..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06460 |
MS83,85,95..ATM WD=0.6,H=18.25 |
1 | ||
| 90501-05416 |
MS83,85,95..ATM WD=0.5,H=18.60 |
1 | ||
| 90501-06461 |
MS83,85,95..ATM WD=0.6,H=16.52 |
1 | ||
| 90501-06684 |
MS83,85,95..ATM |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
MS83,85,95..ATM |
1 | ||
| 35474 - COVER, VALVE BODY, NO.4 | ||||
| 35474-22010 |
MS83,85,95..ATM |
1 | ||
| 35491 - PLUG, REVERSE BRAKE | ||||
| 35491-22010 |
MS83,85,95..ATM |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
MS83,85,95..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22010 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 90101-05415 | ||||
| 90101-05419 | ||||
| 90101-05447 | ||||
| 90101-06421 | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06424 | ||||
| 90101-06425 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
