MS83R-KDQ (1976)
Toyota Crown
Production
Apr 1976
-
Feb 1978
Engine
4M
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

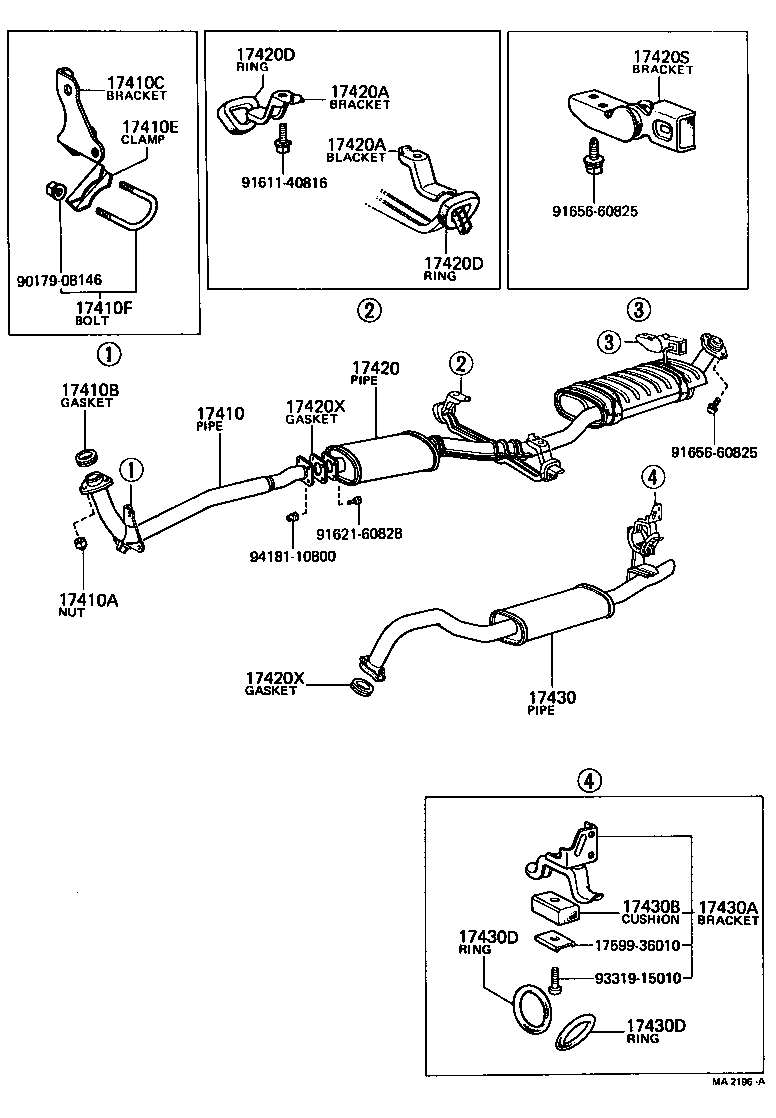

(7604-7611)4M..MS83..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-41120 |
4M..MS8#,95 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
4M..MS83,85..ARL |
3 | ||
| 90170-10114 |
4M..MS8#,95 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06013 |
4M..MS83,85..ARL |
1 | ||
| 17451-41020 |
4M..MS8#,95 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-41050 |
4M..MS8#,95 |
1 | ||
| 17571-45020 |
4M..MS83,85..ARL |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04022 |
4M..MS83,85..ARL |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90118-08132 |
4M..MS83,85..ARL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-45080 |
4M..MS83,85..ARL |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17562-45040 |
4M..MS83,85..ARL |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4M..MS8#,95 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4M..MS8#,95 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-45090 |
4M..MS83..ARL |
1 | ||
| 17430-45210 |
4M..MS83..ARL |
1 | ||
| Common parts | ||||
| 17599-36010 | ||||
| 90179-08146 | ||||
| 91611-40816 | ||||
| 91621-60828 | ||||
| 91656-60825 | ||||
| 93319-15010 | ||||
| 94181-10800 | ||||

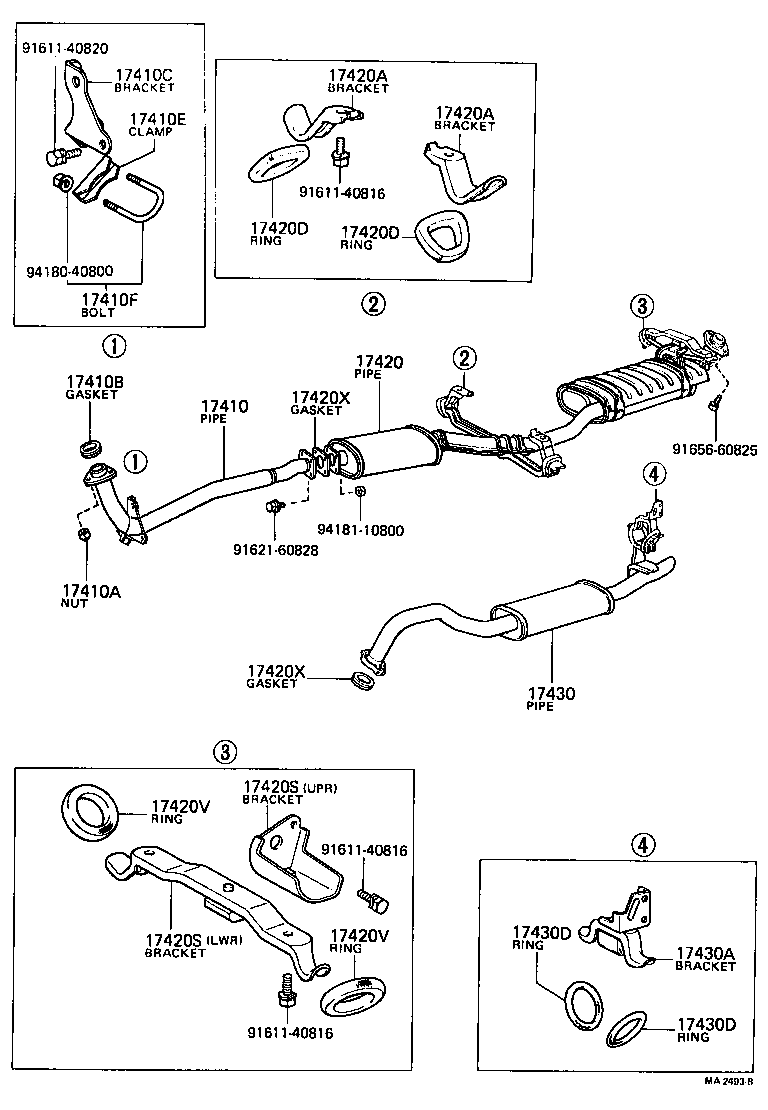

(7611-7802)4M..MS83..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-41120 |
4M..MS8#,95 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
4M..MS83,85..ARL |
3 | ||
| 90170-10114 |
4M..MS8#,95 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06013 |
4M..MS83,85..ARL |
1 | ||
| 17451-41020 |
4M..MS8#,95 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-41050 |
4M..MS8#,95 |
1 | ||
| 17571-45020 |
4M..MS83,85..ARL |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04022 |
4M..MS83,85..ARL |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90118-08132 |
4M..MS83,85..ARL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-45080 |
4M..MS83,85..ARL |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17562-45040 |
4M..MS83,85..ARL |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17562-45040 |
4M..MS83,85..ARL |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4M..MS8#,95 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
4M..MS8#,95 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-45090 |
4M..MS83..ARL |
1 | ||
| 17430-45210 |
4M..MS83..ARL |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91621-60828 | ||||
| 91656-60825 | ||||
| 94180-40800 | ||||
| 94181-10800 | ||||
