MS125R-SEPQF (1984)
Toyota Crown
(8308-8509)MS123,125..RHD

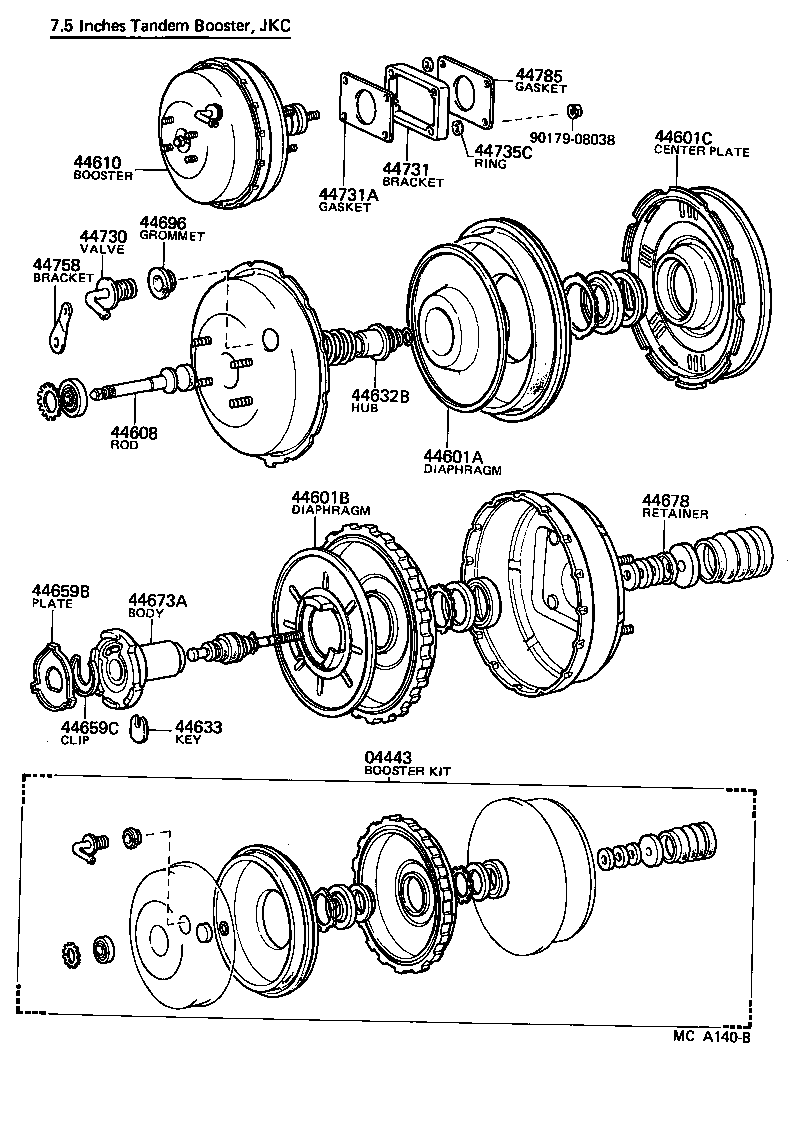

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30460 |
MS12#..RHD |
1 | ||
| 04443-30430 |
MS123,125..RHD |
1 | ||
| 44601A - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, FRONT | ||||
| 44609-30440 |
MS123,125..RHD |
1 | ||
| 44601B - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, REAR | ||||
| 44601-30350 |
MS123,125..RHD |
1 | ||
| 44601C - CENTER PLATE SUB-ASSY, BOOSTER | ||||
| 44606-30440 |
MS123,125..RHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
MS12#..RHD |
1 | ||
| 44608-30440 |
MS123,125..RHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30560 |
MS12#..RHD |
1 | ||
| 44610-30440 |
MS123,125..RHD |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30440 |
MS123,125..RHD |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-30350 |
MS123,125..RHD |
1 | ||
| 44659B - PLATE, BOOSTER RETAINER | ||||
| 44658-30440 |
MS123,125..RHD |
1 | ||
| 44659C - CLIP, BOOSTER | ||||
| 44659-30350 |
MS123,125..RHD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-30350 |
MS123,125..RHD |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
MS123,125..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
MS123,125..RHD |
1 | ||
| 90480-24439 |
MS12#..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
MS12#..RHD |
1 | ||
| 44730-22090 |
MS123,125..RHD |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
LS120,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30050 |
MS123,125..RHD |
1 | ||
| 44758-30100 |
MS12#..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8509- )MS12#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-30460 |
MS12#..RHD |
1 | ||
| 04443-30430 |
MS123,125..RHD |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-20800 |
MS12#..RHD |
1 | ||
| 44608-30440 |
MS123,125..RHD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30560 |
MS12#..RHD |
1 | ||
| 44610-30440 |
MS123,125..RHD |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
MS12#..RHD |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
MS12#..RHD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
MS12#..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
MS12#..RHD |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
MS12#..RHD |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-20800 |
MS12#..RHD |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-30560 |
MS12#..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
MS123,125..RHD |
1 | ||
| 90480-24439 |
MS12#..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
MS12#..RHD |
1 | ||
| 44730-22090 |
MS123,125..RHD |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-30060 |
LS120,MS12#,YS120 |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
LS120,MS12#,YS120 |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-30050 |
MS123,125..RHD |
1 | ||
| 44758-30100 |
MS12#..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
LS120,MS12#,YS120 |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
