MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS12#..LHD

Click highlighted areas on diagram

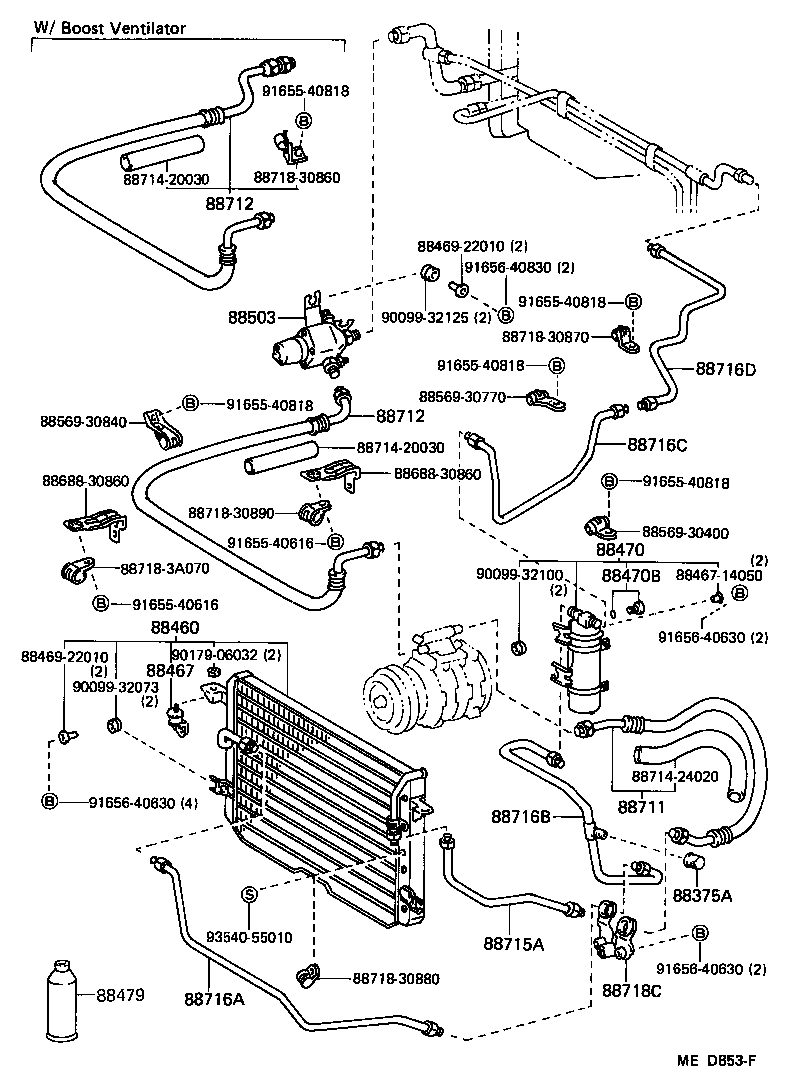

diagram 88375A 88460 88467 8846714050 8846922010 8846922010 88470 88470B 88479 88503 8856930400 8856930770 8856930840 8868830860 8868830860 88711 88712 88712 8871420030 8871420030 8871424020 88715A 88716A 88716B 88716C 88716D 8871830860 8871830870 8871830880 8871830890 887183A070 88718C 9009932073 9009932100 9009932125 9017906032 9165540616 9165540616 9165540818 9165540818 9165540818 9165540818 9165540818 9165640630 9165640630 9165640630 9165640830 9354055010
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

MS12#,YS120

 1
88460 - CONDENSER ASSY, COOLER
88460-30460

MS12#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

MS12#,YS120

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30470

MS12#,YS120

 1
88470B - BOLT, FUSE
88475-12020

LS120,MS12#,YS120

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LS120,MS12#,YS120

400G,400G

 3
88503 - REGULATOR ASSY, PRESSURE
88503-30390

MS12#..LHD

W/HEATER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30570

MS12#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30710

MS12#..LHD

W/HEATER

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30710

MS12#..LHD

W/HEATER

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30320

MS12#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30680

MS12#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30690

LS120,MS12#,YS120

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30700

MS12#

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-30710

MS12#..LHD

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88569-30820

MS12#

 1
Common parts
88467-14050
88469-22010
88569-30400
88569-30770
88569-30840
88688-30860
88714-20030
88714-24020
88718-30860
88718-30870
88718-30880
88718-30890
88718-3A070
90099-32073
90099-32100
90099-32125
90179-06032
91655-40616
91655-40818
91656-40630
91656-40830
93540-55010

(8308- )MS12#..SED

Click highlighted areas on diagram

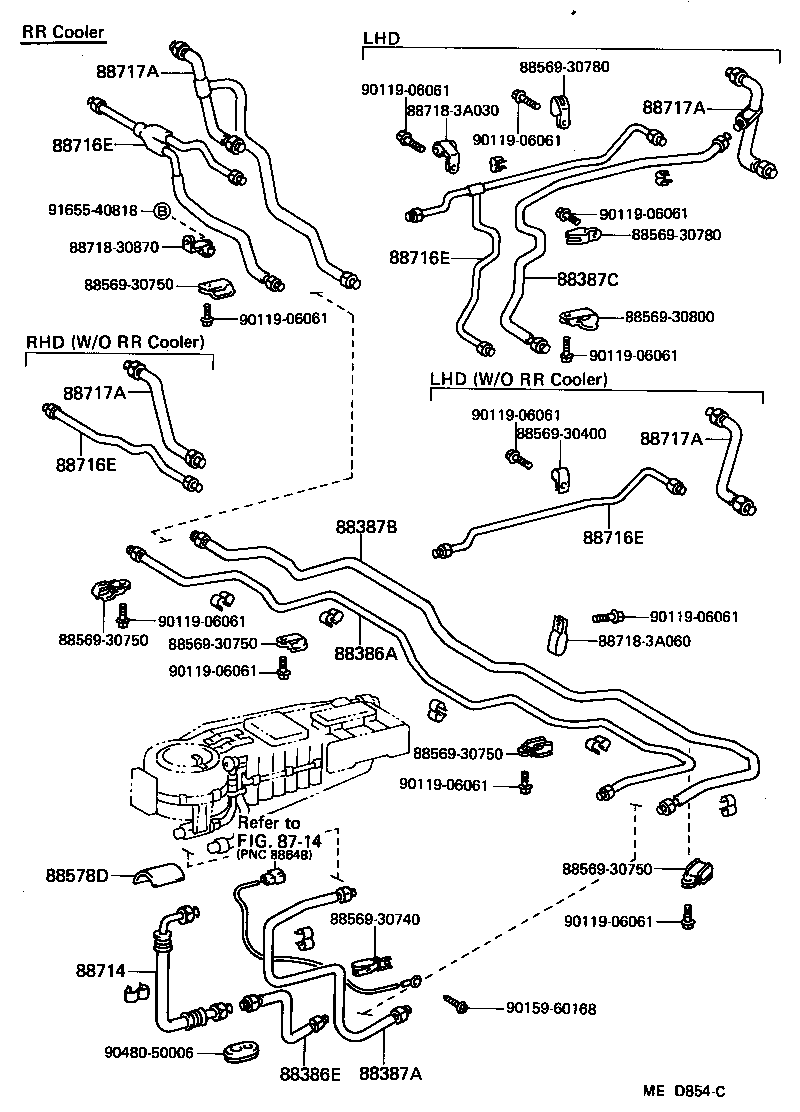

diagram 8714 88386A 88386E 88387A 88387B 88387C 8856930400 8856930740 8856930750 8856930750 8856930750 8856930750 8856930750 8856930780 8856930780 8856930800 88578D 88714 88716E 88716E 88716E 88716E 88717A 88717A 88717A 88717A 8871830870 887183A030 887183A060 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9011906061 9015960168 9048050006 9165540818
Part # Description Qty Price
88386A - PIPE, REAR COOLER REFRIGERANT LIQUID, A (FROM CONDENSER
88726-30650

MS123,125

 1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88726-30770

MS123,125

 1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88727-30570

MS123,125

 1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88727-30590

MS123,125

 1
88387C - PIPE, REAR COOLER REFRIGERANT SUCTION, C
88727-30610

MS12#..(HT,SED)..LHD..(ROY,SAL)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-30410

MS12#..(HT,SED)..(ROY,SAL)

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-30270

MS123,125

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30670

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30670

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30670

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30670

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30620

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30620

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30620

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30620

MS12#..(HT,SED)..LHD..(ROY,SAL)

W/RR COOLER

 1
Common parts
88569-30400
88569-30740
88569-30750
88569-30780
88569-30800
88718-30870
88718-3A030
88718-3A060
90119-06061
90159-60168
90480-50006
91655-40818
Linked diagrams
8714
