MS123L-SEPQF (1983)
Toyota Crown

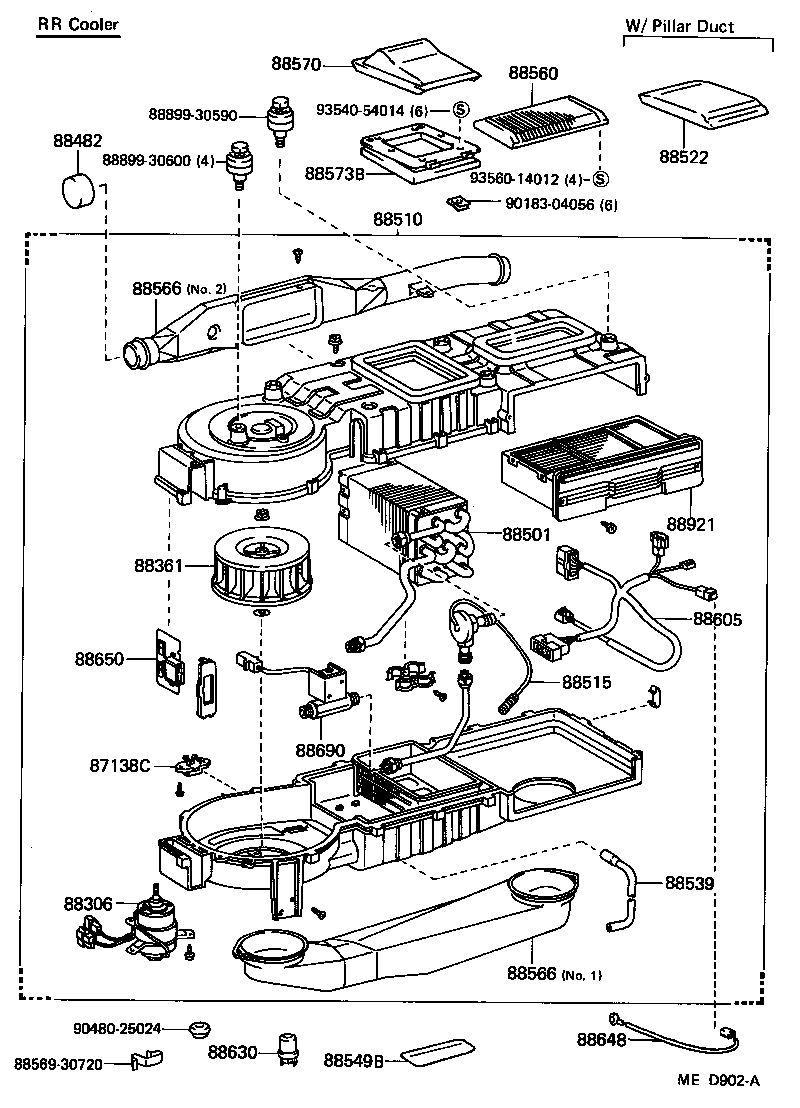

(8308- )MS12#..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-30290 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30320 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-30280 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-30260 |
MS12#..SED RR COOLER |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30580 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88501-30600 |
LS120,MS12#,YS120..LHD FR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30860 |
MS12#..SED RR COOLER |
1 | ||
| 88510-30890 |
MS12#..LHD..ROY FR COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-3044014 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER,BLUE,BLUE,TRIM8# |
1 | ||
| 88522-3044015 |
MS12#..SED RR COOLER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88522-3044012 |
MS12#..SED RR COOLER,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30580 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88539-30590 |
LS120,MS12#,YS120 FR COOLER |
1 | ||
| 88549B - PLATE, CAUTION | ||||
| 88549-30260 |
MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-3030015 |
MS12#..SED BEIGE,BEIGE,TRIM4# |
1 | ||
| 88561-3030012 |
MS12#..SED DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88561-3030014 |
MS12#..(HT,SED)..(ROY,SAL) BLUE,BLUE,TRIM8# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30720 |
MS12#..(HT,SED)..(ROY,SAL) NO.1 |
1 | ||
| 88576-30730 |
MS12#..(HT,SED)..(ROY,SAL) NO.2 |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88576-30720 |
MS12#..(HT,SED)..(ROY,SAL) NO.1 |
1 | ||
| 88576-30730 |
MS12#..(HT,SED)..(ROY,SAL) NO.2 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-3063004 |
MS122..SED;MS123,125..EUG,GEN,SWZ W/MOON ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 88570-3063002 |
MS122..SED;MS123,125..EUG,GEN,SWZ W/MOON-ROOF,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 88570-3063005 |
MS122..SED;MS123,125..EUG,GEN,SWZ W/MOON ROOF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88573B - BASE, GRILLE | ||||
| 88573-30510 |
MS122..SED;MS123,125..EUG,GEN,SWZ W/MOON-ROOF |
1 | ||
| 88573-30500 |
MS12#..(HT,SED)..(ROY,SAL) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30470 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88608-30490 |
MS12#..LHD..ROY |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS120,MS12#,YS120 B4 TYPE,FR COOLER |
3 | ||
| 90987-02004 |
MS12#..SED M4 TYPE,RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30530 |
MS12#..(HT,SED)..(ROY,SAL) |
2 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30470 |
MS12#..ROY FR COOLER |
1 | ||
| 88650-30450 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-30450 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88921 - FILTER, AIR PURIFIER, NO.1 | ||||
| 88926-30080 |
MS12#..SED RR COOLER |
1 | ||
| Common parts | ||||
| 88569-30720 | ||||
| 88899-30590 | ||||
| 88899-30600 | ||||
| 90183-04056 | ||||
| 90480-25024 | ||||
| 93540-54014 | ||||
| 93560-14012 | ||||
(8308- )ROY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30580 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88501-30600 |
LS120,MS12#,YS120..LHD FR COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30860 |
MS12#..SED RR COOLER |
1 | ||
| 88510-30890 |
MS12#..LHD..ROY FR COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30310 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30820 |
MS12#..ROY NO.1 |
1 | ||
| 88688-30870 |
MS12#,YS120 NO.2 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-30820 |
MS12#..ROY NO.1 |
1 | ||
| 88688-30870 |
MS12#,YS120 NO.2 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30580 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88539-30590 |
LS120,MS12#,YS120 FR COOLER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30470 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| 88608-30490 |
MS12#..LHD..ROY |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS120,MS12#,YS120 B4 TYPE,FR COOLER |
3 | ||
| 90987-02004 |
MS12#..SED M4 TYPE,RR COOLER |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS120,MS12#,YS120 B4 TYPE,FR COOLER |
3 | ||
| 90987-02004 |
MS12#..SED M4 TYPE,RR COOLER |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
MS12#,YS120 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30470 |
MS12#..ROY FR COOLER |
1 | ||
| 88650-30450 |
MS12#..(HT,SED)..(ROY,SAL) RR COOLER |
1 | ||
| Common parts | ||||
| 88897-30580 | ||||
| 90159-60195 | ||||
| 90179-06069 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
