MS123L-SEPQF (1983)
Toyota Crown
Production
Aug 1983
-
Oct 1984
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

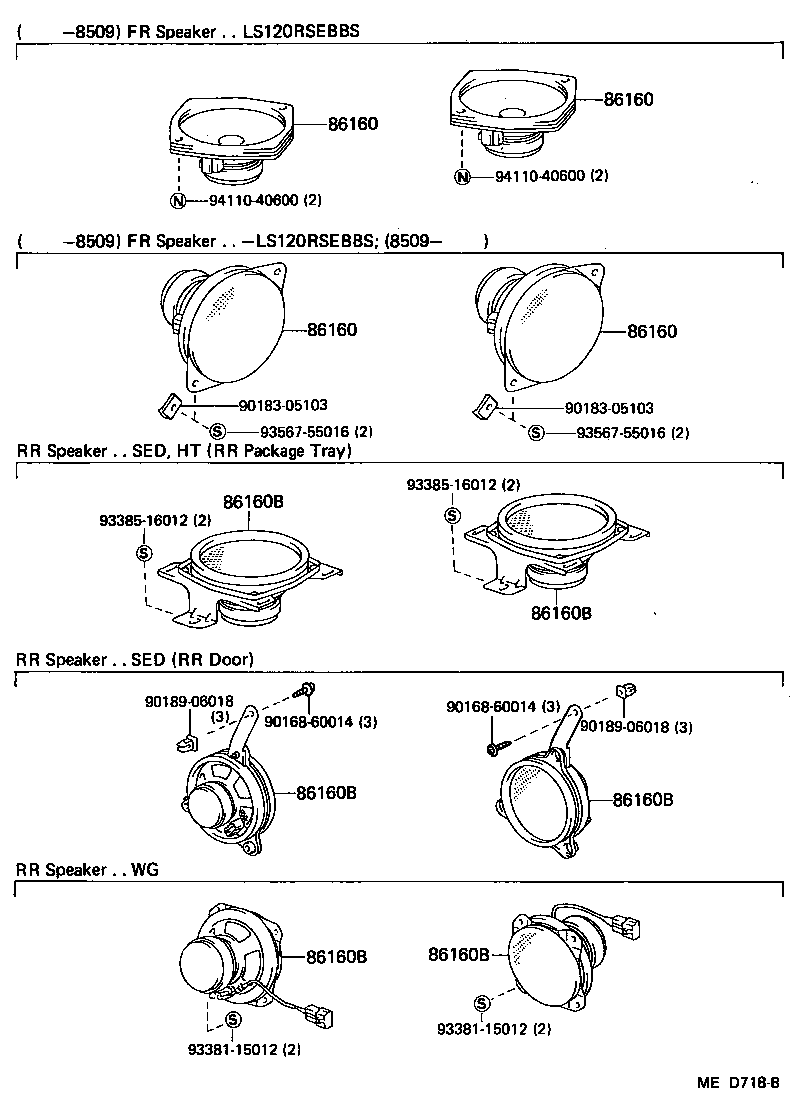

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12170 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12170 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12170 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12170 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-30210 |
MS12#..ROY RH DOOR |
1 | ||
| 86160-30180 |
MS12#..ROY RR PACKAGE TRAY |
2 | ||
| 86160-30220 |
MS12#..ROY LH DOOR |
1 | ||
| Common parts | ||||
| 90168-60014 | ||||
| 90183-05103 | ||||
| 90189-06018 | ||||
| 93381-15012 | ||||
| 93385-16012 | ||||
| 93567-55016 | ||||
| 94110-40600 | ||||
