MS123L-SEPQF (1983)
Toyota Crown
Production
Aug 1983
-
Oct 1984
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

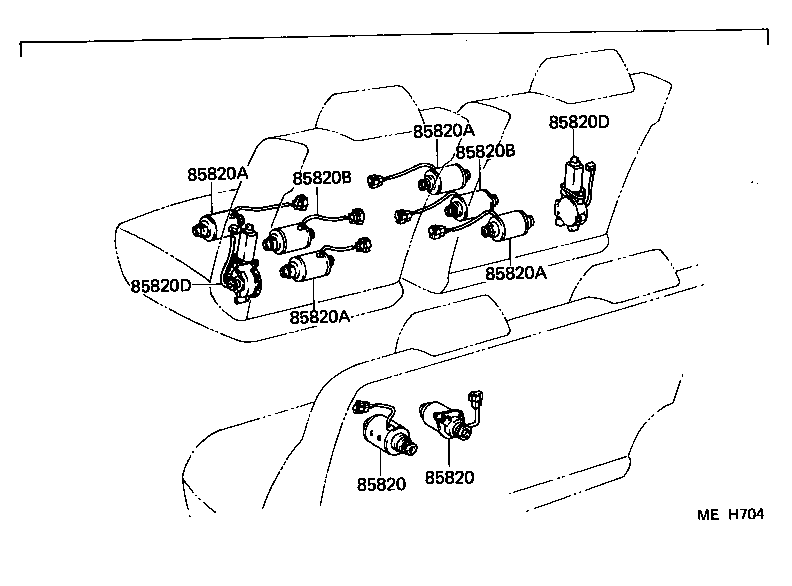

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85820 - MOTOR ASSY, POWER SEAT (FOR REAR) | ||||
| 85820-30110 |
MS12#..ROY..(GEN,SAA) RR-RH |
1 | ||
| 85820-30120 |
MS12#..ROY..(GEN,SAA) RR-LH |
1 | ||
| 85820 - MOTOR ASSY, POWER SEAT (FOR REAR) | ||||
| 85820-30110 |
MS12#..ROY..(GEN,SAA) RR-RH |
1 | ||
| 85820-30120 |
MS12#..ROY..(GEN,SAA) RR-LH |
1 | ||
| 85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
2 | ||
| 85820B - MOTOR ASSY, POWER SEAT (FOR FRONT SLIDE) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
1 | ||
| 85820B - MOTOR ASSY, POWER SEAT (FOR FRONT SLIDE) | ||||
| 85820-40070 |
MS12#..4FC..ROY..(GEN,SAA) |
1 | ||
| 85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING) | ||||
| 85820-30140 |
MS12#..LHD..ROY LH |
1 | ||
| 85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING) | ||||
| 85820-30140 |
MS12#..LHD..ROY LH |
1 | ||
