MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

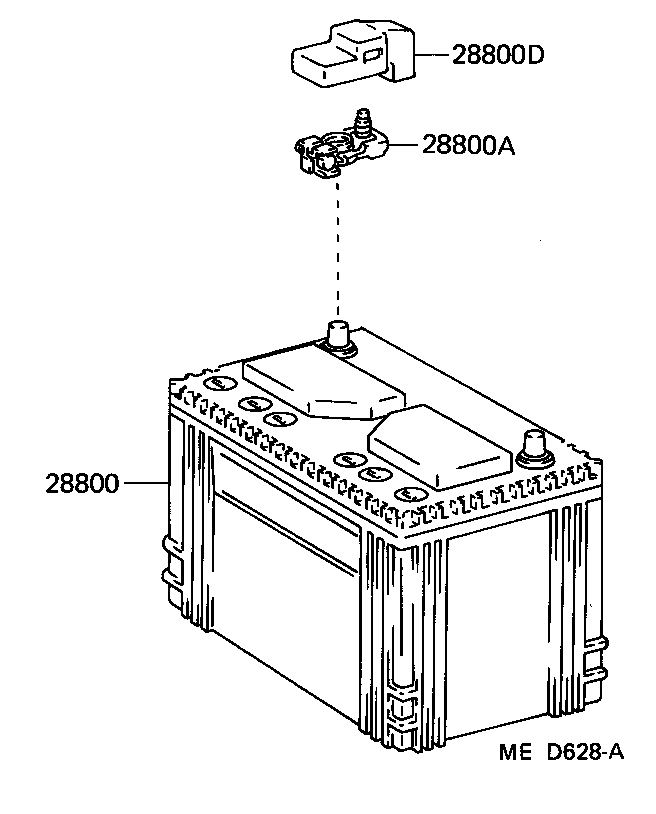

Click highlighted areas on diagram

diagram 28800 28800A 28800D
Part # Description Qty Price
28800 - BATTERY
28800-43250

5M#,6MGE,3Y..MS12#,YS120..ARL,EUG,GEN,SAA

55D23L,55D23L-MF

 1
28800-45050

3Y..YS120..STD;5M#,6MGE..MS12#..EUG,GEN,SAA,SWZ

75D31L,75D31L(N70ZL-MF)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05023

2L,5M#,3Y..LS120,MS122,123,YS120

TERMINAL ID=17.5

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

2L,5M#,3Y..LS120,MS122,123,YS120

 1
