MS123L-SEPQF (1983)
Toyota Crown
Production
Aug 1983
-
Oct 1984
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )MS12#,YS120..LHD

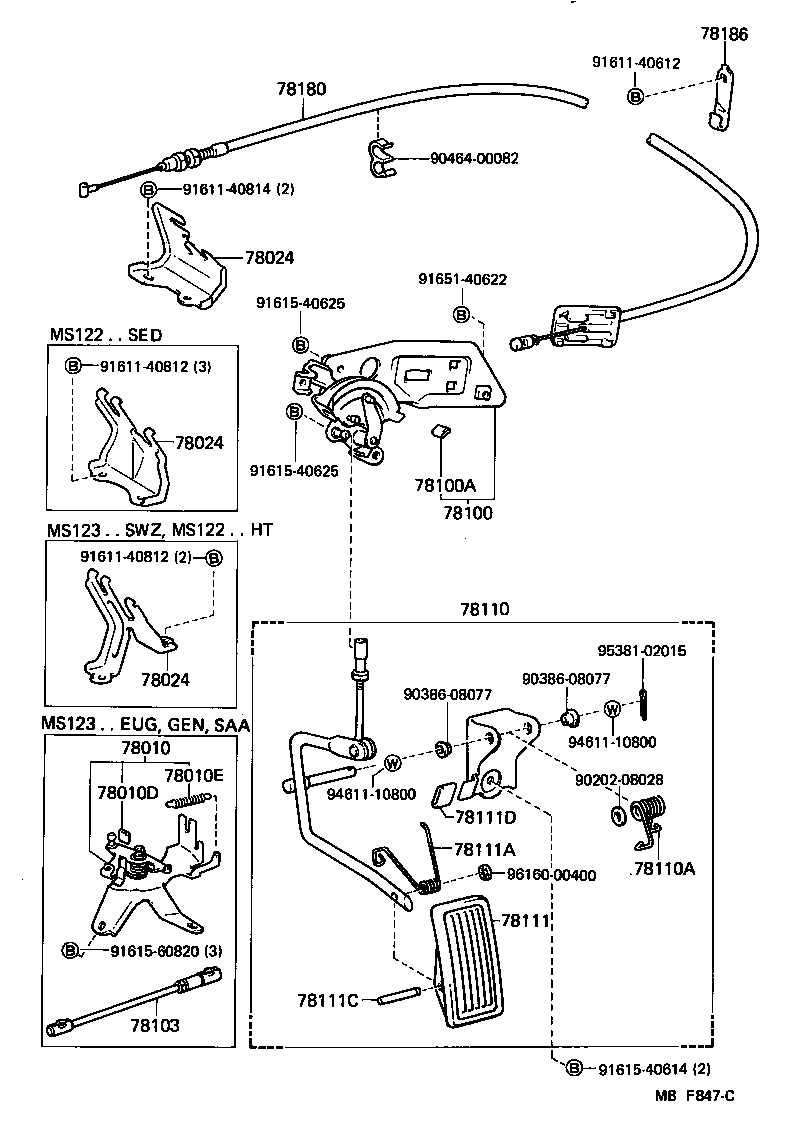

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30530 |
MS123,125..LHD..4FC..(EUG,GEN,SAA) W/AUTO DRIVE |
1 | ||
| 78100-30550 |
MS123,125..LHD..4FC..(EUG,GEN,SAA) W/O AUTO DRIVE |
1 | ||
| 78010D - CUSHION (FOR ACCELERATOR LINK) | ||||
| 78118-12010 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 78010E - SPRING,TENSION (FOR ACCELERATOR LINK) | ||||
| 90507-09001 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-30500 |
MS12#,YS120..LHD |
1 | ||
| 78100A - STOPPER, ACCELERATOR LINK | ||||
| 78119-30050 |
LS120,MS12#,YS120..LHD |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-30270 |
MS123..LHD..(EUG,GEN,SAA) |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-30390 |
MS123,125..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23025 |
MS123,125..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
LS120,MS12#,YS120..LHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-16064 |
LS120,MS12#,YS120..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
LS120,MS12#,YS120..LHD |
1 | ||
| 78111D - STOPPER (FOR ACCELERATOR PEDAL) | ||||
| 78119-30040 |
LS120,MS12#,YS120..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-30540 |
MS123,125..LHD..(EUG,GEN,SAA) |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 90386-08077 | ||||
| 90464-00082 | ||||
| 91611-40612 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91615-40614 | ||||
| 91615-40625 | ||||
| 91615-60820 | ||||
| 91651-40622 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
