MS123L-SEPQF (1983)
Toyota Crown
(8308- )MS123,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10020 |
MS123,125 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
MS12#,YS120 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LS120,MS12#,YS120 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30090 |
LS120,MS12#,YS120..SED..LHD |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
MS12#..ROY..(GEN,SAA) FR |
1 | ||
| 69749-30030 |
LS120,MS12#,YS120 RR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30270 |
MS123,125 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LS120,MS12#,YS120 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LS120,MS12#,YS120 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22912 |
MS123,125 L=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
MS123,125 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30140 |
LS120,MS12#,YS120..SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30040 |
MS123,125 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
LS120,MS12#,YS120 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-3005005 |
MS12#,YS120;LS120..4F,5F;LS120..LHD..STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 77051-3005004 |
MS123,YS120;LS120..4F,5F;LS120..LHD..STD BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3005002 |
LS120,MS12#,YS120..ROY,SAL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-30110 |
LS120,MS12#,YS120..SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
LS120,MS12#,YS120 |
2 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09011 |
LS120,MS12#,YS120..HT,SED L=590 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
LS120,MS12#,YS120 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
LS120,MS12#,YS120 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30080 |
MS123,125 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30080 |
MS123,125 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30060 |
MS123 |
2 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-30010 |
MS123,125 70X70 |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-30010 |
MS123,125 50X80 |
5 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
LS120,MS12#,YS120..HT,SED |
3 | ||
| Common parts | ||||
| 90119-08019 | ||||
| 90159-50004 | ||||
| 90159-50064 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90183-05005 | ||||
| 90460-63009 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-10240 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

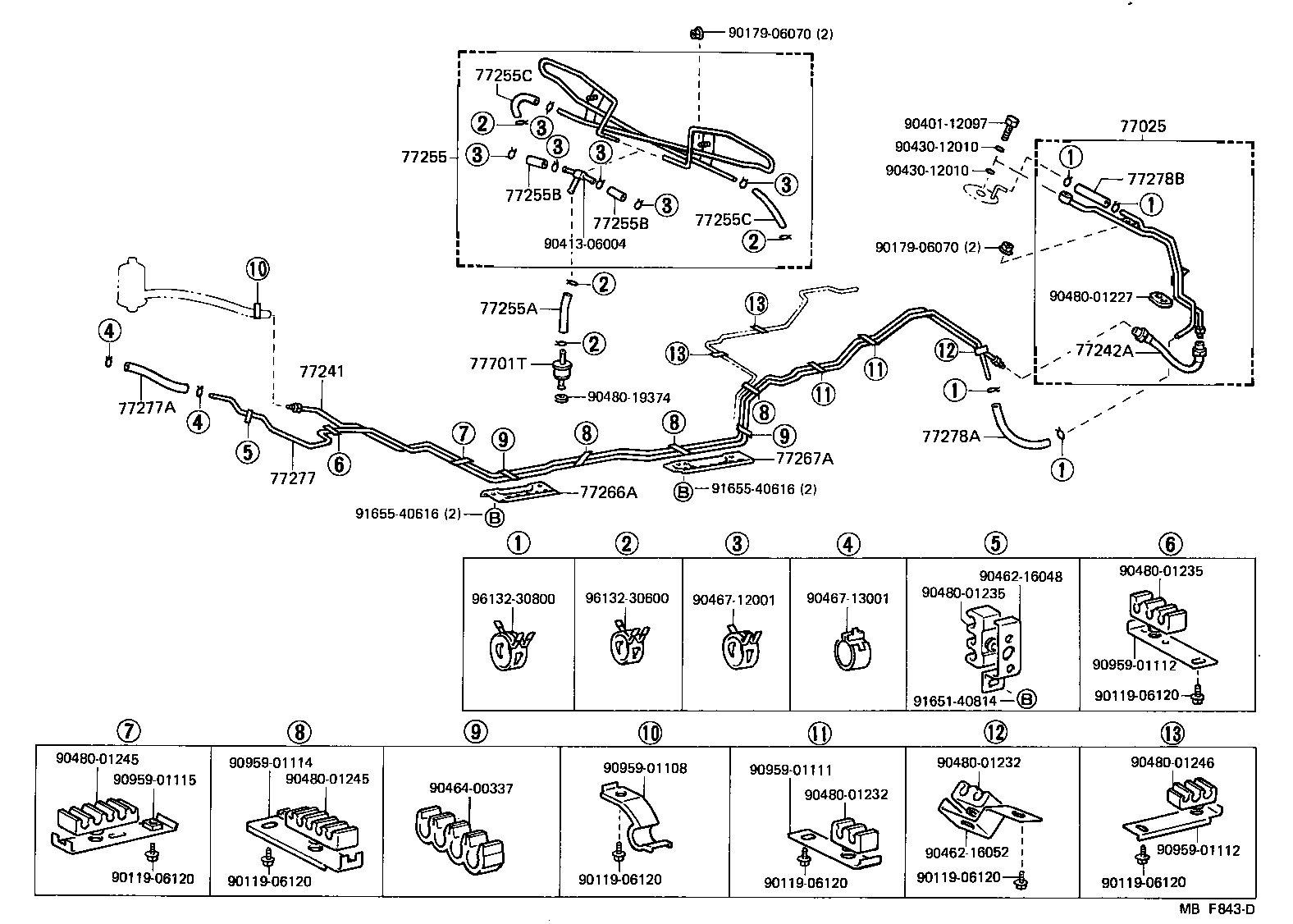

(8308- )MS123,125..EUG,GEN,SWZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30140 |
MS123 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-30130 |
MS123..ROY |
1 | ||
| 77252-30130 |
MS123 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-30090 |
MS123,125 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77028-30070 |
LS120,MS12#,YS120..HT,SED |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06040 |
MS123,125..EUG,GEN,SWZ *H,L=320 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
LS120,MS12#,YS120..HT,SED *H,L=50 |
2 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
LS120,MS12#,YS120..HT,SED *H,L=50 |
2 | ||
| 77255C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
LS120,MS12#,YS120..HT,SED *H,L=160 |
2 | ||
| 77255C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
LS120,MS12#,YS120..HT,SED *H,L=160 |
2 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-30040 |
LS120,MS12#,YS120 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
LS120,MS12#,YS120 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30090 |
MS123..ROY |
1 | ||
| 77256-30090 |
MS123 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-41070 |
MS123,125 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-08020 |
MS123,125 *H,L=190,ID=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-08020 |
MS123,125 *H,L=120,ID=7.6 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
LS120,MS12#,YS120..SED..(EUG,GEN,SWZ) |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06070 | ||||
| 90401-12097 | ||||
| 90413-06004 | ||||
| 90430-12010 | ||||
| 90462-16048 | ||||
| 90462-16052 | ||||
| 90464-00337 | ||||
| 90467-12001 | ||||
| 90467-13001 | ||||
| 90480-01227 | ||||
| 90480-01232 | ||||
| 90480-01235 | ||||
| 90480-01245 | ||||
| 90480-01246 | ||||
| 90480-19374 | ||||
| 90959-01108 | ||||
| 90959-01111 | ||||
| 90959-01112 | ||||
| 90959-01114 | ||||
| 90959-01115 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
