MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )HT,SED

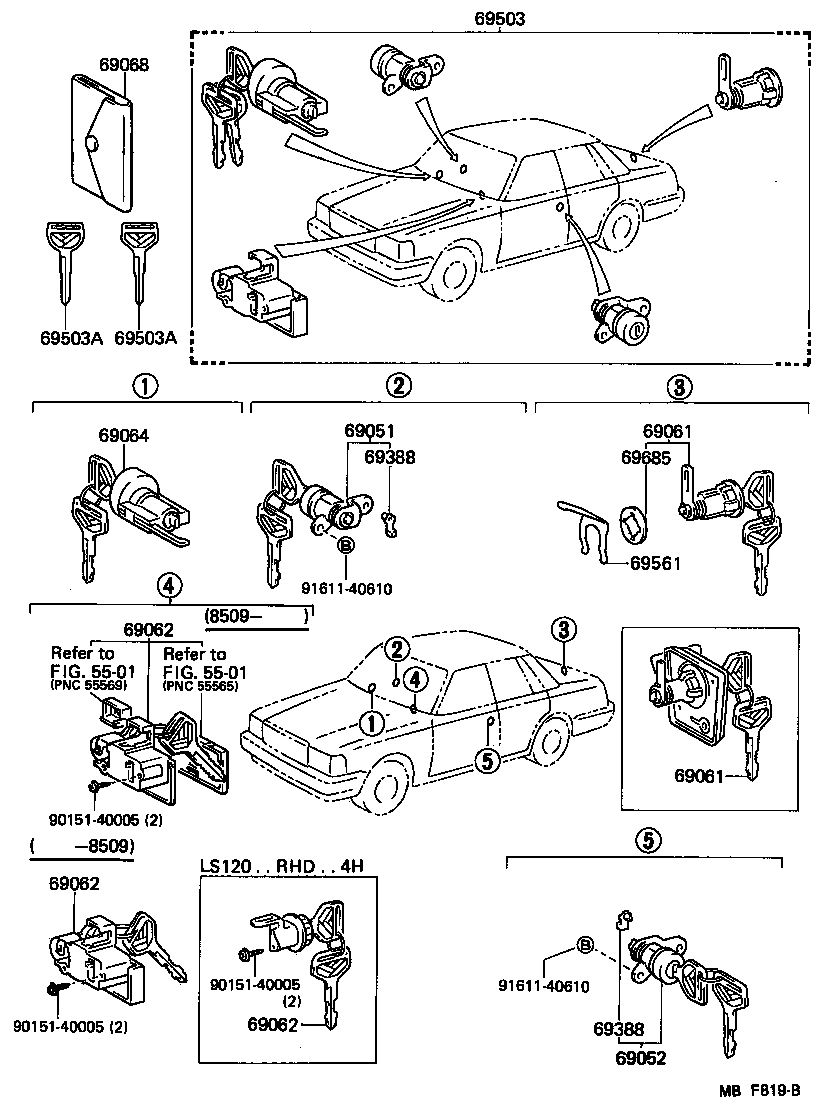

Click highlighted areas on diagram

diagram 5501 5501 69051 69052 69061 69061 69062 69062 69062 69064 69068 69388 69388 69503 69503A 69503A 69561 69685 9015140005 9015140005 9015140005 9161140610 9161140610
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-30140

LS120,MS12#,YS120..ARL,GEN,SAA

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-30130

LS120,MS12#,YS120..ARL,GEN,SAA

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-30100

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-30100

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-3006002

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

DEEP MAROON,RED/MAROON,TRIM3#

 1
69056-3006004

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
69056-3006005

LS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)

BEIGE,BEIGE,TRIM4#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-3006002

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

DEEP MAROON,RED/MAROON,TRIM3#

 1
69056-3006004

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
69056-3006005

LS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)

BEIGE,BEIGE,TRIM4#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-3006002

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

DEEP MAROON,RED/MAROON,TRIM3#

 1
69056-3006004

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

BLUE,BLUE,TRIM8#

 1
69056-3006005

LS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)

BEIGE,BEIGE,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-30040

LS120,MS12#,YS120..ARL,GEN,SAA

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

LS120,MS12#,YS120

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30040

LS120,MS12#,YS120

RH

 1
69759-30050

LS120,MS12#,YS120

LH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-30040

LS120,MS12#,YS120

RH

 1
69759-30050

LS120,MS12#,YS120

LH

 1
69503 - CYLINDER SET, LOCK
69005-3036005

LS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)

BEIGE,BEIGE,TRIM4#

 1
69005-3036002

LS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)

DEEP MAROON,RED/MAROON,TRIM3#

 1
69005-3036004

LS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)

BLUE,BLUE,TRIM8#

 1
69503A - KEY, BLANK
90999-00100

LS120,MS12#,YS120..ARL,GEN,SAA

SUB KEY,SUB KEY

 1
90999-00099

LS120,MS12#,YS120..ARL,GEN,SAA

MASTER KEY,MASTER KEY

 1
69503A - KEY, BLANK
90999-00100

LS120,MS12#,YS120..ARL,GEN,SAA

SUB KEY,SUB KEY

 1
90999-00099

LS120,MS12#,YS120..ARL,GEN,SAA

MASTER KEY,MASTER KEY

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-30040

LS120,MS12#,YS120..SED

 1
Common parts
90151-40005
91611-40610
Linked diagrams
5501
