MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )SED,WG

Click highlighted areas on diagram

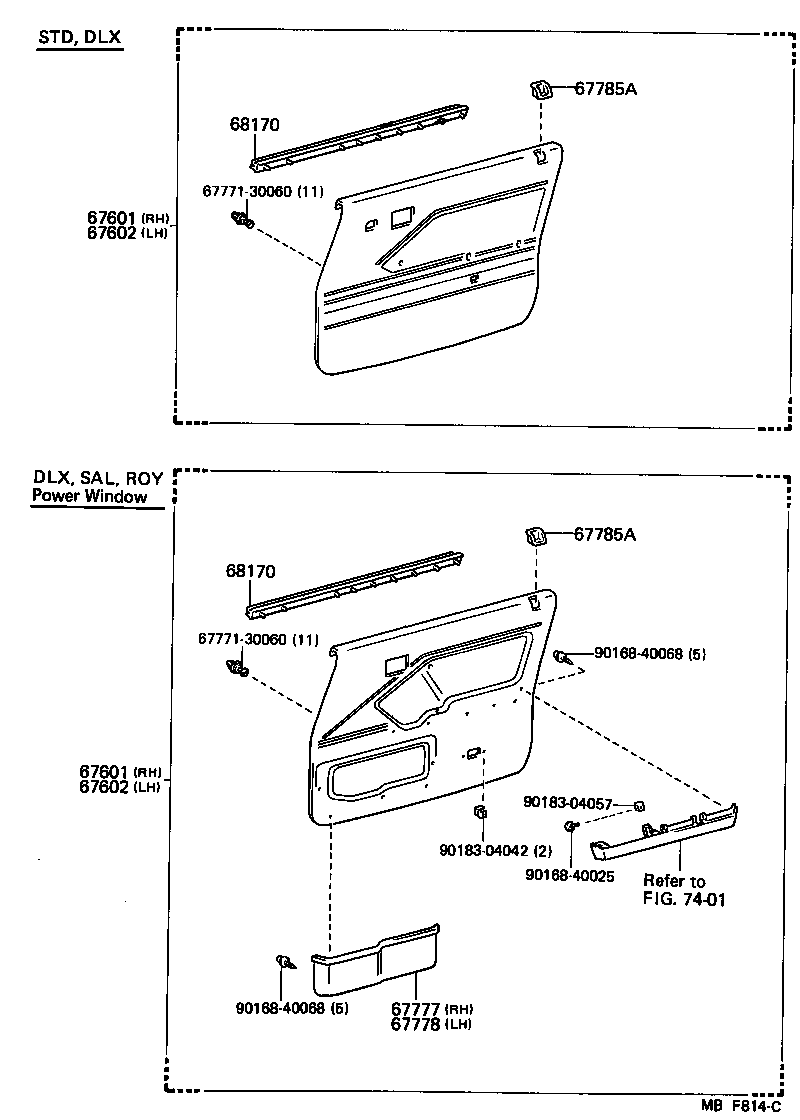

diagram 67601 67601 67602 67602 6777130060 6777130060 67777 67778 67785A 67785A 68170 68170 7401 9016840025 9016840068 9016840068 9018304042 9018304057
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-3A44002

MS12#..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
67610-3A44004

MS12#..ROY

BLUE,BLUE,TRIM8#

 1
67610-3A44005

MS12#..ROY

BEIGE,BEIGE,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-3A44002

MS12#..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
67610-3A44004

MS12#..ROY

BLUE,BLUE,TRIM8#

 1
67610-3A44005

MS12#..ROY

BEIGE,BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-3A55004

MS12#..ROY

BLUE,BLUE,TRIM8#

 1
67620-3A55005

MS12#..ROY

BEIGE,BEIGE,TRIM4#

 1
67620-3A55002

MS12#..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-3A55004

MS12#..ROY

BLUE,BLUE,TRIM8#

 1
67620-3A55005

MS12#..ROY

BEIGE,BEIGE,TRIM4#

 1
67620-3A55002

MS12#..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-3004002

LS120,MS12#,YS120..ROY,SAL

DEEP MAROON,RED/MAROON,TRIM3#

 1
67770-3004004

LS120,MS12#,YS120..SED..(ROY,SAL)

BLUE,BLUE,TRIM8#

 1
67770-3004005

LS120,MS12#,YS120..ROY,SAL

BEIGE,BEIGE,TRIM4#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67780-3001002

LS120,MS12#,YS120..ROY,SAL

DEEP MAROON,RED/MAROON,TRIM3#

 1
67780-3001004

LS120,MS12#,YS120..SED..(ROY,SAL)

BLUE,BLUE,TRIM8#

 1
67780-3001005

LS120,MS12#,YS120..ROY,SAL

BEIGE,BEIGE,TRIM4#

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67785-3005002

LS120,MS12#,YS120..ROY,SAL

DEEP MAROON,RED/MAROON,TRIM3#

 2
67785-3005005

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 2
67785-3005004

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 2
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67785-3005002

LS120,MS12#,YS120..ROY,SAL

DEEP MAROON,RED/MAROON,TRIM3#

 2
67785-3005005

MS12#,YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 2
67785-3005004

LS120,MS12#,YS120..SED

BLUE,BLUE,TRIM8#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-30120

LS120,MS12#,YS120..SED,WG

LH

 1
68170-30170

LS120,MS12#,YS120..SED,WG

RH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-30120

LS120,MS12#,YS120..SED,WG

LH

 1
68170-30170

LS120,MS12#,YS120..SED,WG

RH

 1
Common parts
67771-30060
90168-40025
90168-40068
90183-04042
90183-04057
Linked diagrams
7401

(8308- )SED,WG

Click highlighted areas on diagram

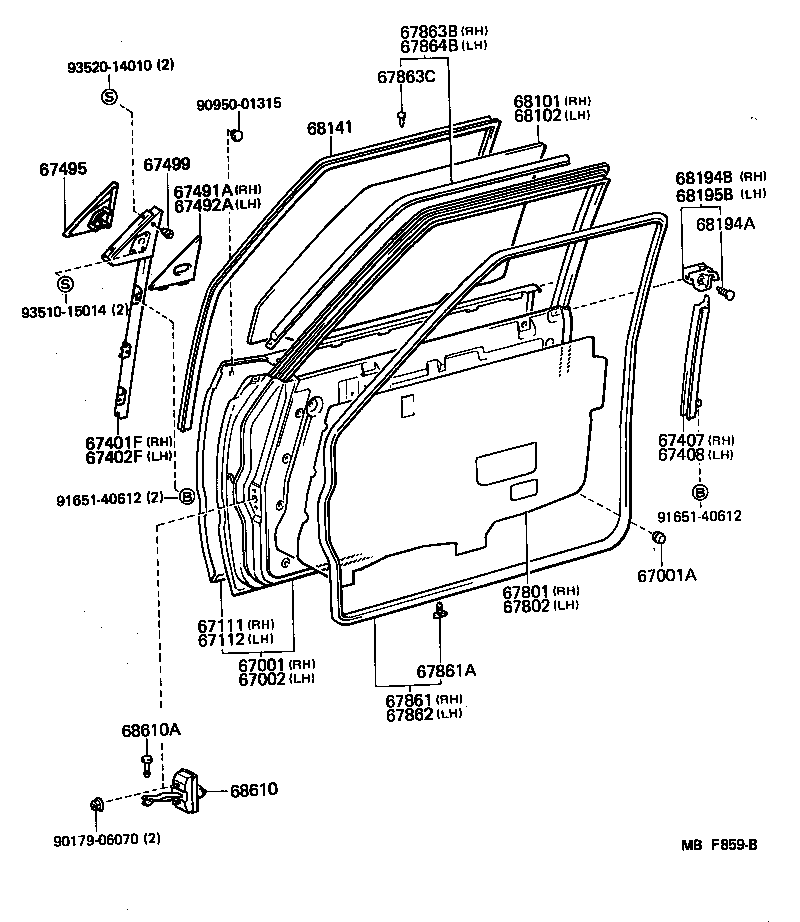

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67407 67408 67491A 67492A 67495 67499 67801 67802 67861 67861A 67862 67863B 67863C 67864B 68101 68102 68141 68194A 68194B 68195B 68610 68610A 9017906070 9095001315 9165140612 9165140612 9351015014 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-30450

LS120,MS12#,YS120..EUG,GEN,SWZ

 1
67001-30480

MS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL

*SAA

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09121

LS120,MS12#,YS120

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-30530

LS120,MS12#,YS120..EUG,GEN,SWZ

 1
67002-30560

MS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL

*SAA

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-30190

LS120,MS12#,YS120..SED,WG

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-30250

LS120,MS12#,YS120

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-30150

LS120,MS12#,YS120..SED,WG

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-30150

LS120,MS12#,YS120..SED,WG

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-30070

LS120,MS12#,YS120..SED,WG

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-30070

LS120,MS12#,YS120..SED,WG

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-30030

LS120,MS12#,YS120..(SED,WG)..(ROY,SAL)

W/ELECTRONIC MIRROR

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-30030

LS120,MS12#,YS120..(SED,WG)..(ROY,SAL)

W/ELECTRONIC MIRROR

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

LS120,MS12#,YS120..SED,WG

 2
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-30220

LS120,MS12#,YS120..ROY,SAL

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67832-30090

LS120,MS12#,YS120..ROY,SAL

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-30140

LS120,MS12#,YS120..SED,WG

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

LS120,MS12#,YS120..SED,WG

 44
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-30140

LS120,MS12#,YS120..SED,WG

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-30060

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

 1
67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67868-30040

LS120,MS12#,YS120..ROY,SAL

RR

 2
67869-30020

LS120,MS12#,YS120..ROY,SAL

FR

 2
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-30060

LS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-30320

LS120,MS12#,YS120..SED,WG

*TT,T=4.0

 1
68111-30340

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

BRONZE,*TT,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-30270

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

BRONZE,*TT,T=4.0

 1
68112-30250

LS120,MS12#,YS120..SED,WG

*TT,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-30120

LS120,MS12#,YS120..SED

 2
68194A - CLIP(FOR FRONT DOOR BELT SEAL)
67869-12010

LS120,MS12#,YS120..SED,WG

 2
68194B - SEAL, FRONT DOOR BELT, REAR RH
68194-30020

LS120,MS12#,YS120..SED,WG

 1
68195B - SEAL, FRONT DOOR BELT, REAR LH
68195-30030

LS120,MS12#,YS120..SED,WG

 1
68610 - CHECK ASSY, FRONT DOOR
68610-30020

LS120,MS12#,YS120

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-30010

LS120,MS12#,YS120

 2
Common parts
90179-06070
90950-01315
91651-40612
93510-15014
93520-14010
