MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

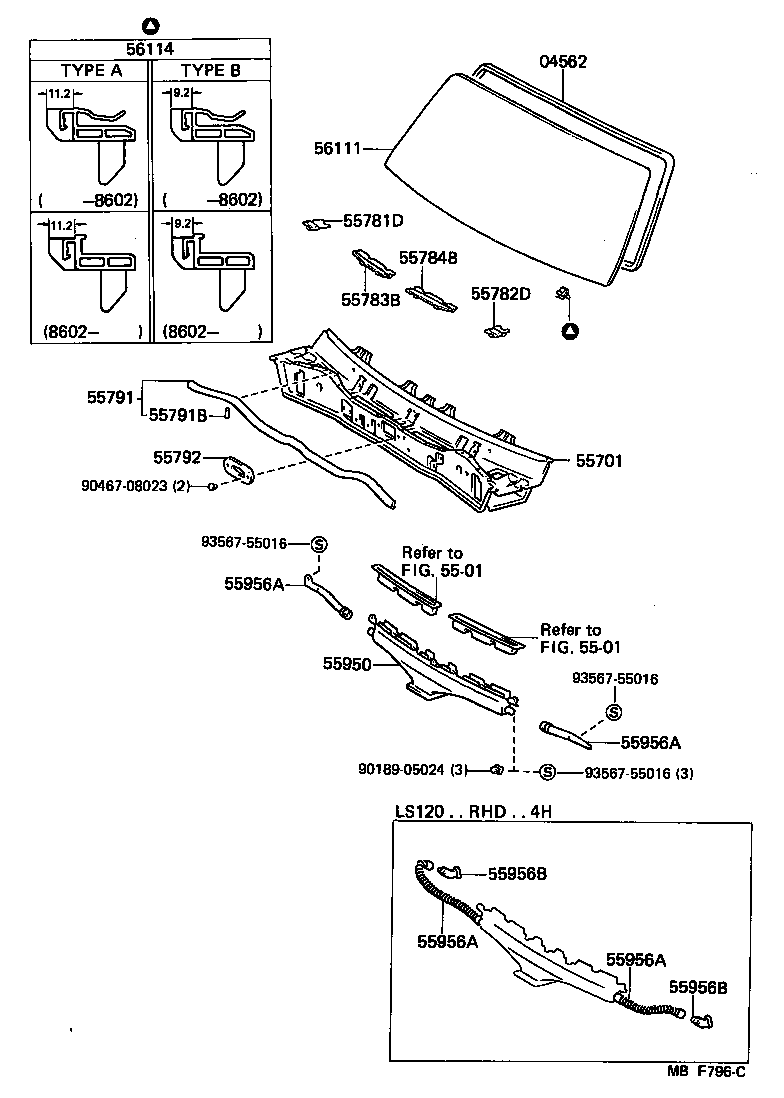

Click highlighted areas on diagram

diagram 04562 5501 5501 55701 55781D 55782D 55783B 55784B 55791 55791B 55792 55950 55956A 55956A 55956A 55956A 55956B 55956B 56111 56114 9018905024 9046708023 9356755016 9356755016 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

LS120,MS12#,YS120

 1
55701 - PANEL SUB-ASSY, COWL
55700-30420

MS12#,YS120..LHD

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30030

LS120,MS12#,YS120..LHD

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-30010

LS120,MS12#,YS120

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-30030

LS120,MS12#,YS120

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-30070

LS120,MS12#,YS120

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-08041

LS120,MS12#,YS120

BLACK

 8
90467-08044

LS120,MS12#,YS120

DARK GRAY

 6
55792 - COVER, WIPER MOTOR SERVICE HOLE
55793-24010

LS120,MS12#,YS120

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-30050

LS120,MS12#,YS120..LHD

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30010

LS120,MS12#,YS120..LHD

RH

 1
55972-30020

LS120,MS12#,YS120..LHD

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30010

LS120,MS12#,YS120..LHD

RH

 1
55972-30020

LS120,MS12#,YS120..LHD

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30010

LS120,MS12#,YS120..LHD

RH

 1
55972-30020

LS120,MS12#,YS120..LHD

LH

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-30010

LS120,MS12#,YS120..LHD

RH

 1
55972-30020

LS120,MS12#,YS120..LHD

LH

 1
56111 - GLASS, WINDSHIELD
56111-30520

LS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)

BRONZE,*LAM,T=5.3

 1
56111-30490

LS120,MS12#,YS120..(SED,WG)..(ROY,SAL)..(GEN,SAA)

SUN SHADE,*TL,T=5.3

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30020

LS120,MS12#,YS120

TYPE B

 2
56114-30010

LS120,MS12#,YS120

TYPE A

 2
Common parts
90189-05024
90467-08023
93567-55016
Linked diagrams
5501
