MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

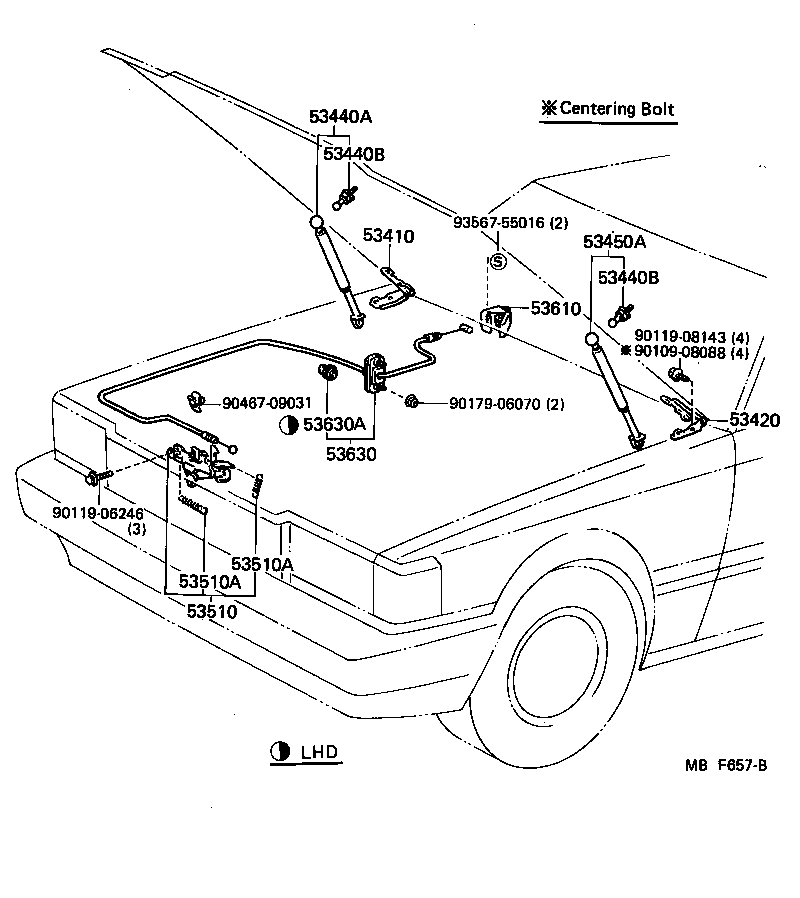

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440B 53450A 53510 53510A 53510A 53610 53630 53630A 9010908088 9011906246 9011908143 9017906070 9046709031 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-30060

LS120,MS12#,YS120

 1
53420 - HINGE ASSY, HOOD, LH
53420-30060

LS120,MS12#,YS120

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-39025

LS120,MS12#,YS120

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-30010

LS120,MS12#,YS120

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-30010

LS120,MS12#,YS120

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-39025

LS120,MS12#,YS120

 1
53510 - LOCK ASSY, HOOD
53510-30130

LS120,MS12#,YS120..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18024

LS120,MS12#,YS120

L=54

 1
90506-09029

LS120,MS12#,YS120

WD=0.9,L=40

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18024

LS120,MS12#,YS120

L=54

 1
90506-09029

LS120,MS12#,YS120

WD=0.9,L=40

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-3005004

LS120,MS12#,YS120..SED..LHD

BLUE,BLUE,TRIM8#

 1
53601-3005002

LS120,MS12#,YS120..LHD..(ROY,SAL)

DEEP MAROON,RED/MAROON,TRIM3#

 1
53601-3005005

LS120,MS12#,YS120..LHD

BEIGE,BEIGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30140

LS120,MS12#,YS120..LHD

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-15194

LS120,MS12#,YS120..LHD

 1
Common parts
90109-08088
90119-06246
90119-08143
90179-06070
90467-09031
93567-55016
