MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS123,125

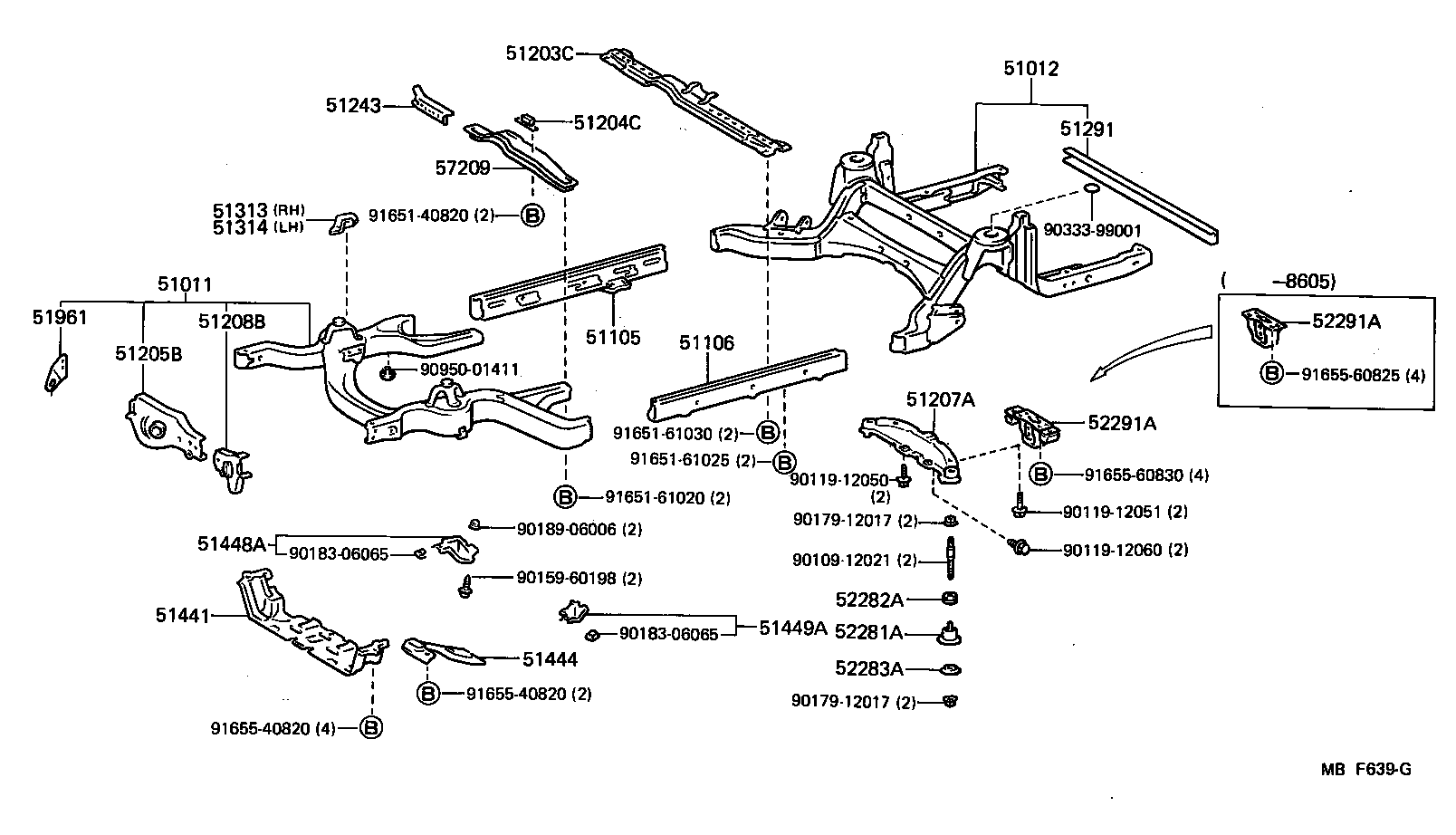

Click highlighted areas on diagram

diagram 51011 51012 51105 51106 51203C 51204C 51205B 51207A 51208B 51243 51291 51313 51314 51441 51444 51448A 51449A 51961 52281A 52282A 52283A 52291A 52291A 57209 9010912021 9011912050 9011912051 9011912060 9015960198 9017912017 9017912017 9018306065 9018306065 9018906006 9033399001 9095001411 9165140820 9165161020 9165161025 9165161030 9165540820 9165540820 9165560825 9165560830
Part # Description Qty Price
51011 - RAIL SUB-ASSY, FRONT FRAME
51011-30330

LS120,MS12#

 1
51012 - RAIL SUB-ASSY, REAR FRAME
51012-30260

MS123,125

 1
51105 - RAIL SUB-ASSY, CENTER FRAME, RH
51105-30060

LS120,MS12#,YS120

 1
51106 - RAIL SUB-ASSY, CENTER FRAME, LH
51106-30060

LS120,MS12#,YS120

 1
51203C - CROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT
51203-30100

MS123,125

 1
51205B - SUPPORT SUB-ASSY, STRUT BAR, RH
51205-30060

LS120,MS12#,YS120

 1
51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT
51207-30060

MS123,125

 1
51208B - SUPPORT SUB-ASSY, STRUT BAR, LH
51208-30030

LS120,MS12#,YS120

 1
51243 - MEMBER, ANTI SHAKE
51243-30010

LS120,MS12#,YS120

 1
51291 - CROSSMEMBER, FRAME, REAR
51291-30080

LS120,MS12#,YS120..SED

 1
51313 - GUSSET, FRONT FRAME, LOWER RH
51313-30050

LS120,MS12#,YS120

 1
51314 - GUSSET, FRONT FRAME, LOWER LH
51314-30050

LS120,MS12#,YS120

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-30080

LS120,MS12#,YS120

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-30100

MS12#

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-30040

LS120,MS12#,YS120

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-30040

LS120,MS12#,YS120

 1
52281A - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-30010

MS123

 2
52282A - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-30010

MS123

 2
52283A - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30010

MS123,125

 2
52291A - CUSHION, DIFFERENTIAL SUPPORT MEMBER, REAR
52291-30020

MS123,125

 1
52291A - CUSHION, DIFFERENTIAL SUPPORT MEMBER, REAR
52291-30020

MS123,125

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
51022-30070

MS12#..ATM

 1
Common parts
90109-12021
90119-12050
90119-12051
90119-12060
90159-60198
90179-12017
90183-06065
90189-06006
90333-99001
90950-01411
91651-40820
91651-61020
91651-61025
91651-61030
91655-40820
91655-60825
91655-60830
