MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS123,125..LHD

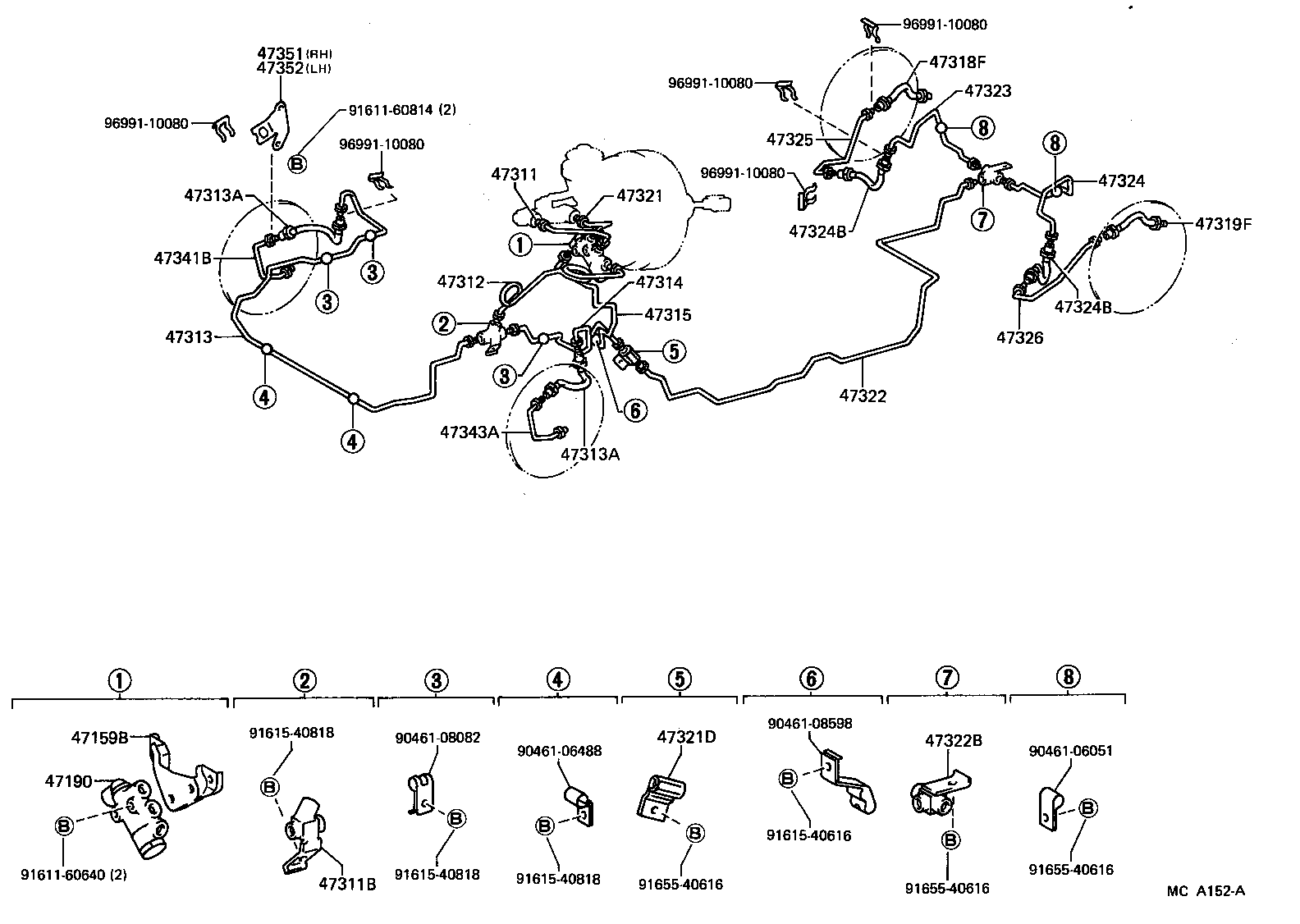

Click highlighted areas on diagram

diagram 47159B 47190 47311 47311B 47312 47313 47313A 47313A 47314 47315 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47324B 47324B 47325 47326 47341B 47343A 47351 47352 9046106051 9046106488 9046108082 9046108598 9161160640 9161160814 9161540616 9161540818 9161540818 9161540818 9165540616 9165540616 9165540616 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159B - BRACKET, PROPORTIONING & BY-PASS VALVE
47159-30150

LS120,MS12#,YS120

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-30130

MS123,125..ROY

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-30380

MS123,125..ARL,EUG,GEN,SAA

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10166

MS123,125..LHD..(EUG,GEN,SAA)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30180

MS123,125..LHD..(EUG,GEN,SAA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30150

LS120,MS12#,YS120..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02361

LS120,MS12#,YS120

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02361

LS120,MS12#,YS120

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-30170

LS120,MS12#,YS120..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-30310

MS123..LHD..(EUG,GEN)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96940-39905

MS123,125

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96940-39905

MS123,125

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30100

MS123,125..ARL,EUG,GEN,SAA

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10116

LS120,MS12#,YS120

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30080

MS123,125

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10157

MS123,125

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30100

MS123,125

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30060

MS123,125

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-32105

MS123,125

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-32105

MS123,125

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-30010

MS123,125

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-30010

MS123,125

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-30020

LS120,MS12#,YS120

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-30020

LS120,MS12#,YS120

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-30160

LS120,MS12#,YS120

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-30080

LS120,MS12#,YS120

 1
Common parts
90461-06051
90461-06488
90461-08082
90461-08598
91611-60640
91611-60814
91615-40616
91615-40818
91655-40616
96991-10080
