MS123L-SEPQF (1983)
Toyota Crown
(8308- )MS123,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

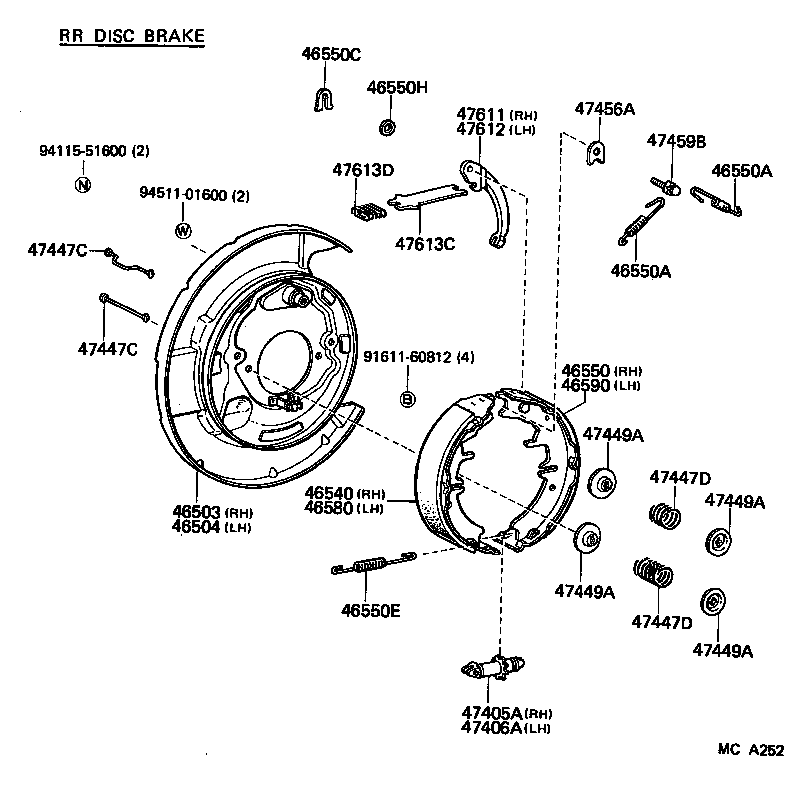

| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30050 |
MS123,125 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30050 |
MS123,125 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-24010 |
MS123,125 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-24010 |
MS123,125 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16007 |
MS123,125 SECONDARY |
2 | ||
| 90506-16005 |
MS123,125 PRIMARY |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16007 |
MS123,125 SECONDARY |
2 | ||
| 90506-16005 |
MS123,125 PRIMARY |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
MS123,125 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
MS123,125 |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
MS123,125 T=0.3,T=0.3 |
1 | ||
| 90564-09185 |
MS123,125 T=0.6,T=0.6 |
1 | ||
| 90564-09186 |
MS123,125 T=0.9,T=0.9 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-24010 |
MS123,125 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-24010 |
MS123,125 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MS123;MS122,125..ROY |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MS123;MS122,125..ROY |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22020 |
MS123,125 SECONDARY |
2 | ||
| 47447-20030 |
MS123,125 PRIMARY |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-22020 |
MS123,125 SECONDARY |
2 | ||
| 47447-20030 |
MS123,125 PRIMARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
MS123,125 SECONDARY |
2 | ||
| 90501-14049 |
MS123,125 PRIMARY |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
MS123,125 SECONDARY |
2 | ||
| 90501-14049 |
MS123,125 PRIMARY |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
MS123,125 INNER,T=1.0 |
4 | ||
| 47449-30030 |
MS123,125 OUTER,T=0.8 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
MS123,125 INNER,T=1.0 |
4 | ||
| 47449-30030 |
MS123,125 OUTER,T=0.8 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
MS123,125 INNER,T=1.0 |
4 | ||
| 47449-30030 |
MS123,125 OUTER,T=0.8 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
MS123,125 INNER,T=1.0 |
4 | ||
| 47449-30030 |
MS123,125 OUTER,T=0.8 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-22010 |
MS123;MS122,125..ROY |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MS123;MS122,125..ROY |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-22030 |
MS123,125 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22030 |
MS123,125 |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-22020 |
MS123,125 |
2 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
MS123,125 |
2 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 94115-51600 | ||||
| 94511-01600 | ||||
(8308- )MS123,125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

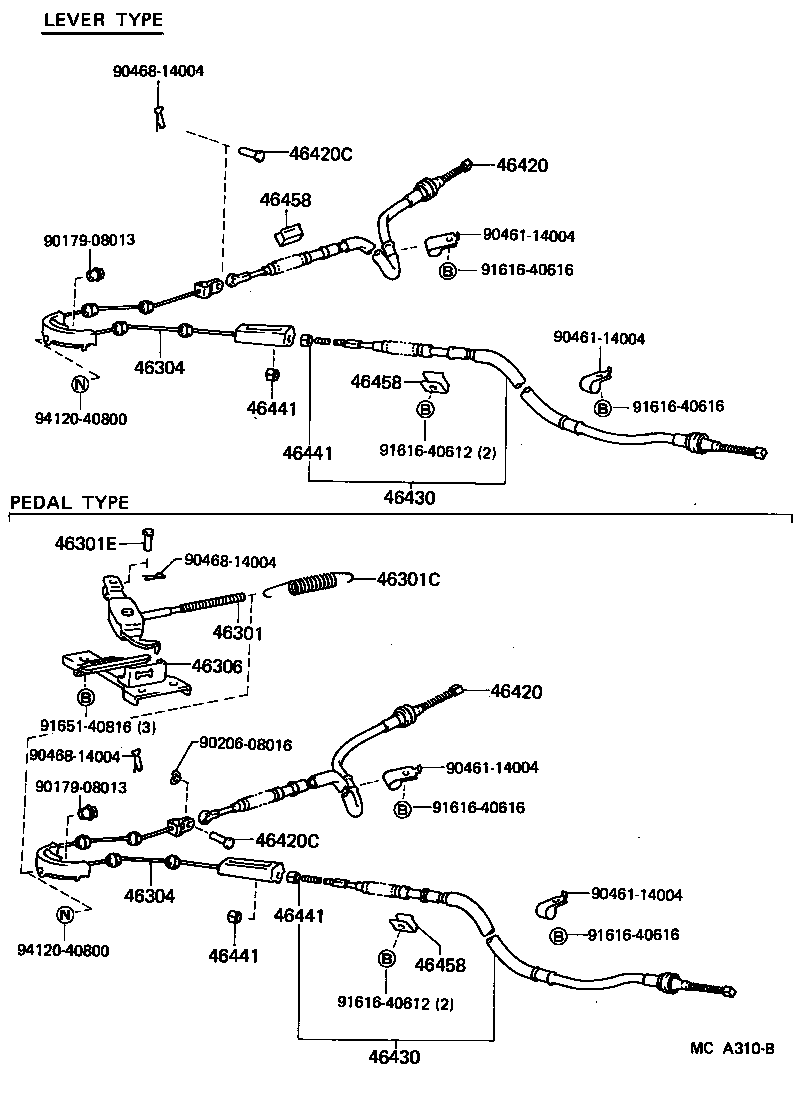

| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-30040 |
MS123,125 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-30040 |
MS123,125 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30230 |
MS123,125 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30230 |
MS123,125 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LS120,MS12#,YS120 |
2 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LS120,MS12#,YS120 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30010 |
MS123,125 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30010 |
MS123,125 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
MS123 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
MS123 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
MS123 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30030 |
MS123 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
MS123,125 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
MS123,125 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
MS123,125 |
2 | ||
| Common parts | ||||
| 90179-08013 | ||||
| 90206-08016 | ||||
| 90461-14004 | ||||
| 90468-14004 | ||||
| 91616-40612 | ||||
| 91616-40616 | ||||
| 91651-40816 | ||||
| 94120-40800 | ||||
(8308- )MS123..LHD..GEN ; (8308- )MS122,125..LHD..4FC ; (8308- )MS123..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

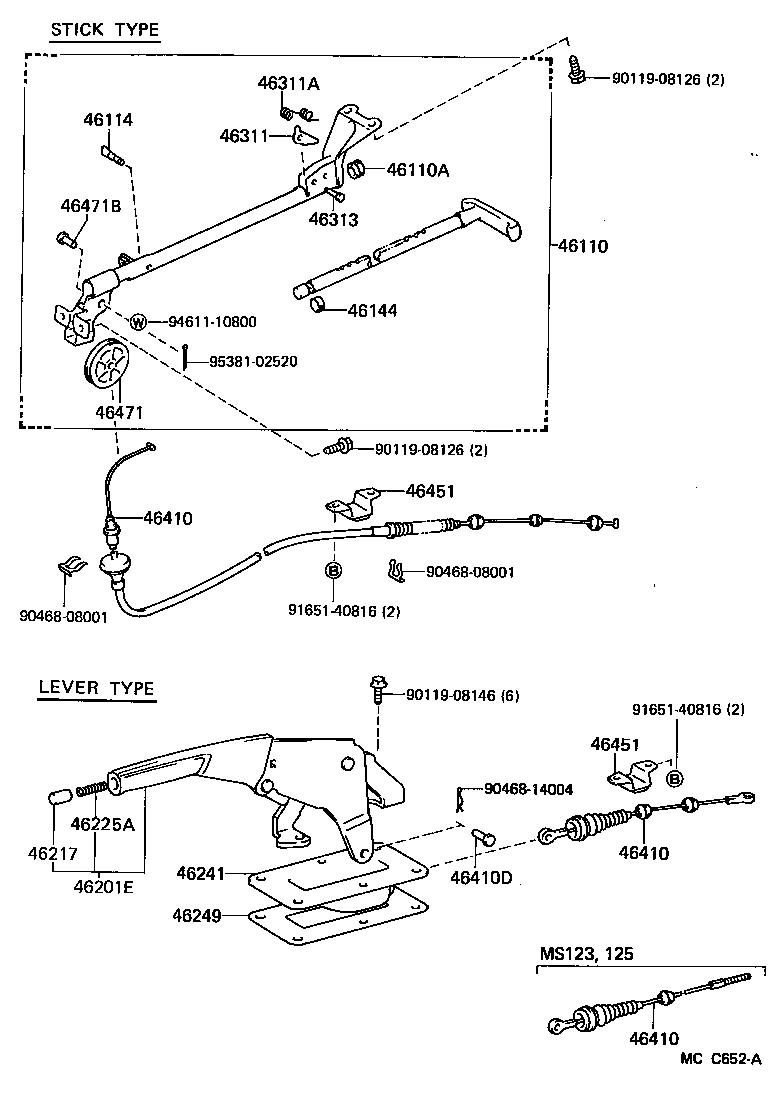

| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3008004 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ BLUE,BLUE,TRIM8# |
1 | ||
| 46201-3008005 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ BEIGE,BEIGE,TRIM4# |
1 | ||
| 46201-3008002 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002015 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217-1002014 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ BLUE,BLUE,TRIM8# |
1 | ||
| 46217-1002022 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10085 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-30010 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-30010 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30310 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30310 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30310 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
MS125..LHD;MS123..LHD..GEN;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30080 |
MS125..LHD;MS123..LHD..GEN;LS120,MS122,YS120;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30080 |
MS125..LHD;MS123..LHD..GEN;LS120,MS122,YS120;MS123..ARL,EUG,SAA,SWZ |
1 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90119-08146 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91651-40816 | ||||
| 94611-10800 | ||||
| 95381-02520 | ||||
