MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4FC..ROY

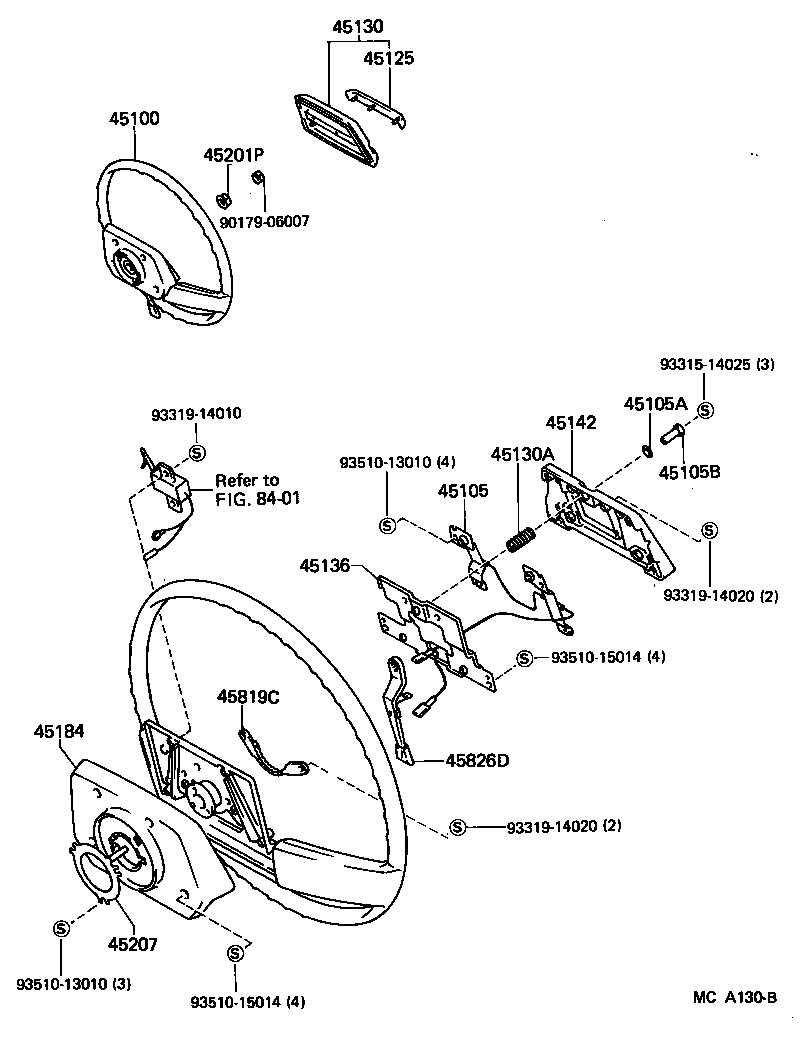

Click highlighted areas on diagram

diagram 45100 45105 45105A 45105B 45125 45130 45130A 45136 45142 45184 45201P 45207 45819C 45826D 8401 9017906007 9331514025 9331914010 9331914020 9331914020 9351013010 9351013010 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3027005

MS12#..4FC..ROY

BEIGE,BEIGE,TRIM4#

 1
45100-3027004

MS12#..4FC..ROY

BLUE,BLUE,TRIM8#

 1
45100-3027002

MS12#..4FC..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
45100-3028002

MS123,125..4FC..ROY

W/CRUISE CONTROL,DEEP MAROON,RED/MAROON,TRIM3#

 1
45100-3028005

MS123,125..4FC..ROY

W/CRUISE CONTROL,BEIGE,BEIGE,TRIM4#

 1
45100-3028004

MS123,125..4FC..ROY

W/CRUISE CONTROL,BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30080

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08006

YS120..LHD;LS120,MS12#

 3
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04006

YS120..LHD;LS120,MS12#

 3
45125 - MARK, STEERING WHEEL PAD
45125-3020005

MS12#;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45125-3021005

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,BEIGE,BEIGE,TRIM4#

 1
45125-3021002

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,DEEP MAROON,RED/MAROON,TRIM3#

 1
45125-3020002

LS120,MS12#,YS120..ROY,SAL

DEEP MAROON,RED/MAROON,TRIM3#

 1
45125-3020004

YS120..LHD;LS120,MS12#..SED

BLUE,BLUE,TRIM8#

 1
45125-3021004

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,BLUE,BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-3021002

LS120,MS12#,YS120..ROY,SAL

W/POWER STEERING,DEEP MAROON,RED/MAROON,TRIM3#

 1
45130-3021004

LS120,MS12#..SED

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3022002

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,DEEP MAROON,RED/MAROON,TRIM3#

 1
45130-3021005

MS12#;YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45130-3022005

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,BEIGE,BEIGE,TRIM4#

 1
45130-3022004

MS123,125..ARL,EUG,GEN,SAA

W/CRUISE CONTROL,BLUE,BLUE,TRIM8#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10040

YS120..LHD;LS120,MS12#

 3
45136 - PLATE, HORN BUTTON CONTACT
45136-30130

YS120..LHD;LS120,MS12#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-30060

YS120..LHD;LS120,MS12#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-3009002

MS123,125..4FC..ROY

W/CRUISE CONTROL,DEEP MAROON,RED/MAROON,TRIM3#

 1
45184-3008002

MS12#..4FC..ROY

DEEP MAROON,RED/MAROON,TRIM3#

 1
45184-3008005

MS12#..4FC..ROY

BEIGE,BEIGE,TRIM4#

 1
45184-3009005

MS123,125..4FC..ROY

W/CRUISE CONTROL,BEIGE,BEIGE,TRIM4#

 1
45184-3008004

MS12#..4FC..ROY

BLUE,BLUE,TRIM8#

 1
45184-3009004

MS123,125..4FC..ROY

W/CRUISE CONTROL,BLUE,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC

 1
90179-14014

LS120,MS12#,YS120..(4FC,5F)..(ROY,SAL)

 1
45207 - RING, HORN CONTACT
45176-14050

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45819C - RETAINER, TELESCOPIC LEVER
45819-30030

MS12#..4FC..ROY

 1
45826D - LEVER, STEERING TELESCOPIC
45826-30040

MS12#..4FC..ROY

 1
Common parts
90179-06007
93315-14025
93319-14010
93319-14020
93510-13010
93510-15014
Linked diagrams
8401
