MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS123,125..LHD..EUG,GEN,SAA

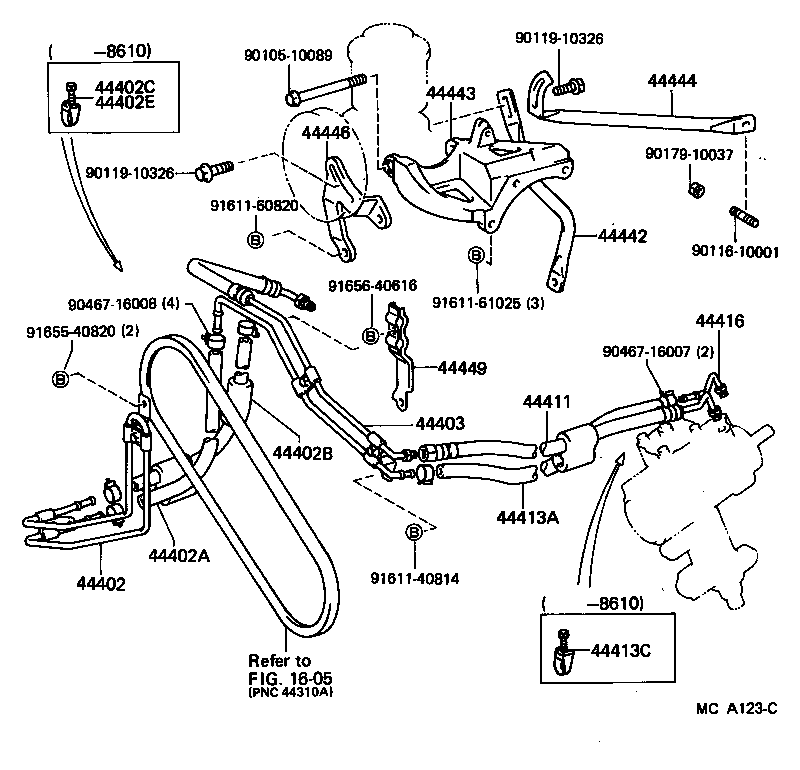

Click highlighted areas on diagram

diagram 1605 44402 44402A 44402B 44402C 44402E 44403 44411 44413A 44413C 44416 44442 44443 44444 44446 44449 9010510089 9011610001 9011910326 9011910326 9017910037 9046716007 9046716008 9161140814 9161160820 9161161025 9165540820 9165640616
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30090

MS12#..LHD..(EUG,GEN,SAA)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90447-18019

MS12#..LHD..(EUG,GEN,SAA)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18007

MS123,125..LHD..(EUG,GEN,SAA)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MS12#..LHD..(EUG,GEN,SAA)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MS12#..LHD..(EUG,GEN,SAA)

 2
44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1
44403-30030

MS123,125..LHD..(EUG,GEN,SAA)

 1
44411 - HOSE, PRESSURE FEED
44411-30310

MS12#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18120

MS12#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

MS12#..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30070

LS120,MS12#,YS120..LHD

 1
44442 - BRACKET, PUMP, REAR
44442-24020

MS123,125..EUG,GEN,SAA

 1
44443 - BRACKET, PUMP
44443-24010

MS123,125..EUG,GEN,SAA

 1
44444 - STAY, PUMP, REAR
44444-24010

MS123,125..EUG,GEN,SAA

 1
44446 - STRUT, ADJUSTING
44446-24010

MS123,125..EUG,GEN,SAA

 1
44449 - BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
44449-30060

MS123,125..LHD..(EUG,GEN,SAA)

 1
Common parts
90105-10089
90116-10001
90119-10326
90179-10037
90467-16007
90467-16008
91611-40814
91611-60820
91611-61025
91655-40820
91656-40616
Linked diagrams
1605
