MS123L-SEPQF (1983)
Toyota Crown
Production
Aug 1983
-
Oct 1984
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )MS122,123..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22040 |
MS122,123..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-40010 |
MS122,123..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
MS12#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
MS122,123..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
MS122,123..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
MS122,123..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
MS122,123..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
MS12#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
MS122,123..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
MS122,123..ATM |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-22040 |
MS122,123..ATM |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-22020 |
MS122,123..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-16010 |
MS12#..ATM |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

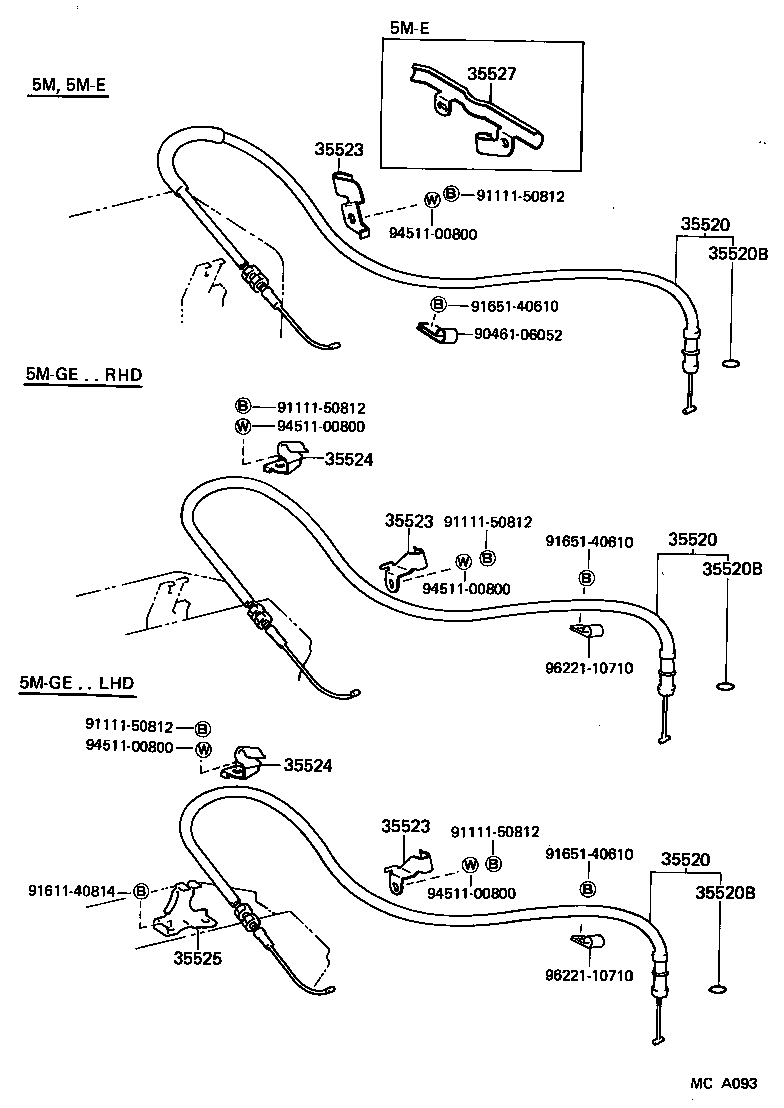

(8308- )MS122,123..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24020 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24020 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-24020 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
MS12#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
MS12#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
MS12#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-24010 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-24010 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-24010 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35524-30010 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35524-30010 |
MS123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-14041 |
MS123,125..LHD..4FC..(EUG,GEN,SAA) |
1 | ||
| Common parts | ||||
| 90461-06052 | ||||
| 91111-50812 | ||||
| 91611-40814 | ||||
| 91651-40610 | ||||
| 94511-00800 | ||||
| 96221-10710 | ||||
