MS123L-SEPQF (1983)
Toyota Crown
Production
Aug 1983
-
Oct 1984
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )MS122,123..ATM

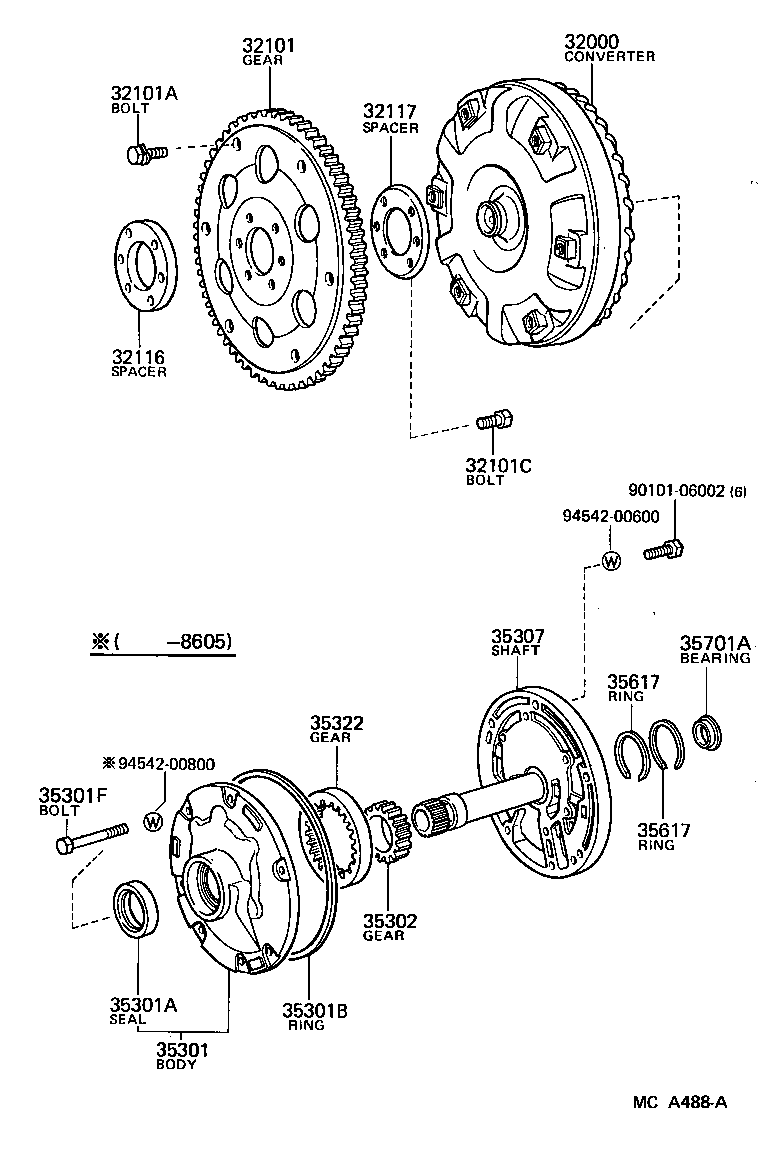

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-14070 |
MS12#..ATM..(EUG,GEN,SAA) |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-30040 |
MS12#..ATM |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08107 |
MS12#..ATM *8-1.25PX12-8.4,OLIVE GREEN |
1 | ||
| 91611-60812 |
MS12#..ATM *8-1.25PX12-7,YELLOW |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10037 |
MS12#..ATM *10-1.25PX18-12 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-30011 |
MS12#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30011 |
MS12#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-14010 |
MS122,123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38129 |
MS12#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
MS122,123..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90101-08042 |
MS122,123..ATM |
7 | ||
| 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE | ||||
| 35321-14010 |
MS122,123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35370-14011 |
MS122,123..ATM..(EUG,GEN,SAA) |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-14010 |
MS122,123..ATM..(EUG,GEN,SAA) T=17.286-17.235 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-16010 |
MS122,123..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-16010 |
MS122,123..ATM |
2 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-25003 |
MS122,123..ATM |
1 | ||
| Common parts | ||||
| 90101-06002 | ||||
| 94542-00600 | ||||
| 94542-00800 | ||||
