MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8509)5M,5ME ; (8509- )5M

Click highlighted areas on diagram

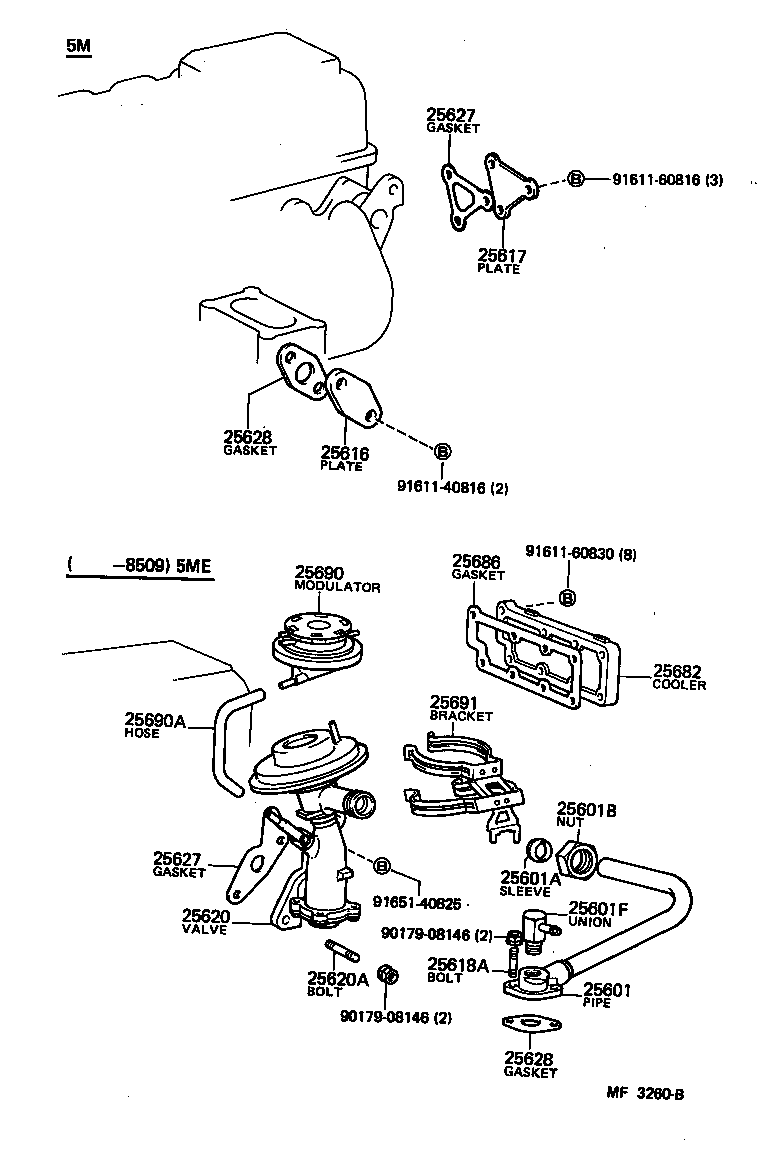

diagram 25601 25601A 25601B 25601F 25616 25617 25618A 25620 25620A 25627 25627 25628 25628 25682 25686 25690 25690A 25691 9017908146 9017908146 9161140816 9161160816 9161160830 9165140825
Part # Description Qty Price
25617 - PLATE, EGR HOLE COVER
25615-43020

5MGE,6MGE..MS123,125

HEAD

 1
25627 - GASKET, EGR VALVE
25627-43030

5MGE,6MGE..MS123,125

HEAD

 1
25627 - GASKET, EGR VALVE
25627-43030

5MGE,6MGE..MS123,125

HEAD

 1
Common parts
90179-08146
91611-40816
91611-60816
91611-60830
91651-40825

(8308- )5MGE,6MGE

Click highlighted areas on diagram

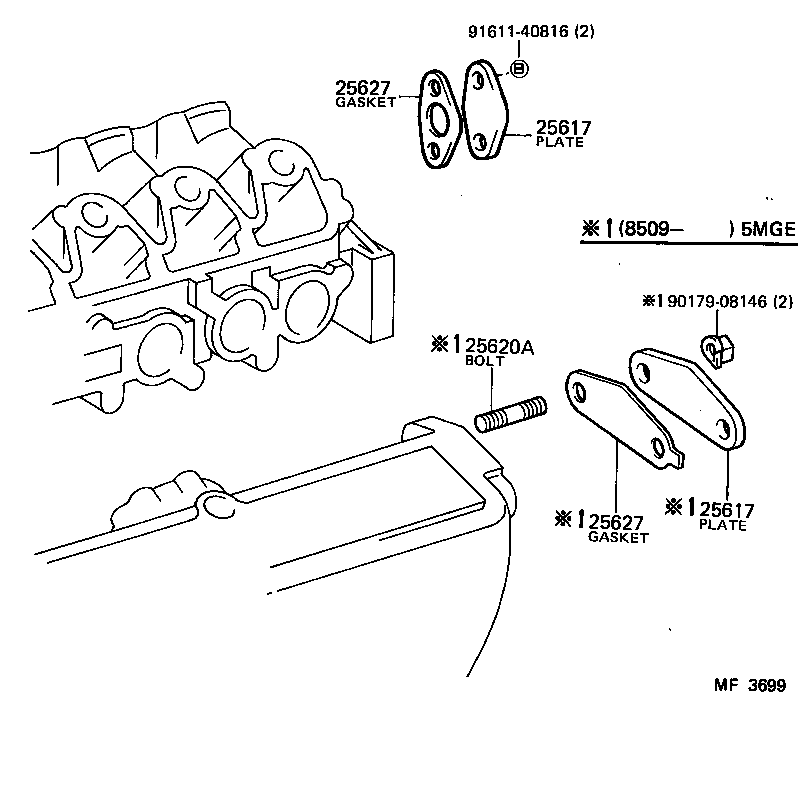

diagram 25617 25617 25620A 25627 25627 9017908146 9161140816
Part # Description Qty Price
25617 - PLATE, EGR HOLE COVER
25615-43020

5MGE,6MGE..MS123,125

HEAD

 1
25617 - PLATE, EGR HOLE COVER
25615-43020

5MGE,6MGE..MS123,125

HEAD

 1
25627 - GASKET, EGR VALVE
25627-43030

5MGE,6MGE..MS123,125

HEAD

 1
25627 - GASKET, EGR VALVE
25627-43030

5MGE,6MGE..MS123,125

HEAD

 1
Common parts
90179-08146
91611-40816
