MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5MGE,6MGE

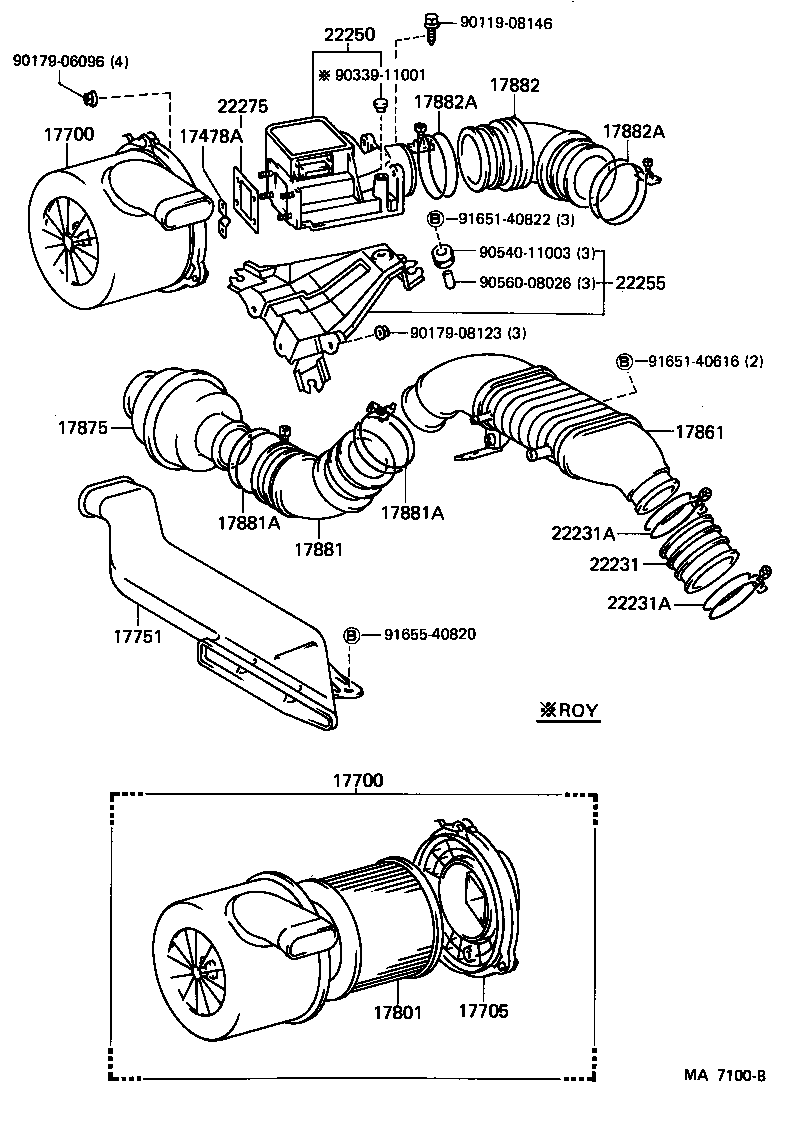

Click highlighted areas on diagram

diagram 17478A 17700 17700 17705 17751 17801 17861 17875 17881 17881A 17881A 17882 17882A 17882A 22231 22231A 22231A 22250 22255 22275 9011908146 9017906096 9017908123 9033911001 9054011003 9056008026 9165140616 9165140822 9165540820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-43090

5MGE..MS123

 1
17700 - CLEANER ASSY, AIR
17700-43090

5MGE..MS123

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43050

5MGE,6MGE..MS123,125

 1
17751 - INLET, AIR CLEANER, NO.1
53299-30120

5ME,5MGE..MS123

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

5ME,5MGE,6MGE..MS12#

 1
17861 - CONNECTOR, INTAKE AIR
17860-43020

5MGE,6MGE..MS123,125

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-43060

5MGE,6MGE..MS123,125

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-43060

5MGE,6MGE..MS123,125

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

5MGE,6MGE..MS123,125

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

5MGE,6MGE..MS123,125

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-43080

5MGE,6MGE..MS123,125

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5MGE,6MGE..MS123,125

PIPE SIDE

 1
96111-10900

5MGE,6MGE..MS123,125

AIR FLOW METER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10830

5MGE,6MGE..MS123,125

PIPE SIDE

 1
96111-10900

5MGE,6MGE..MS123,125

AIR FLOW METER SIDE

 1
22231 - HOSE, THROTTLE BODY
22231-43010

5MGE,6MGE..MS123,125

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5MGE,6MGE..MS123,125

 2
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

5MGE,6MGE..MS123,125

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-43210

5MGE..MS123..ROY

 1
22255 - BRACKET, AIR FLOW METER
22209-43020

5MGE,6MGE..MS123,125

 1
22275 - GASKET, AIR FLOW METER
22275-43010

5MGE,6MGE..MS123,125

 1
Common parts
90119-08146
90179-06096
90179-08123
90339-11001
90540-11003
90560-08026
91651-40616
91651-40822
91655-40820

(8308- )5M

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700F 17705 17801 17841 17841 17845 17848 21071C 9011608037 9017908123 9044511015
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-43090

5MGE..MS123

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43050

5MGE,6MGE..MS123,125

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

5ME,5MGE,6MGE..MS12#

 1
Common parts
90116-08037
90179-08123
90445-11015
Linked diagrams
1709

(8308- )5M

Click highlighted areas on diagram

diagram 17061 1709 17700 17700A 17700F 17705 17801 17841 17841 17845 17848 17881 21071C 9011608037 9017908123 9044511031 9541119960
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-43090

5MGE..MS123

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-43050

5MGE,6MGE..MS123,125

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41110

5ME,5MGE,6MGE..MS12#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-43060

5MGE,6MGE..MS123,125

 1
Common parts
90116-08037
90179-08123
90445-11031
95411-19960
Linked diagrams
1709
