MS123L-SEPQF (1983)

Toyota Crown

Production Aug 1983 - Oct 1984
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5M

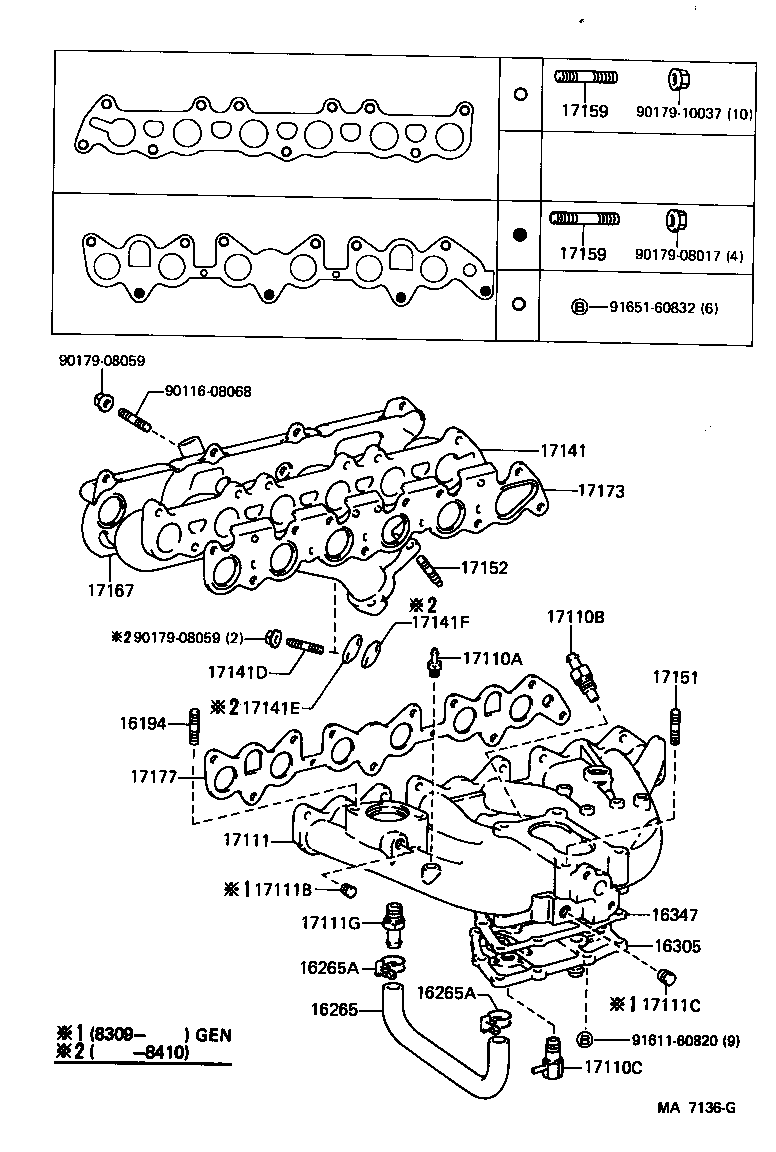

Click highlighted areas on diagram

diagram 16194 16265 16265A 16265A 16305 16347 17110A 17110B 17110C 17111 17111B 17111C 17111G 17141 17141D 17141E 17141F 17151 17152 17159 17159 17167 17173 17177 9011608068 9017908017 9017908059 9017908059 9017910037 9161160820 9165160832
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

5M,5ME..MS122,123

L=34,S=16&11

 2
17111 - MANIFOLD, INTAKE
17111-43020

5MGE,6MGE..MS123,125

 1
17141 - MANIFOLD, EXHAUST
17141-41070

5M,5ME..MS12#

 1
17141-43010

5MGE,6MGE..MS123,125

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08168

5M#..MS12#

L=36,S=17&8

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

5M#..MS12#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-30010

5M#..MS12#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

5M#,6MGE..MS12#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5M,5ME..MS122,123

INTAKE MANIFOLD SIDE

 4
90116-08201

5MGE,6MGE..MS123,125

INTAKE MANIFOLD

 2
90116-10025

5M#,6MGE..MS12#

EXHAUST MANIFOLD,UPR

 7
90116-10024

5M,5ME..MS122,123

EXHAUST MANIFOLD,LWR

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5M,5ME..MS122,123

INTAKE MANIFOLD SIDE

 4
90116-08201

5MGE,6MGE..MS123,125

INTAKE MANIFOLD

 2
90116-10025

5M#,6MGE..MS12#

EXHAUST MANIFOLD,UPR

 7
90116-10024

5M,5ME..MS122,123

EXHAUST MANIFOLD,LWR

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-43010

5MGE,6MGE..MS123,125

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-43020

5MGE,6MGE..MS123,125

 1
17173-45030

5M,5ME..MS122,123

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-43010

5MGE,6MGE..MS123,125

 1
Common parts
90116-08068
90179-08017
90179-08059
90179-10037
91611-60820
91651-60832

(8308-8509)5MGE,6MGE ; (8509- )6MGE

Click highlighted areas on diagram

diagram 17111 17125 17129 17129F 17129J 17141 17141D 17141E 17141F 17152 17159 17159 17167 17168 17173 17176 17177 17361A 9011608068 9011608201 9011910062 9017908017 9017908059 9017908059 9017908146 9017910037 9025311001 9161160825 9165160830
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-43020

5MGE,6MGE..MS123,125

 1
17125 - STAY, SURGE TANK, NO.1
17125-43011

5MGE,6MGE..MS123,125

 1
17129 - TANK, INTAKE AIR SURGE
17109-43040

5MGE,6MGE..MS123,125

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90072-34107

5MGE,6MGE..MS123,125

 1
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-13000

5MGE,6MGE..MS123,125

OD=30

 1
17141 - MANIFOLD, EXHAUST
17141-41070

5M,5ME..MS12#

 1
17141-43010

5MGE,6MGE..MS123,125

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08168

5M#..MS12#

L=36,S=17&8

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

5M#..MS12#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-30010

5M#..MS12#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

5M#,6MGE..MS12#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5M,5ME..MS122,123

INTAKE MANIFOLD SIDE

 4
90116-08201

5MGE,6MGE..MS123,125

INTAKE MANIFOLD

 2
90116-10025

5M#,6MGE..MS12#

EXHAUST MANIFOLD,UPR

 7
90116-10024

5M,5ME..MS122,123

EXHAUST MANIFOLD,LWR

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08020

5M,5ME..MS122,123

INTAKE MANIFOLD SIDE

 4
90116-08201

5MGE,6MGE..MS123,125

INTAKE MANIFOLD

 2
90116-10025

5M#,6MGE..MS12#

EXHAUST MANIFOLD,UPR

 7
90116-10024

5M,5ME..MS122,123

EXHAUST MANIFOLD,LWR

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-43010

5MGE,6MGE..MS123,125

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-43010

5MGE,6MGE..MS123,125

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-43020

5MGE,6MGE..MS123,125

 1
17173-45030

5M,5ME..MS122,123

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-43020

5MGE,6MGE..MS123,125

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-43010

5MGE,6MGE..MS123,125

 1
17361A - TUBE, AIR(FOR EFI)
17361-43010

5MGE,6MGE..MS123,125

 1
Common parts
90116-08068
90116-08201
90119-10062
90179-08017
90179-08059
90179-08146
90179-10037
90253-11001
91611-60825
91651-60830
